General: Only one clamp is needed for different kind of jobs. Also the same clamp can be used if a big jaw opening is necessary. For lifting and moving of steel plates and structures from all positions. Jaw opening from 0 - 95 mm. Adjustable by steps of 30 mm. Capacity 3,000 kg. Strong and lightweight construction.
Minimum WLL is 10% of the maximum WLL.

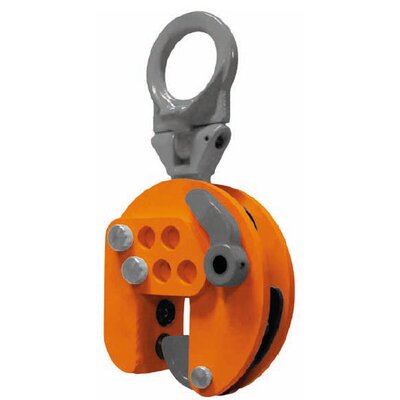

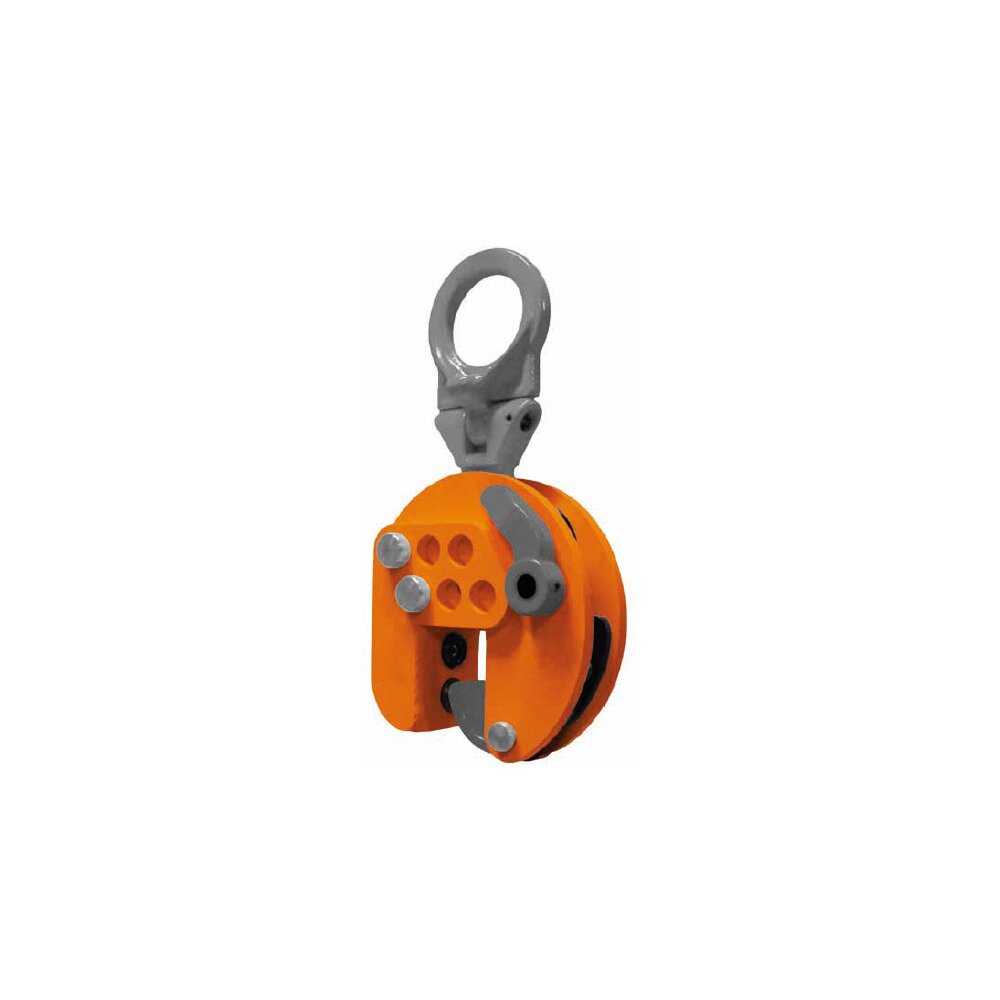

      Product Image 1

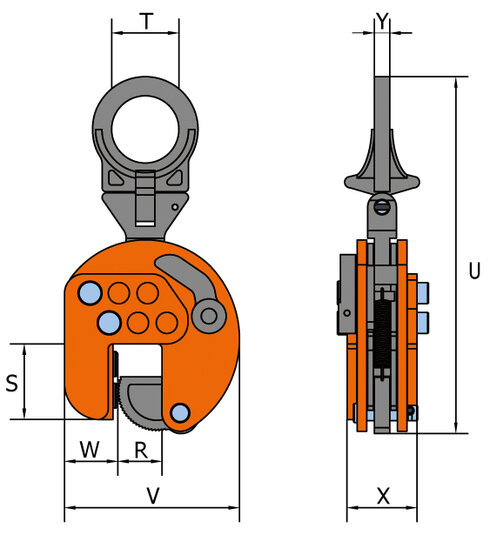

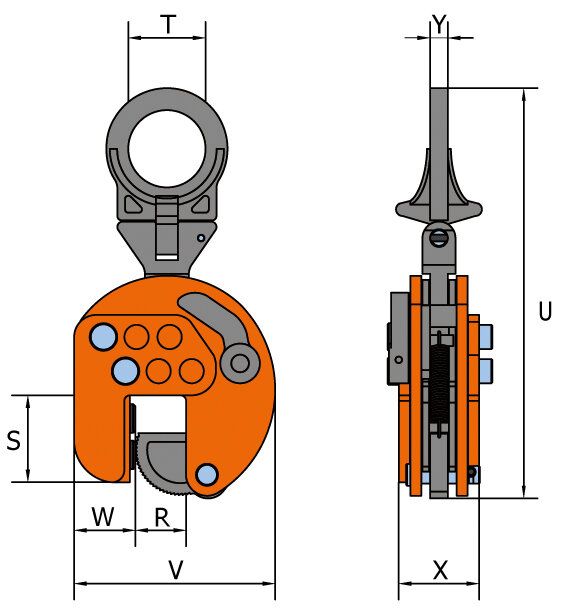

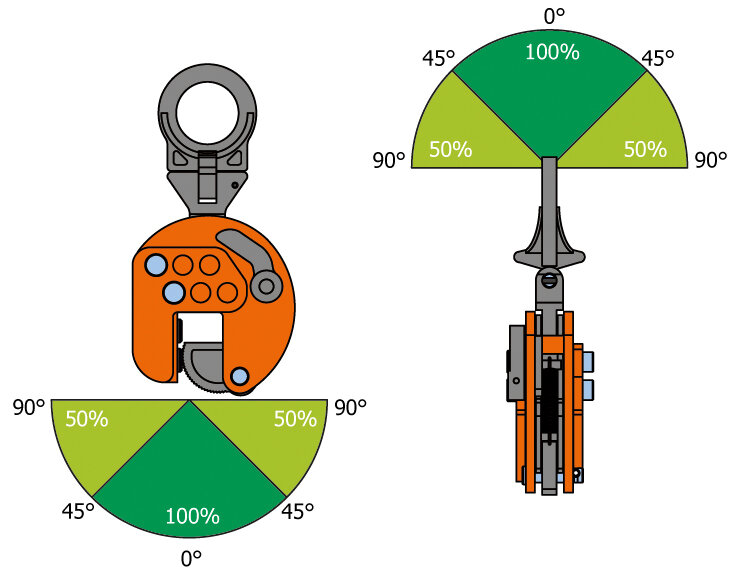

      Pewag VEUW-A drawing Pewag VEUW-A load diagram
      Select a row from the table below, then click the add to quote button
      Part Code Code WLL
      ton
      Jaw width
      mm
      X
      mm
      Y
      mm
      S
      mm
      T
      mm
      U
      mm
      V
      mm
      W
      mm
      Weight
      kg
      CAD
      16.01VEUW-A3t VEUW-A 3 t 3 0-95 77 16 79 70 373 183-243 51 10 -
