General: Clamp-version with moveable lifting shackle for lifting and moving steel plates and structures from all positions (horizontal, vertical and sidelong). VUW/VEUW/SVUW Lifting clamps are equipped with a safety mechanism, ensuring the clamp does not slip when lifting force is applied and when load is being lowered. The clamp is locked in closed as well as in open position. Lifting capacity and jaw openings are clearly engraved in the body.
Minimum WLL is 10% of the maximum WLL.

Product Image 1

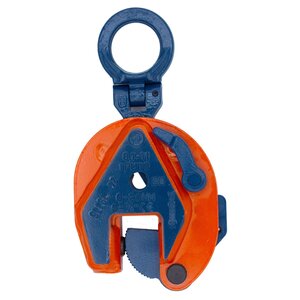

Pewag VUW VEUW SVUW drawing Pewag VUW VEUW SVUW load diagram Pewag VUW VEUW SVUW load
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw width
mm
X
mm
Y
mm
S
mm
T
mm
U
mm
V
mm
W
mm
Weight
kg
CAD
16.01VUW0.75t VUW 0.75 t 0,75 0-13 37 10 47 30 203 100 37 1,8
16.01VEUW1t VEUW 1 t 1 0-25 47 15 56 50 292 141 37 3,8
16.01VEUW2t VEUW 2 t 2 0-35 56 16 78 70 372 183 56 8
16.01VEUW3t VEUW 3 t 3 0-35 56 16 78 70 372 183 56 8
16.01VEUW4.5t VEUW 4.5 t 4,5 0-45 78 20 85 70 431 228 60 16,5
16.01VUW4.5t VUW 4.5 t 4,5 0-25 77 20 85 70 429 203 60 16
16.01VEUW6t VEUW 6 t 6 0-50 78 32 114 78 527 259 82 24
16.01VUW6t VUW 6 t 6 0-32 78 32 114 78 528 225 78 22
16.01VEUW7.5t VEUW 7.5 t 7,5 0-55 86 32 111 78 560 267 70 28
16.01VUW7.5t VUW 7.5 t 7,5 0-40 82 32 111 78 567 246 76 27
16.01VUW9t VUW 9 t 9 0-55 86 32 111 78 560 267 70 29
16.01VUW12t VUW 12 t 12 0-52 94 48 148 85 648 295 100 41
16.01VUW15t VUW 15 t 15 0-76 106 48 209 85 816 373 136 73
16.01VUW17t VUW 17 t 17 0-76 106 48 209 85 816 373 136 74
16.01VUW20t VUW 20 t 20 0-80 140 71 250 100 948 563 153 160
16.01VUW25t VUW 25 t 25 5-85 140 71 250 100 948 563 148 160
16.01VUW30t VUW 30 t 30 10-90 142 71 250 100 944 568 153 167
