General: For lifting and moving of stainless steel plates and structures a VUW-R lifting clamp is available. Pivot and cam are made of stainless steel. Body and lock lever are nickel plated to prevent corrosion due to carbon contamination.
Minimum WLL is 10% of the maximum WLL.

Product Image 1

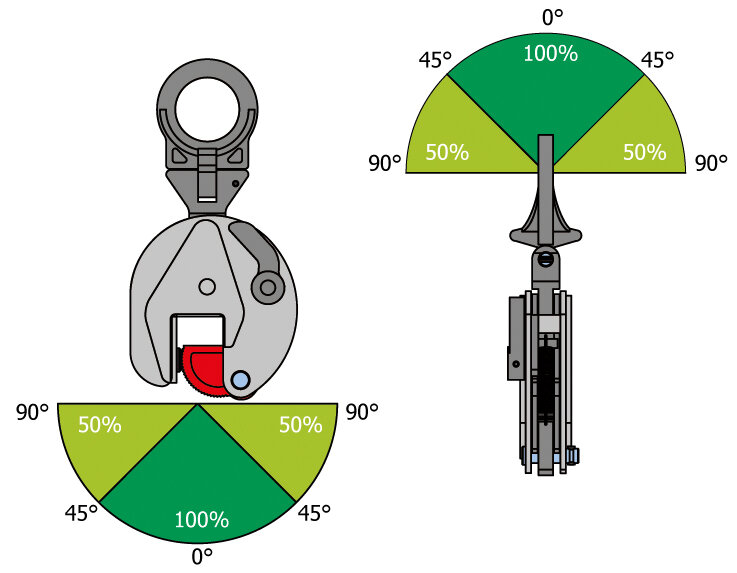

Pewag VCW-R VCEW-R VUW-R VEUW-R drawing Pewag VCW-R VCEW-R VUW-R VEUW-R load diagram
Select a row from the table below, then click the add to quote button
Part Code Code WLL
ton
Jaw width
mm
X
mm
Y
mm
S
mm
T
mm
U
mm
V
mm
W
mm
Weight
kg
CAD
16.01VCW-R0.75t VCW-R 0.75 t 0,75 0-13 37 10 47 30 202 100 37 1,7
16.01VUW-R0.75t VUW-R 0.75 t 0,75 0-13 37 10 47 30 203 100 37
16.01VCEW-R1t VCEW-R 1 t 1 0-25 47 15 56 45 263 141 37 3,5
16.01VEUW-R1t VEUW-R 1 t 1 0-25 47 15 56 50 292 141 37 3,8
16.01VCEW-R2t VCEW-R 2 t 2 0-35 56 16 78 64 336 183 56 7
16.01VEUW-R2t VEUW-R 2 t 2 0-35 56 16 78 70 372 183 56 8
16.01VUW-R2t VUW-R 2 t 2 0-20 56 16 78 70 370 165 54 7
16.01VCEW-R3t VCEW-R 3 t 3 0-35 56 16 78 64 336 183 56 7
16.01VEUW-R3t VEUW-R 3 t 3 0-35 56 16 78 70 372 183 56 8
16.01VCEW-R4.5t VCEW-R 4.5 t 4,5 0-45 78 20 85 70 425 228 60 16
16.01VEUW-R4.5t VEUW-R 4.5 t 4,5 0-45 78 20 85 70 431 228 60 16,5
16.01VCEW-R6t VCEW-R 6 t 6 0-45 78 20 114 75 490 259 82 21
16.01VEUW-R 6 t VEUW-R 6 t 6 0-50 78 32 114 78 527 259 82 24
16.01VCEW-R7.5t VCEW-R 7.5 t 7,5 0-55 86 20 111 75 522 267 70 26
16.01VEUW-R7.5t VEUW-R 7.5 t 7,5 0-55 86 32 111 78 560 267 70 28
