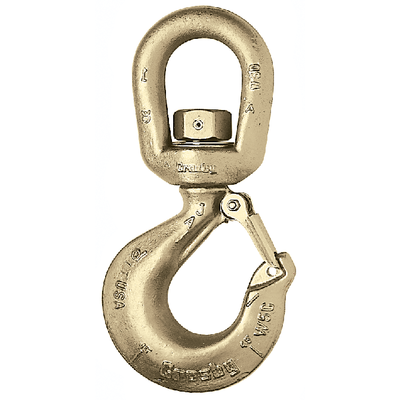

Swivel hook Crosby L-322 AN, alloy steel swivel

Home / Products / Chains & components / Chain hooks / Swivel hook Crosby L-322 AN

Features:

Hoist hooks incorporate markings forged into the product which address two (2) QUIC-CHECK®
Deformation Indicators -- Two strategically placed marks, one just below the shank or eye and the other on the hook tip, which allows for a QUIC-CHECK® measurement to determine if the throat opening has changed, thus indicating abuse or overload.
Angle Indicators — Indicates the maximum included angle which is allowed between two (2) sling legs in the hook. These indicators also provide the opportunity to approximate other included angles between two sling legs.

Material: Alloy steel
Marking: CE-marked
Note: This hook is a positioning device and is not intended to rotate under load.

Safety factor: 4:1
Grade: 8

Swivel hook Crosby L-322 AN

Select a row from the table below, then click the add to quote button

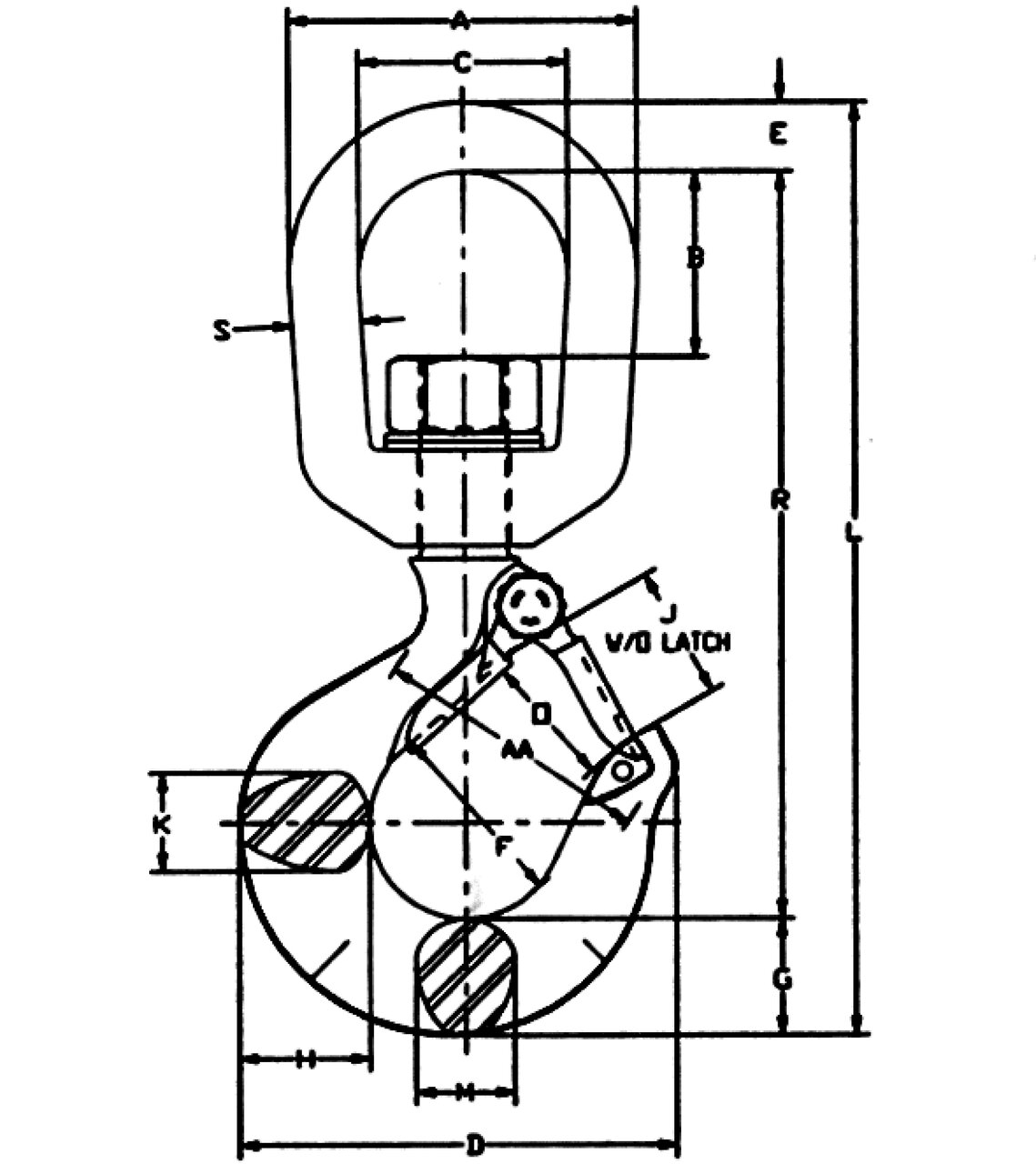

Part Code	WLL ton	A mm	B mm	C mm	D mm	F mm	G mm	H mm	L mm	O* mm	R mm	S mm	AA** mm	Weight kg	CAD
11.101048807	1,25	51	20,8	31,8	72,5	31,8	18,5	20,6	144	23,6	116	9,65	38,1	0,34
11.101048816	1,6	63,5	33,3	38,1	80	35,1	21,3	23,9	170	24,6	136	12,7	50,8	0,57
11.101048825	2,5	76	38,1	44,5	91	38,1	25,4	29,5	187	26,9	155	16	50,8	1,02
11.101048834	3,2	76	38,1	44,5	102	41,1	28,7	33,3	210	29,5	165	16	50,8	1,04
11.101048840	5,4	89	41,7	50,8	123	51	36,6	41,4	246	35,8	191	19,1	63,5	2,25
11.101048859	8	116	58	63,5	160	63,5	46	52,5	317	42,9	245	25,4	76,2	4,67
11.101048868	11,5	127	62	70	192	76	57	67	375	56,5	289	28,7	101	8,8	-
11.101048880	16	143	63	79	212	82,5	66	74,5	417	61	311	31,8	101	10,5	-
11.101048889	22	180	95,5	104	263	108	76	89	542	81	424	38,1	127	21,3	-
11.101025688	31,5	180	95,5	104	346	127	93	118	590	82,6	459	38,1	165	32	-

Standard Proof load is 2.5 times WLL .
* Dimension for standard latch kit S-4320 except 31.5 t hook with dimension for latch kit PL
** Deform indicators

31.5 t hook - standard only avaiable with latch kit PL and proofload 2 times WLL.

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

To download CAD files, you must provide a valid e-mail address

Fetching the CAD file...
