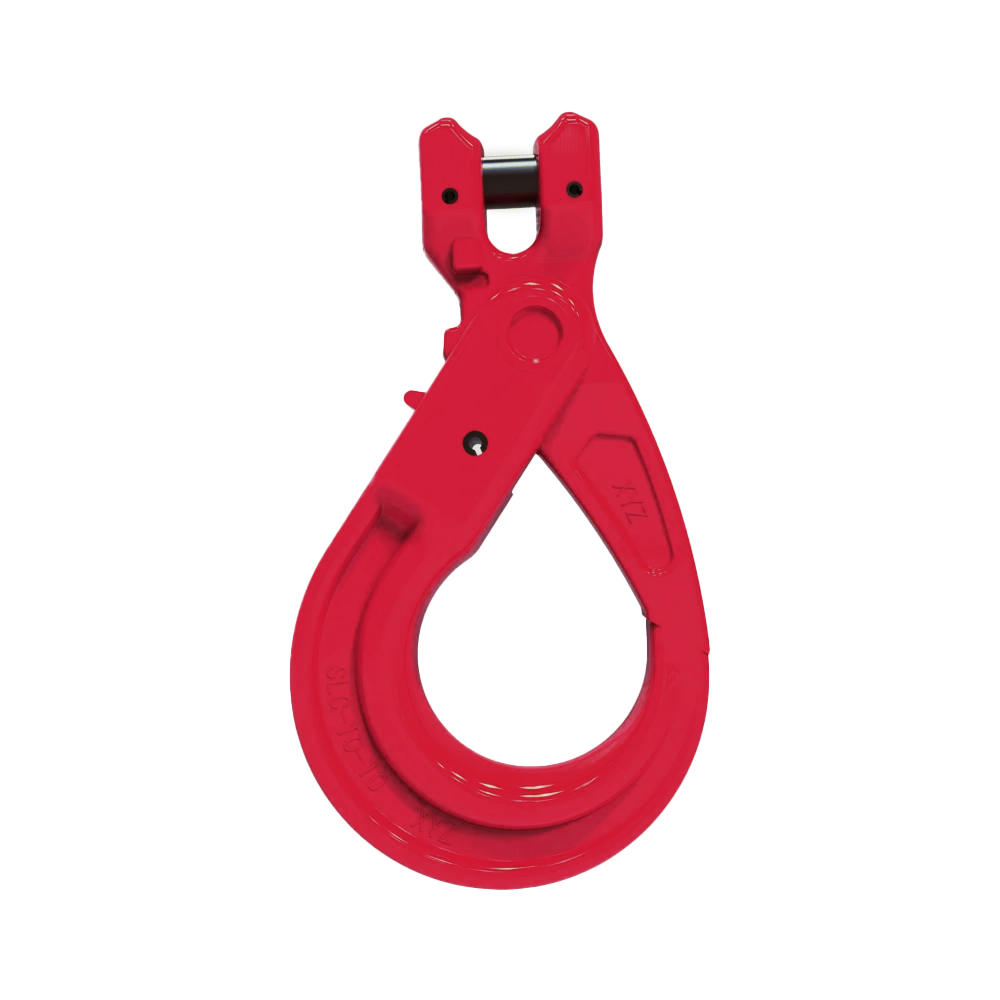

The POWERTEX G10 Self-Locking Hook SLC with Clevis is a Grade 100 lifting hook designed for direct connection to Grade 100 chain sling assemblies where a secure connection to the load is essential. The automatic self-locking mechanism closes and locks when the hook is loaded, while the rear release lever allows controlled opening during load attachment and removal.
Available for chain sizes from 6 mm to 22 mm with WLLs from 1.4 t to 19 t.
Also available with an eye connection as the POWERTEX G10 Self-Locking Hook SL.
Best used for
- Grade 100 chain sling assemblies requiring a direct clevis connection and secure self-locking hook.
Powertex G10 Range benefits:
- Automatic self-locking mechanism secures the load during lifting.
- Rear release lever allows controlled opening for load attachment and removal.
- Clevis connection enables direct attachment to Grade 100 lifting chain.
- Grade 100 design offers 25% higher WLL than traditional Grade 80 components.
- Conforms to EN 1677 Parts 1, 2, 3 and 4 with a 25% higher WLL.
- Every forged component is crack detection tested. Production samples are proof-load tested, and the design is factory type tested.
- Fatigue tested to 20,000 cycles at 1.5 × WLL with batch traceability and a POWERTEX 2.2 certificate.
- Chromium 6 free finish with replacement spare parts available to support long service life.
- Marking: According to standard, POWERTEX + Model (SLC-6-10) + traceability code.
- Temperature range: -40°C up to +200°C without reduction in WLL
- Finish: Powder painted in red
- Standard: EN 1677-3 (+ 25% WLL), AS 3776
- Safety factor: 4:1
- Grade: 10
