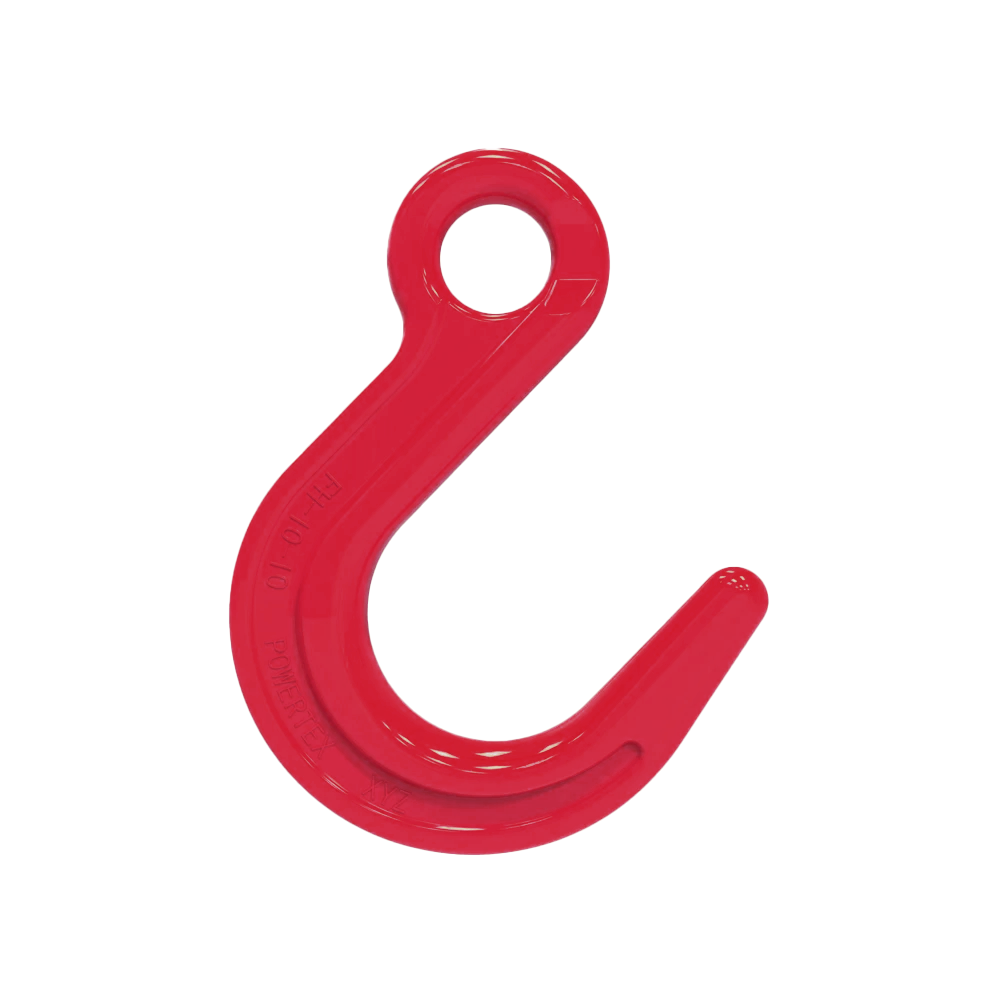

The POWERTEX G10 Foundry Hook FH is a Grade 100 lifting hook designed for chain sling assemblies where a wide throat opening is required. Its open hook design provides greater clearance for engaging large attachment points or loads that standard sling hooks cannot accommodate.
Available for chain sizes from 6 mm to 16 mm with WLLs from 1.4 t to 10 t.
Best used for
- Chain sling assemblies requiring a wide throat opening.
- Lifting applications with large attachment points or bulky loads
Product benefits
- Wide throat opening accommodates large lifting points and attachments.
- Open hook design simplifies engagement with bulky loads.
- Grade 100 design offers 25% higher WLL than traditional Grade 80 components.
- Conforms to EN 1677 Parts 1, 2, 3 and 4 with a 25% higher WLL.
- Every forged component is crack detection tested. Production samples are proof-load tested, and the design is factory type tested.
- Fatigue tested to 20,000 cycles at 1.5 × WLL with batch traceability and a POWERTEX 2.2 certificate.
- Chromium 6 free finish with replacement spare parts available to support long service life.
- Marking: According to standard, POWERTEX + Model (FH-6-10) + traceability code.
- Temperature range: -40°C up to +200°C without reduction in WLL
- Finish: Powder painted in red
- Standard: EN 1677-1 (+ 25% WLL), AS 3776
- Warning: Before using the hook, check whether hooks without safety latches are allowed to be used for the particular application.
- Safety factor: 4:1
- Grade: 10
