General: Only suitable for lifting and moving of steel beams and structures. The clamping force is evenly transferred to the jaws by means of a spindle. Can also be attached upside down and be used as a (temporary) lifting point. Has equal opening and closing of both jaws for simple and quick assembly. Lifting capacity and jaw opening are clearly engraved in the body.

Product Image 1

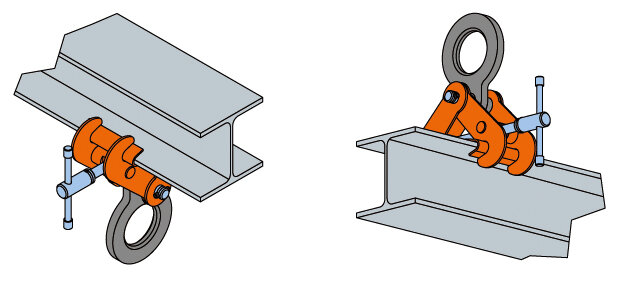

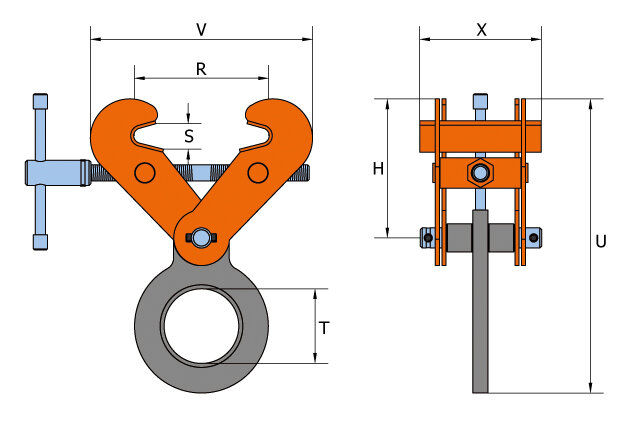

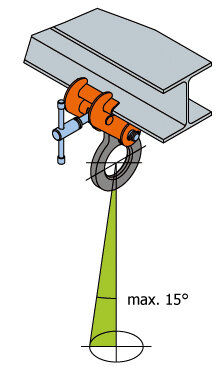

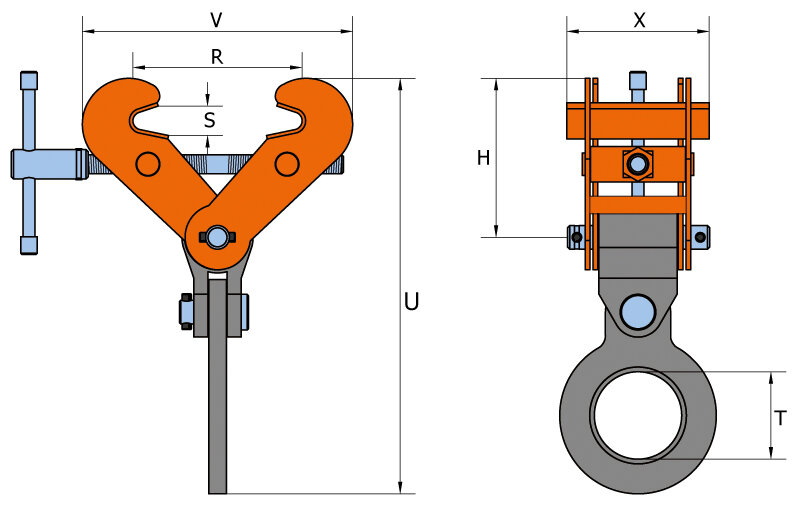

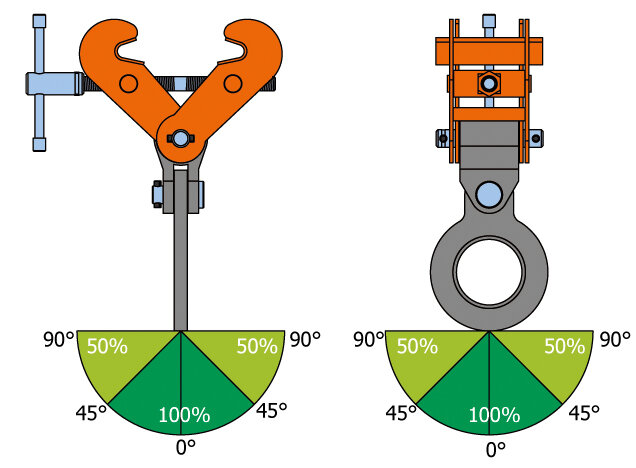

Pewag SVW SVSW drawing Pewag SVW SVSW load diagram Pewag SVW SVSW application drawing Pewag SVSUW drawing Pewag SVSUW load diagram
Select a row from the table below, then click the add to quote button
Part Code Code X
mm
Jaw opening R
mm
S
mm
T
mm
V max. U max. H
mm
Weight
kg
CAD
16.11SVW1t SVW 1 t 120 75-190 30 73,5 357 345 113-192 5
16.11SVW10t SVW 10 t 200 350-450 95 88 695 653 400-447 50
16.11SVW2t SVW 2 t 120 75-190 30 73,5 357 345 113-192 5
16.11SVW3t SVW 3 t 120 75-190 30 73,5 357 345 113-192 5
16.11SVW4t SVW 4 t 180 150-300 40 80 450 422 185-240 15
16.11SVW5t SVW 5 t 180 150-300 40 80 450 422 185-240 15
