General:
The CR rail clamps are designed to lift single rails securely and safely. The clamp is designed to fit most types of rail sectionsizes currently in use. The clamp has a narrow profile to enable attachment to an individual rail that is stacked side by side with other rails. The clamp is locked onto the rail-head via a leveroperated spring mechanism. It is recommended to use clamps suspended from a lifting beam for long rail lengths.
Option:
Clamps can be supplied with a short length of chain and liftingeye. This MUST be specified at the time of order.

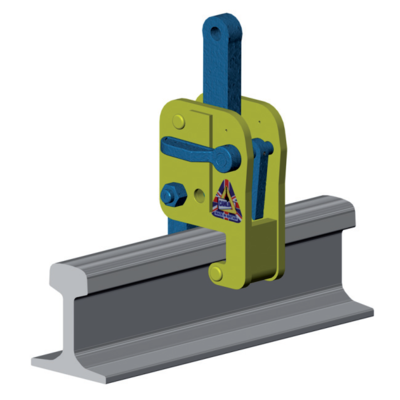

      Product Picture 1
      Select a row from the table below, then click the add to quote button
      WLL
      ton
      Type Number of rails Weight
      kg
      1 000 CR1000 1 13
      2 000 CR2000 1 13
