General:

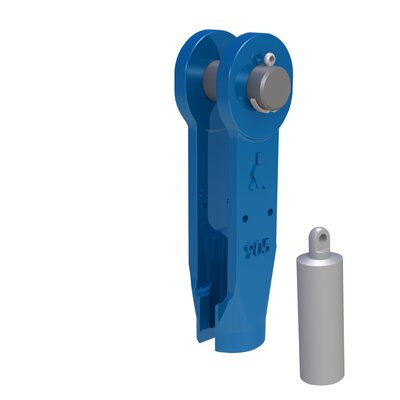

A revolutianary evolution of the Fast Connector Socket. This socket line has the smallest connector diameter available inthe market today, and still meets the respective EN standards. It has been designed to go through the smallest spaces in a crane reeving system.
This unique patent pending design allows refitting by pouring in the field, saving valuable down time compared to swaging techniques.
The standard finish of our sockets is blue. Hot dipped galvanized is also available.

Option: hot dip galvanized.

  • Material: Quenched and tempered cast steel.
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    MBL
    ton
    Finish A
    mm
    B
    mm
    C
    mm
    Ø H
    mm
    Ø P
    mm
    T
    mm
    W
    mm
    D
    mm
    Ø D
    mm
    Ø J
    mm
    L
    mm
    TB
    mm
    TL
    mm
    Weight
    kg
    10.10SCS902P SCS 902 P 13-16 25 Painted 85 133 32 19 30 14 32 58 32 56 98 85 250 3,1
    10.10SCS903P SCS 903 P 16-19 40 Painted 90 160 40 22 35 16 38 70 40 65 114 95 290 4,8
    10.10SCS904P SCS 904 P 20-22 55 Painted 107 184 45 26 41 19 44 80 44 77 130 110 336 8
    10.10SCS905P SCS 905 P 23-26 75 Painted 115 211 60 31 50 22 51 104 52 88 142 128 386 12
    10.10SCS906P SCS 906 P 27-29 90 Painted 140 215 65 34 57 25 57 114 58 96 159 142 420 16
    10.10SCS907P SCS 907 P 30-32 125 Painted 150 260 73 36 63 28 63 126 64 110 177 155 483 23
    10.10SCS908P SCS 908 P 33-36 125 Painted 170 260 73 40 64 28 69 126 68 114 197 160 503 25
