Ropeblock

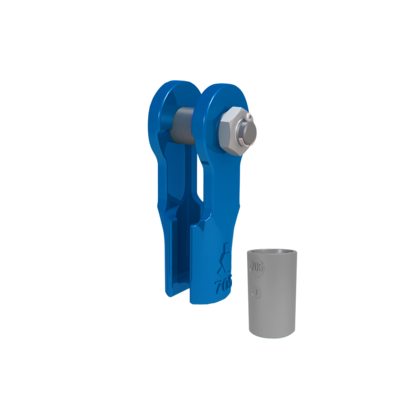

Forged clevis fittings with bolt, nut and cutterpin for fast connection of steel wire rope. Can be used to terminate all constructions of wire rope including high performance ropes, anti-rotation ropes and standard 6 strand ropes.
The connector has to be moulded / casted on the steel wire rope with wirelock resin.



  • Features: Designed for use with mobile cranes.
  • Material: Quenched and tempered cast steel.
  • Finish: Blue painted (P) or hot dip galvanized (G).
  • Warning: Compare the spelter's and the wire rope's minimum breaking load.
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    MBL
    ton
    Finish TB
    mm
    TL
    mm
    A
    mm
    B
    mm
    C
    mm
    Ø H
    mm
    Ø P
    mm
    T
    mm
    W
    mm
    D
    mm
    Ø D
    mm
    Ø J
    mm
    K
    mm
    Weight
    01-7015013B FCS 701 B 11-13 20 Painted 80 150 62 61 27 15 25 12 25 50 33 49 46 1,6
    01-7015016B FCS 702 B 13-16 25 Painted 96 182 72 78 32 18 30 14 32 58 38 60 59 2,6
    01-7015019B FCS 703 B 16-19 40 Painted 107 218 85 93 40 21 35 16 38 70 45 70 69 4,5
    01-7015023B FCS 704 B 20-22 55 Painted 123 253 102 106 45 24 41 19 44 80 50 82 81 6,5
    01-7015026B FCS 705 B 23-26 75 Painted 138 298 115 123 60 28 51 22 51 104 60 95 90 11
    01-7015029B FCS 706 B 27-29 90 Painted 160 357 140 152 65 32 57 25 57 114 70 107 116 16
