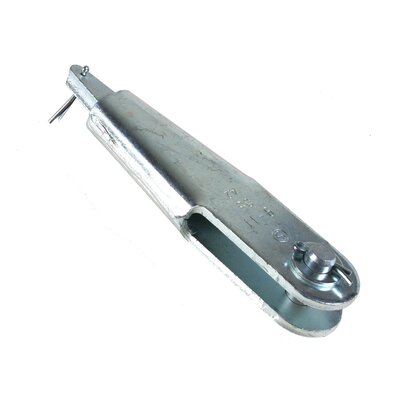

Symmetrical wedge socket terminations for stranded steel wire ropes conforming to
EN 12385-5 for lifts.

  • Marking: According to standard
  • Temperature range: -20°C up to +100°C
  • Finish: Galvanized
  • Standard: EN 13411-7
    DIN 15315 replaced by EN 13411-7
Wedge_socket_drawing_6

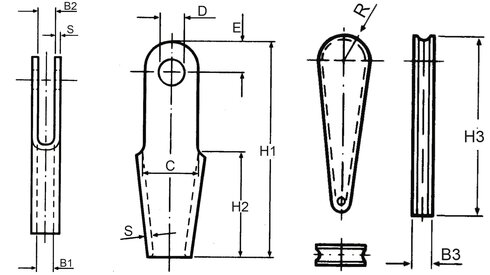

Wedge_socket_drawing_7
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm
B1
mm
B2
mm
B3
mm
C
mm
D
mm
E
mm
H1
mm
H2
mm
H3
mm
R
mm
S
mm
Weight
kg
10.214830 6-8 12 14 11 37 12 20 150 75 92 12,5 4 0,57
10.214831 9-11 15 17 14 48 16 26 190 95 117 16 6 1,05
10.214832 12-14 20 22 18 58 18 32 230 115 141 19 8 1,89
10.214833 15-17 23 25 21 70 22 36 260 130 162 23 10 3,26
10.214834 18-20 26 27 24 82 25 40 300 150 186 26 12 5,25

* For intermediate rope diameter select socket with nearest following size.
