Ropeblock

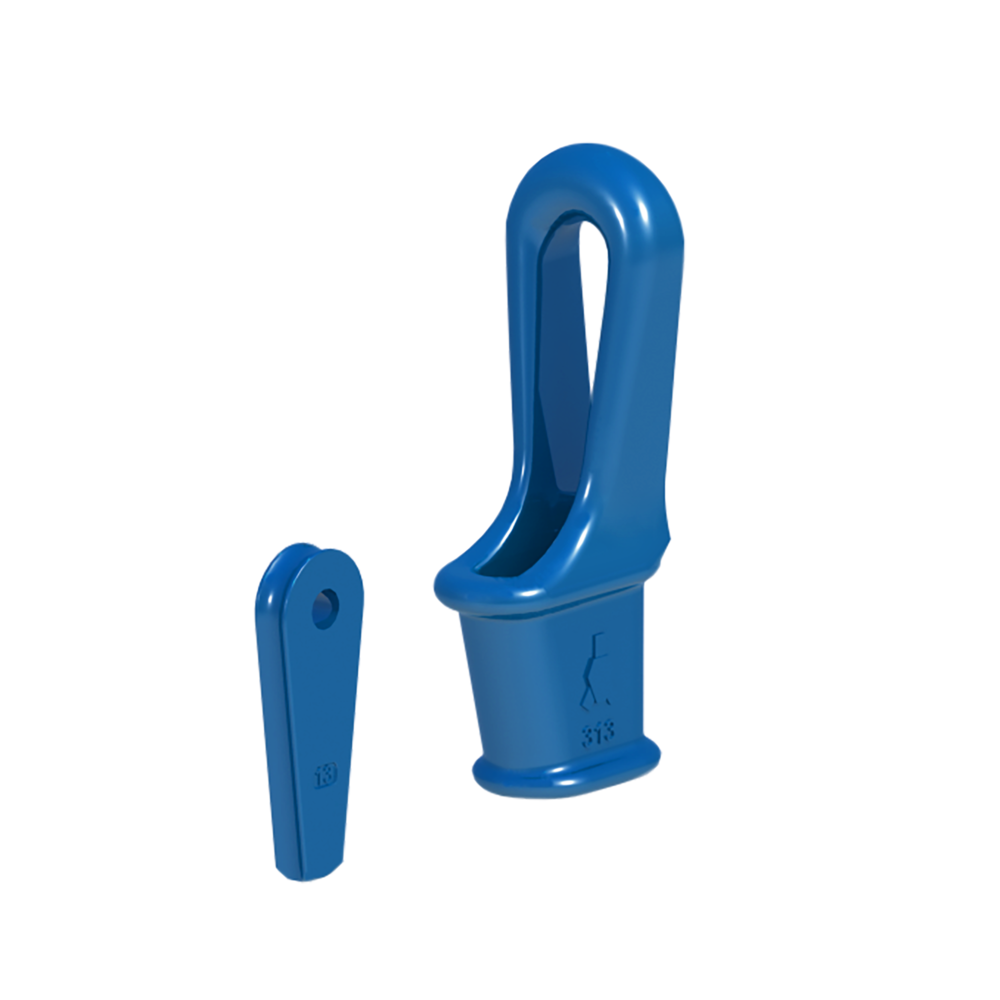

Intended for attaching of wire rope where switching often occur, e.g. blocks of mobilecranes, or to be able to adjust the length of the wire rope. See recommended assembly to get correct results. The wedge socket is delivered complete.

Marking house and wedge: Wire ø mm.

  • Material: Cast alloy steel with high mechanical properties.
  • Temperature range: - 40°C to + 110°C - Use at higher temperatures possible with reduction of WLL.
  • Finish: Blue painted (P) or hot dip galvanized (G).
  • Note: The efficiency of a 6 and 8 strand wire rope/wedge socket connection is 80% of the minimum breaking load of the wire but limited to the minimum breaking load of the socket (MBL).
    Select a row from the table below, then click the add to quote button
    Part Code Code Rope diameter
    mm
    MBL
    ton
    Finish Finish A
    mm
    B
    mm
    C
    mm
    K
    mm
    TA
    mm
    TL
    mm
    Weight
    10.20CWS303GAL CWS 303 18-19 40 Galvanized G 220 100 34 40 90 254 7
    10.20CWS304GAL CWS 304 20-22 55 Galvanized G 225 225 42 47 110 267 9
    10.20CWS305GAL CWS 305 24-26 75 Galvanized G 290 130 50 55 125 340 14
    10.20CWS306GAL CWS 306 27-29 90 Galvanized G 325 145 60 70 152 385 22
    10.20CWS307GAL CWS 307 30-32 110 Galvanized G 360 160 68 75 165 428 30
    10.20CWS308GAL CWS 308 34-36 125 Galvanized G 400 180 68 75 165 468 38
    10.20CWS309GAL CWS 309 37-39 150 Galvanized G 500 240 72 80 185 572 49
    10.20CWS310GAL CWS 310 40-42 170 Galvanized G 600 310 80 90 210 680 65
    10.20CWS311GAL CWS 311 43-48 225 Galvanized G 640 325 90 100 225 730 100
    10.20CWS312GAL CWS 312 49-52 280 Galvanized G 720 375 100 110 245 820 150
    10.20CWS313GAL CWS 313 54-58 360 Galvanized G 775 400 110 120 265 885 175
    10.20CWS314GAL CWS 314 61-64 425 Galvanized G 900 470 120 130 290 1 020 230
    10.20CWS315GAL CWS 315 72-76 460 Galvanized G 1 000 500 130 150 330 1 130 300
    10.20CWS316GAL CWS 316 81-86 625 Galvanized G 1 125 550 135 165 360 1 260 425

    Finish G = galvanized
    Finish P = painted RAL 5013 blue
