General: For vertical lifting of tubes, bundles of tubes and solid round material.

Product Picture 1

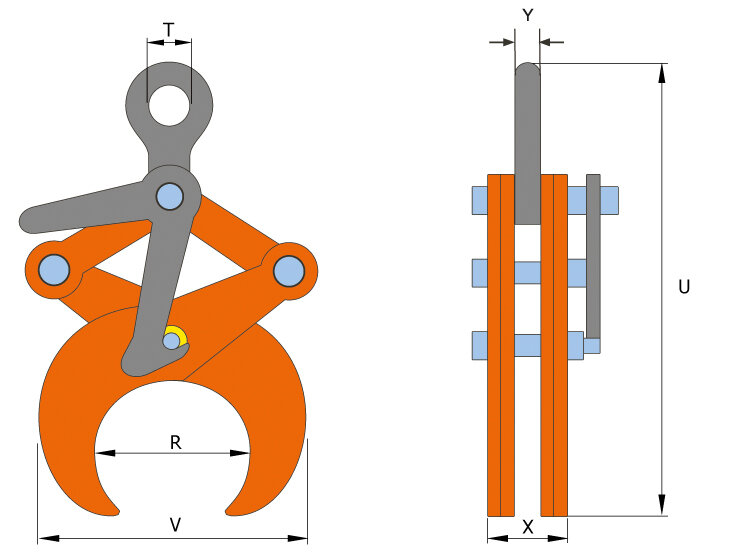

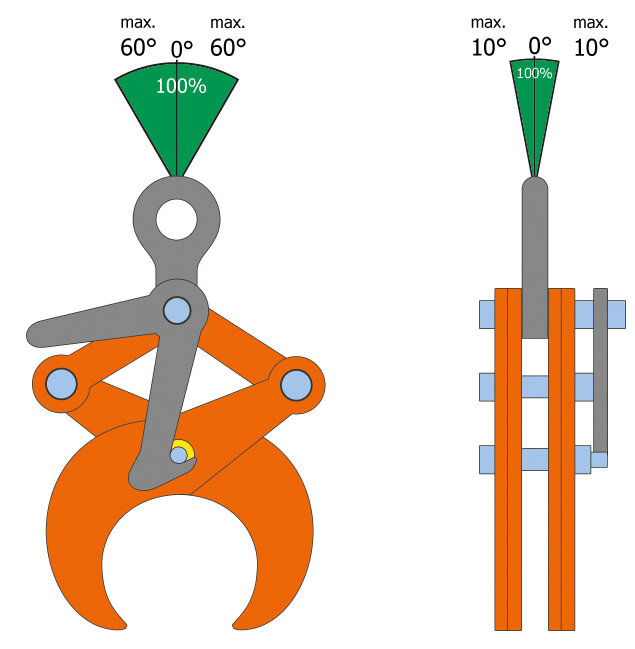

Pewag TLW drawing Pewag TLW load diagram
Select a row from the table below, then click the add to quote button
Part Code Code X
mm
Y
mm
Jaw opening R
mm
V min-max U min-max T
mm
Weight
kg
CAD
16.01TLW0.5t TLW 0.5 t 47 15 48,3-114,3 146-207 300-400 45 4,5
16.01TLW1t TLW 1 t 47 15 114,3-219,1 110-170 430-615 45 9
16.01TLW2t TLW 2 t 56 16 219,1-368 490-610 670-955 64 31
16.01TLW3t TLW 3 t 56 16 368-508 590-710 875-1165 64 39

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
