Suitable for wire rope.
Standard certification : Certificate of Conformity

  • Material: Mild steel.
  • Temperature range: -20°C up to +200°C
  • Finish: Galvanized.
    Select a row from the table below, then click the add to quote button

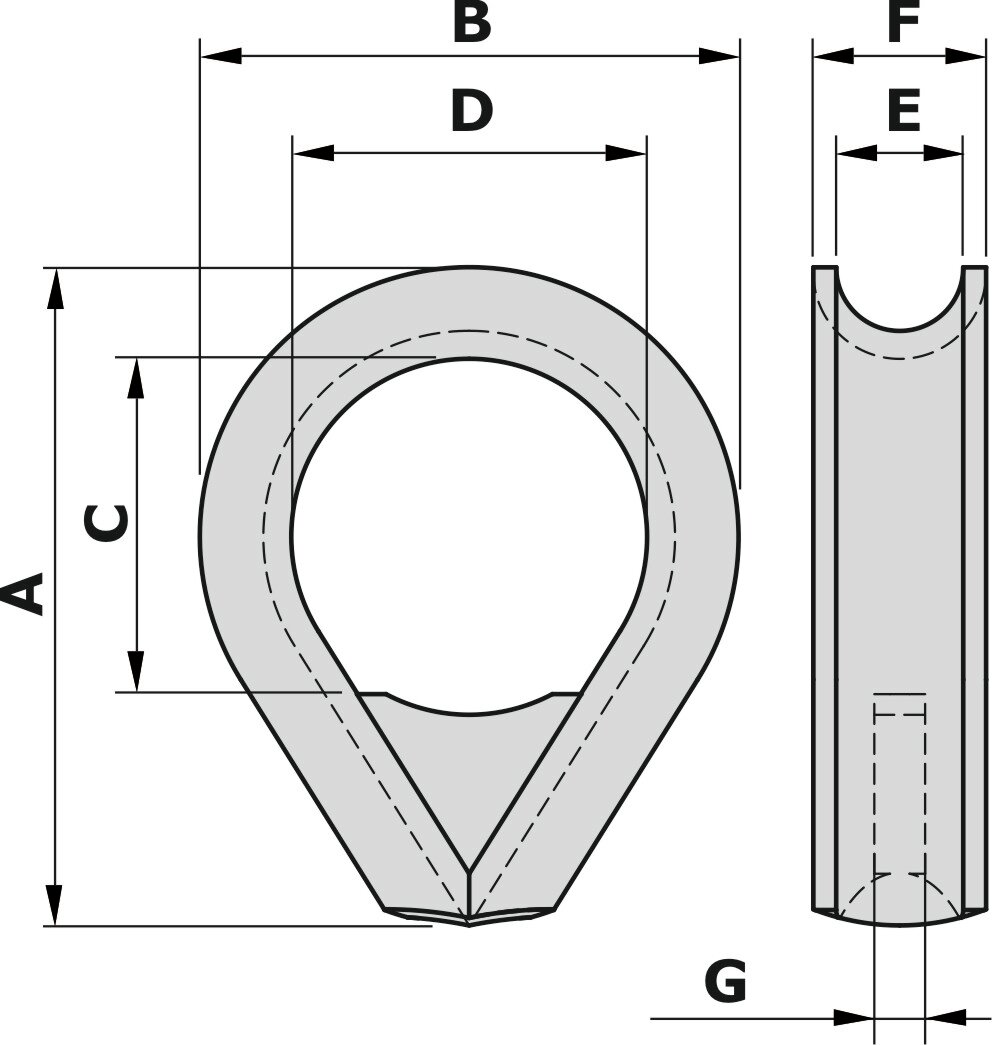

    Part Code Rope diameter A
    mm
    B
    mm
    C
    mm
    D
    mm
    E
    mm
    F
    mm
    G
    mm
    Weight
    kg/100pc
    CAD
    10.2511149999 15 101,6 75 50 50 17 22 6 0,4 -
    10.2511179999 15 101,6 75 50 50 17 22 6 0,4 -
    10.2511199999 17 114,3 85 50 53 19 25 6 0,5 -
    10.2511229999 19 127 100 60 60 21 29 8 0,8 -
    10.2511239999 21 139,7 110 60 65 23 33 8 0,9 -
    10.2511249999 23 152,4 115 70 70 25 34 8 1 -
    10.2511259999 27 177,8 135 75 80 30 38 10 1,7 -
    10.2511269999 30 203,2 155 80 100 33 44 10 2,5 -
    10.2511279999 34 228,6 175 110 115 38 49 10 4 -
    10.2511289999 37 254 190 120 120 41 52 15 4,5 -
    10.2511299999 42 279,4 210 120 130 46 60 15 7 -
    10.2511309999 47 304,8 245 140 145 52 65 15 8,3 -
    10.2511319999 54 355,6 260 155 155 60 72 20 12,5 -
    10.2511329999 63 431,8 310 200 190 70 84 20 18 -
    10.2511339999 73 482,6 350 235 230 81 119 20 30,5 -
    10.2511349999 83 558,8 395 240 255 92 130 20 40,5 -
    10.2511359999 95 609,6 430 275 280 105 145 25 49,5 -
    10.2511369999 109 660,4 450 295 285 120 155 30 54 -
