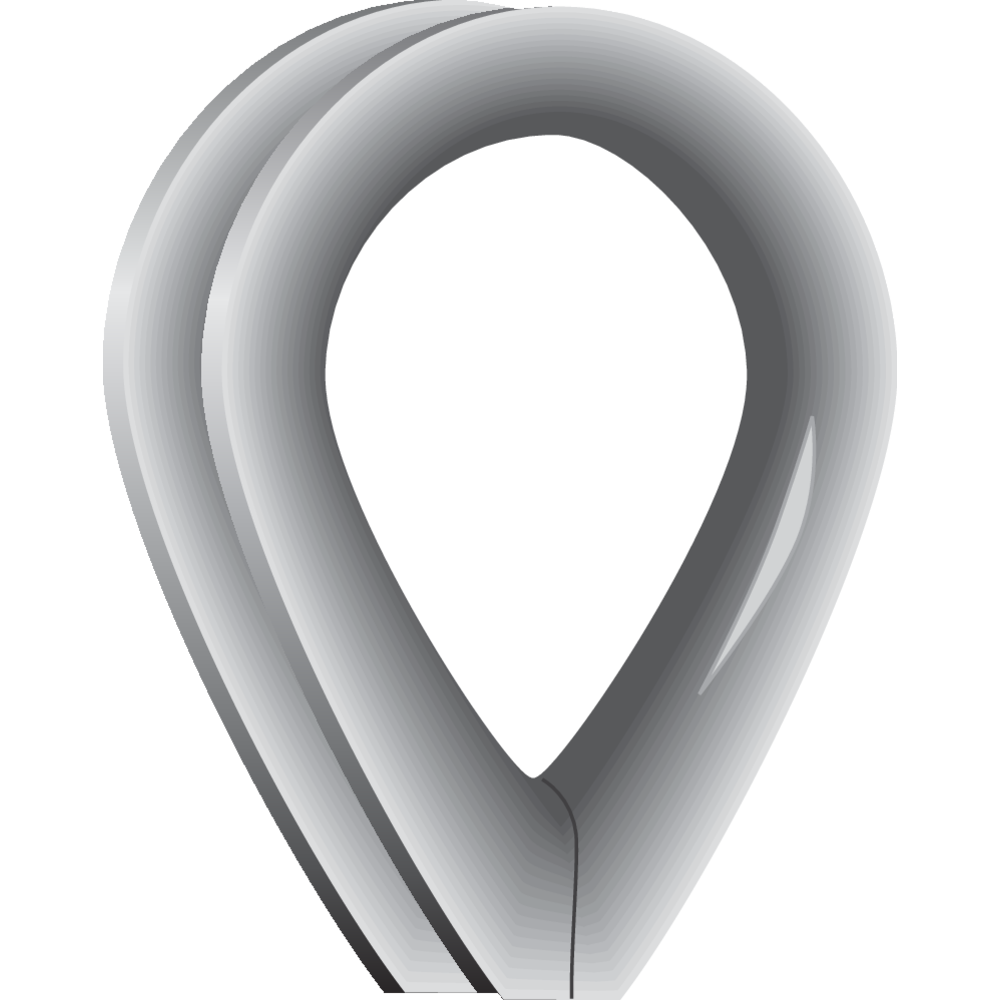

• Certification : a works certificate can be supplied upon request
  • Material: mild steel
  • Finish: hot dipped galvanized
    Select a row from the table below, then click the add to quote button
    Rope diameter
    mm

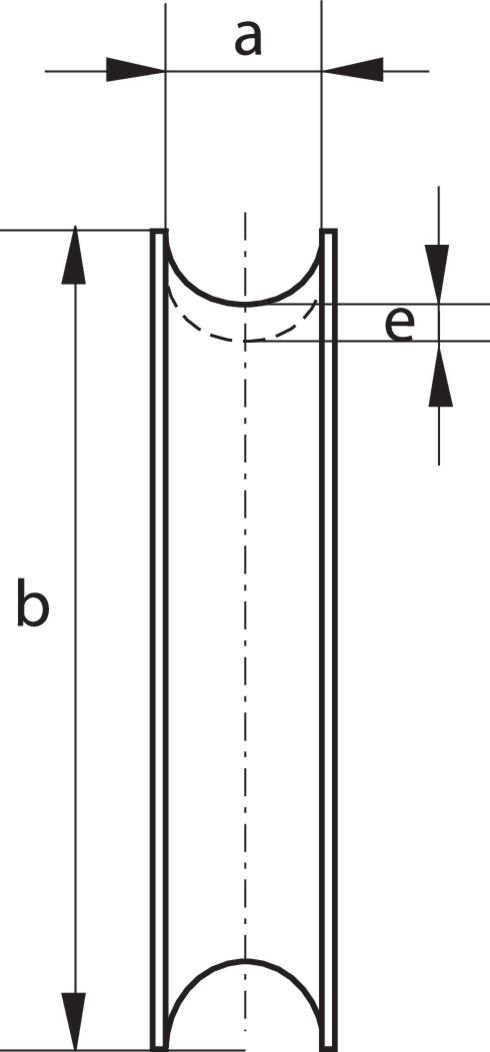

    length b
    mm
    width groove a
    mm

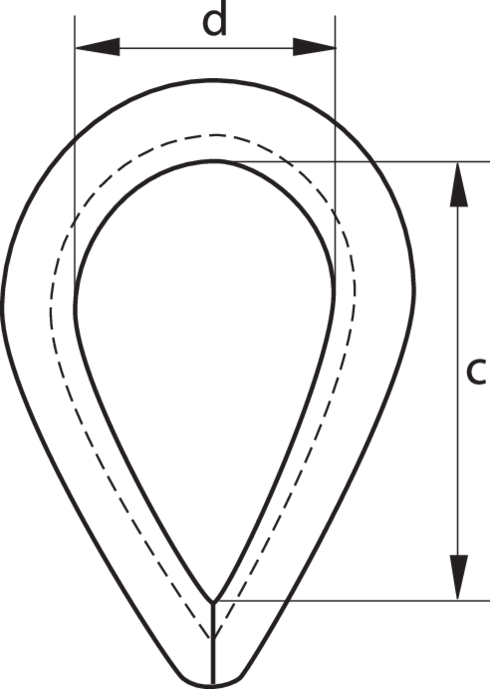

    Length inside c
    mm
    thickness back e
    mm
    width inside d Weight
    kg/100pc
    CAD
    8 51 8 35 4 22 6 -
    10 64 10 47 4 30 7 -
    12 76 12 57 5 35 14 -
    14 89 14 65 6 45 22 -
    16 102 16 76 6 50 24 -
    18 114 18 86 8 53 43 -
    20 127 20 94 9 60 65 -
    22 140 22 107 10 65 93 -
    24 152 24 114 10 70 102 -
    28 178 28 130 10,5 80 135 -
    32 203 32 157 10,5 100 162 -
    36 229 36 177 12 115 363 -
    40 254 40 198 12 120 376 -
    44 279 44 214 15 130 608 -
    50 305 50 215 20 140 960 -
    56 356 56 245 20 160 1 400 -
    64 407 64 275 20 180 1 700 -
