General: Swage sockets are recommended for use on 6x19 or 6x37 IWRC regular lay ropes and also satisfactory on galvanized bridge rope. Before using swage sockets with other type lay, construction or grade of wire rope, it is recommended that the termination be proofloaded to prove the adequacy of the assembly. Sockets properly applied have an efficiency rating of 100% based on the catalog strength of the used wire rope. Forged from special steel for cold swaging.


Warning: They are not recommended for use on fiber core ropes.

  • Material: Steel
  • Finish: Forged Carbon Steel
    Product Picture 1
    Product Picture 2
    Select a row from the table below, then click the add to quote button

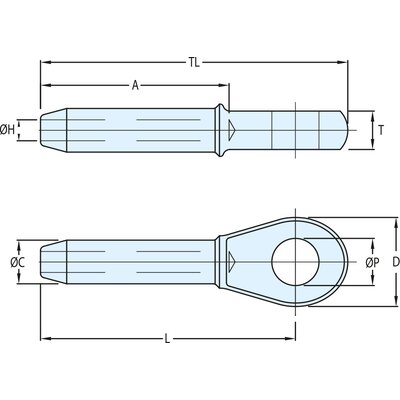

    Part Code Rope diameter
    mm
    Ø C
    mm
    Ø H
    mm
    D
    mm
    Ø P
    mm
    T
    mm
    A
    mm
    TL
    mm
    L
    mm
    Weight
    kg
    10.46SSC06 6 12,7 6,85 37 19,1 13 54 111 89 0,15
    10.46SSC10 10 19,6 10,4 43 22,4 17 81 140 114 0,35
    10.46SSC08 8 19,6 8,65 43 22,4 17 81 140 114 0,36
    10.46SSC11 11 24,9 12,2 51 26,9 22 108 176 146 0,7
    10.46SSC13 13 24,9 14 51 26,9 22 108 176 146 0,7
    10.46SSC14 14 31,8 15,5 63 31,8 29 135 222 184 1,3
    10.46SSC16 16 31,8 17 63 31,8 29 135 222 184 1,3
    10.46SSC19 19 39,4 20,3 76 36,6 33 162 264 219 2,3
    10.46SSC22 22 43,2 23,9 89 42,9 38 189 308 257 3,4
    10.46SSC25 25 50,5 26,9 102 52,5 44 216 349 292 5,1
    10.46SSC29 29 57 30,2 114 58,5 51 243 387 324 7,2
    10.46SSC32 32 64,5 33,8 127 65 57 270 438 365 10,5
    10.46SSC35 35 71 36,8 133 65 57 297 479 400 14,1
    10.46SSC38 38 78 40,1 140 71,5 63 324 518 432 17,7
    10.46SSC44 44 86 47,2 171 90,5 76 378 610 508 23,6
    10.46SSC51 51 100 53,5 197 96,5 83 432 698 584 40,8
    10.46SSC57 57 113 59,9 219 109,5 102 486 756 632 55,4
    10.46SSC63 63 125,2 67,5 219 109,5 102 498 791 667 64,4
    10.46SSC76 76 150,6 80,4 235 134,9 137 603 959 816 114,3
