Snatch block with Green Pin shackle.

  • Material: Carbon steel, fitted with conical roller bearings, except for blocks with WLL 2 t and 4 t, these are equipped with bronze bushes.
  • Marking: According to standard
  • Finish: Painted.
  • Standard: EN 13157
  • Note: WLL is on the headfitting.
  • Safety factor: MBL lig 4 x WLL.

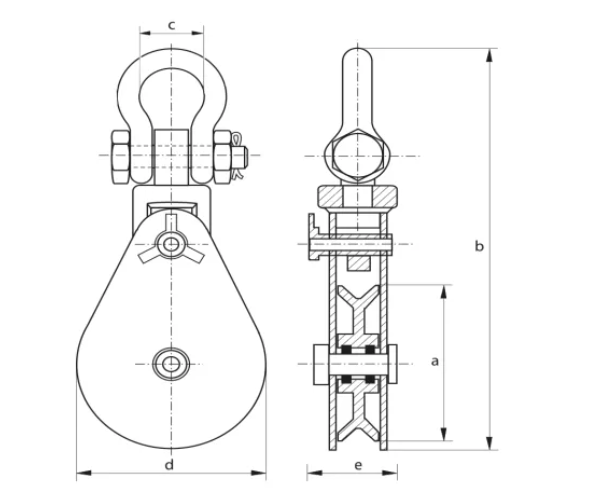

P-6951 aanzichten
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
A
mm
B
mm
C
mm
D
mm
Weight
kg
CAD
16.15BKOFFSS0302 2 75 293 75 82 3,8 -
16.15BKOFFSS0404 4 115 363 102 120 6,1 -
16.15BKOFFSS0604 4 152 417 102 160 9,5 -
16.15BKOFFSS0804 4 203 478 102 210 12 -
16.15BKOFFSS060816 8 152 477 118 160 12,6 -
16.15BKOFFSS0608 8 152 477 118 160 14,6 -
16.15BKOFFSS0808 8 203 526 118 210 16 -
16.15BKOFFSS1008 8 254 582 118 260 18 -
16.15BKOFFSS100816 8 254 582 118 260 19,5 -
16.15BKOFFSS1208 8 305 612 118 310 27 -
16.15BKOFFSS1408 8 357 662 118 360 31 -
16.15BKOFFSS1608 8 406 712 118 410 35 -
16.15BKOFFSS1808 8 457 762 118 460 42 -
16.15BKOFFSS061216 12 152 555 147 160 25 -
16.15BKOFFSS0612 12 152 555 147 160 25 -
16.15BKOFFSS081216 12 203 580 147 210 27,5 -
16.15BKOFFSS0812 12 203 580 147 210 32 -
16.15BKOFFSS1012 12 254 680 147 260 39 -
16.15BKOFFSS1212 12 305 745 147 310 53 -
16.15BKOFFSS1412 12 357 770 147 360 60 -
16.15BKOFFSS1612 12 406 820 147 410 67 -
16.15BKOFFSS1812 12 457 878 147 460 75 -
16.15BKOFFSS0615 15 152 585 175 160 30 -
16.15BKOFFSS0815 15 203 646 175 210 35 -
16.15BKOFFSS1015 15 254 705 175 260 43 -
16.15BKOFFSS1215 15 305 771 175 310 55 -
16.15BKOFFSS1415 15 357 798 175 360 63 -
16.15BKOFFSS1615 15 406 848 175 410 70 -
16.15BKOFFSS1815 15 457 898 175 460 78 -
