Symmetrical wedge socket terminations for stranded steel wire ropes conforming to
EN 12385-5 for lifts.

Marking: According to standard
Temperature range: -20°C up to +100°C
Finish: Galvanized
Standard: EN 13411-7
DIN 15315 replaced by EN 13411-7

Select a row from the table below, then click the add to quote button

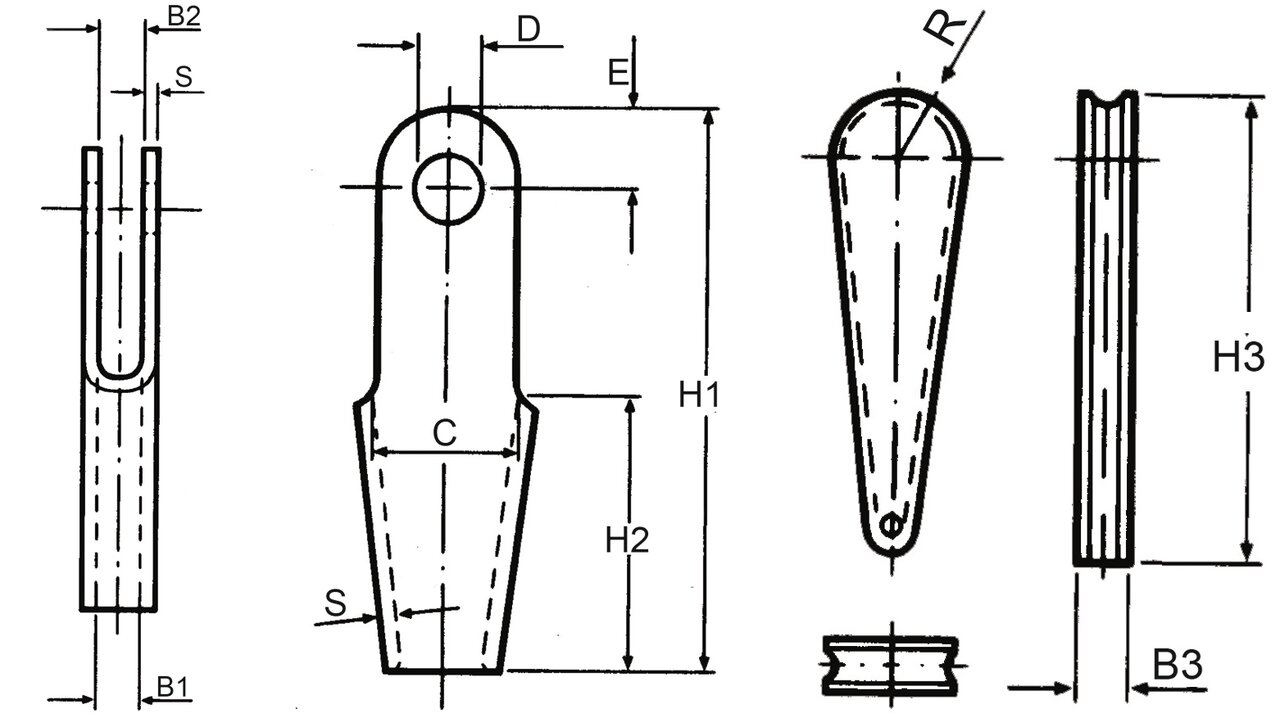

Part Code	Rope diameter range mm	B1 mm	B2 mm	B3 mm	C mm	D mm	E mm	H1 mm	H2 mm	H3 mm	R mm	S mm	Weight kg
10.214830	6-8	12	14	11	37	12	20	150	75	92	12,5	4	0,57
10.214831	9-11	15	17	14	48	16	26	190	95	117	16	6	1,05
10.214832	12-14	20	22	18	58	18	32	230	115	141	19	8	1,89
10.214833	15-17	23	25	21	70	22	36	260	130	162	23	10	3,26
10.214834	18-20	26	27	24	82	25	40	300	150	186	26	12	5,25

* For intermediate rope diameter select socket with nearest following size.
