General:
Hand pallet truck PROLINE with short forks. Capacity 2500 kg.For the professional transportation of short palletised goods and box pallets under demanding conditions.

- Ergonomic rubber control handle for safe handling.
- Low maintenance high performance hydraulic pump with hard chromium plated piston and pressure relief valve.
- Frame and forks in robust steel construction, adjustable connecting rods, especially hardened axles and the high quality powder coating ensure a long life expectancy.
- Fork lenghts from 800 up to 1000 mm for transportation of small loads.
- Steering angle of 105 degree to each side for easy handling in confined spaces.
- Available with tandem (TS) or single rollers (ES).

  • Features: - Ergonomic safety control handle for one-hand operation of lifting, driving and lowering.

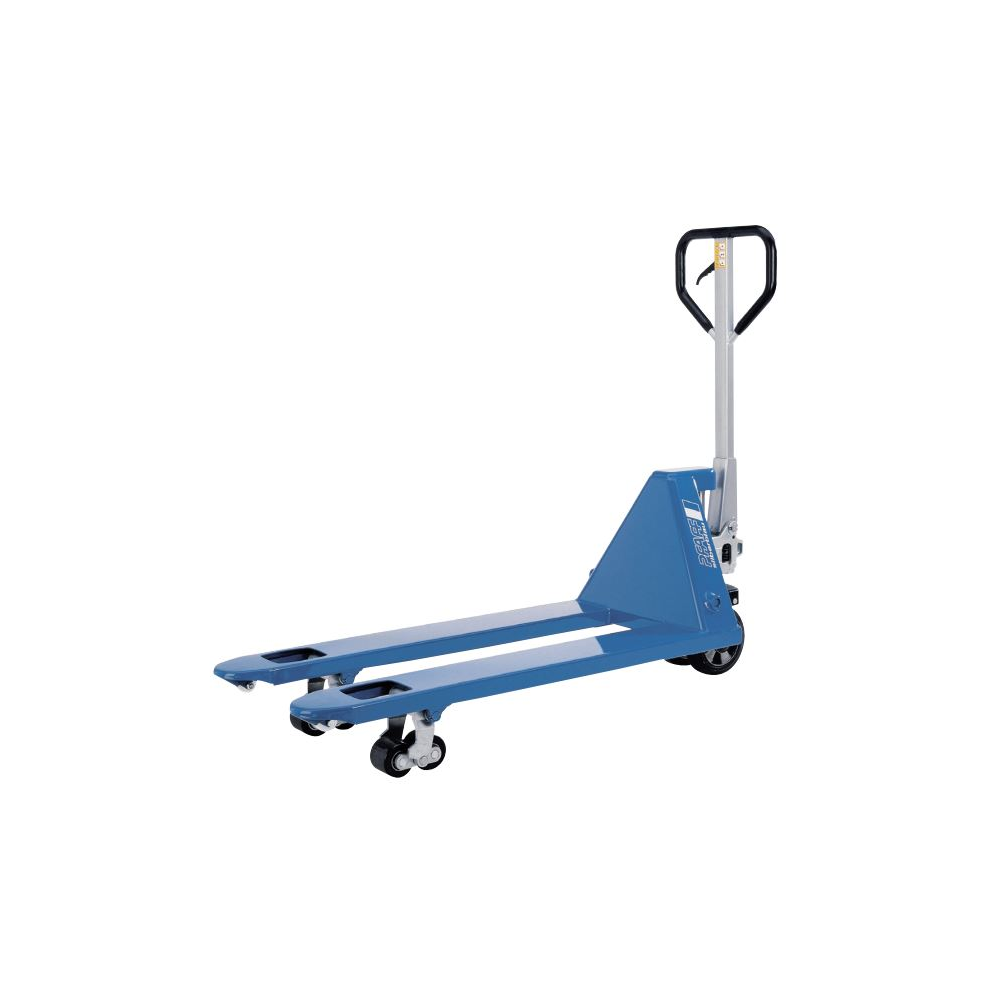

Product Image 1

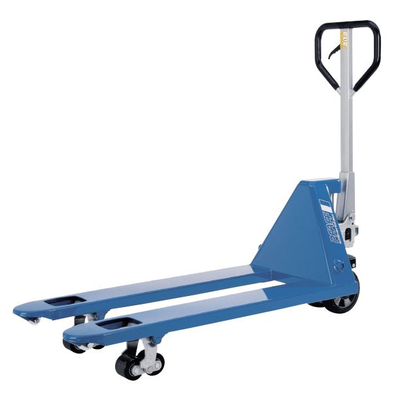

Product Image 2
Select a row from the table below, then click the add to quote button

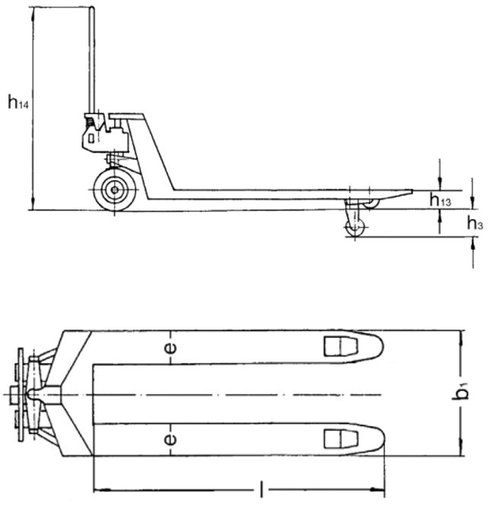

Part Code Type Wheels Capacity
kg
h3
mm
l
mm
B1
mm
h14
mm
h13
mm
e
mm
Weight
kg
CAD
040011694 HU 25-60 RTN VG/PA 2 500 115 600 540 1 200 85 160 59
034527150 HU 25-80 EP VG/PUR 2 500 115 800 540 1 230 85 160 63
034527153 HU 25-80 TP VG/PUR 2 500 115 800 540 1 230 85 160 64
034527151 HU 25-90 EP VG/PUR 2 500 115 900 540 1 230 85 160 66
034527152 HU 25-100 EP VG/PUR 2 500 115 1 000 540 1 230 85 160 66
034527155 HU 25-100 TP VG/PUR 2 500 115 1 000 540 1 230 85 160 66
034527154 HU 25-90 TP VG/PUR 2 500 115 900 540 1 230 85 160 67
PA (polyamide) / PUR (polyurethane) / VG (solid rubber)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD
Download
