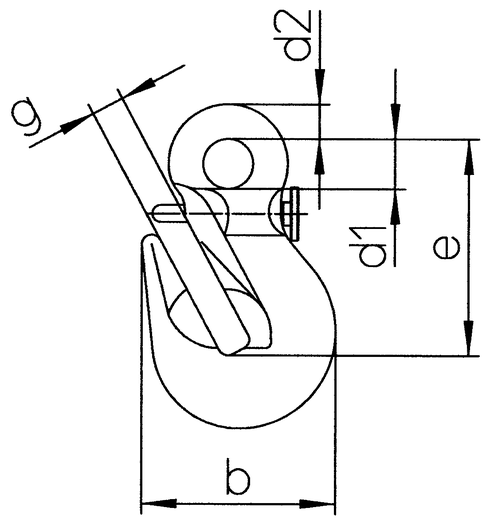

This standard shortening hook ensures optimal interaction between chain and hook thanks to the special design of the chain contact area. Moreover, the integrated safety catch protects the chain from an accidental release. Tip loading is not allowed as well as the assembling with Unilock connection links. Further, the usage in the welded system has to be prevented.
Even when shortened, the load capacity is not reduced.
- Material: High duty grade 10.
- Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
- Temperature range: -40ºC up to +380°C.
- Finish: Orange powder coated.
- Standard: EN 1677-1
- Safety factor: 4:1
- Grade: 10


Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
