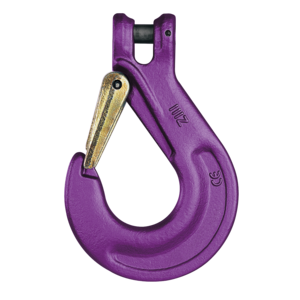

KHSW Clevis sling hooks are designed for the assembly of chain slings.
General purpose hook, can be used without transition link and without connecting link.
With forged safety catch.

Material: High duty grade 10.
Marking: According to standard, CE-marked, Pewag or PW, winner or 10, H16, batch code and type.
Temperature range: -40ºC up to +380°C.
Finish: Orange powder coated.
Standard: EN 1677-2

Safety factor: 4:1
Grade: 10

Clevis Sling Hook KHSW Grade 10

Select a row from the table below, then click the add to quote button

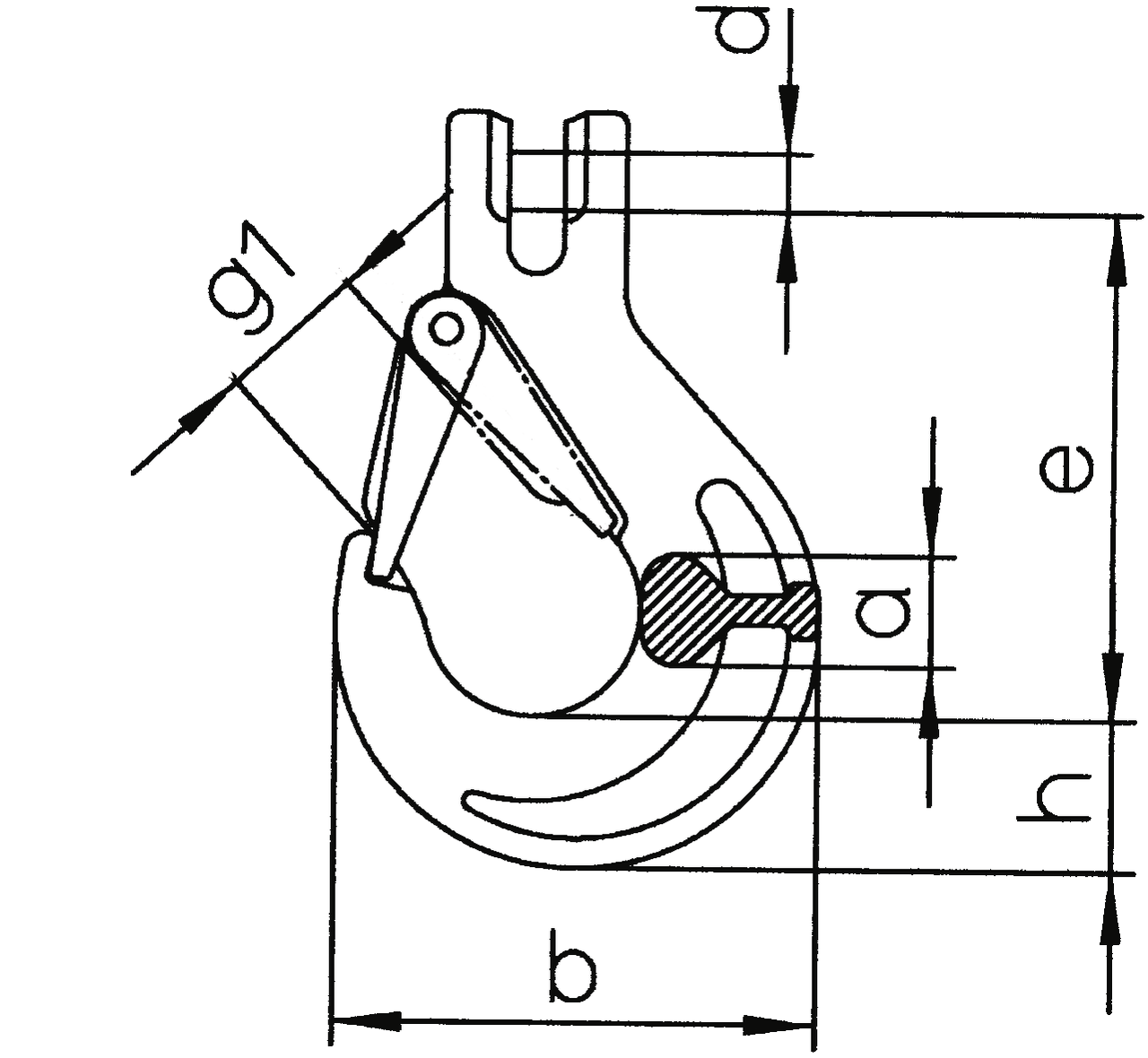

Part Code	Code	WLL ton	a mm	b mm	d mm	e mm	g1 mm	h mm	Weight kg
11.1117753	KHSW 5/6	1,4	15	66	7	69	19	20	0,2
11.114890	KHSW 7	1,9	19	90	9	95	26	28	0,6
11.1117754	KHSW 8	2,5	19	90	10	95	26	28	0,6
11.1117755	KHSW 10	4	25	108	12	109	31	35	1,1
11.1117756	KHSW 13	6,7	34	131	16	136	39	41	2
11.1117757	KHSW 16	10	37	153	20	155	45	49	3,48
11.1160548	KHSW 19/20	16	51	177	24	184	53	53	5
11.1160551	KHSW 22	19	52	196	27	214	62	62	9

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
