Chain for lifting and also allowed to use in lashing systems according to EN 12195-3.

  • Material: Alloy steel grade 8.
  • Marking: According to standard
  • Finish: Painted.
  • Standard: EN 818-2
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1 (WLL) 2:1 when used in Lashing systems
  • Grade: 8

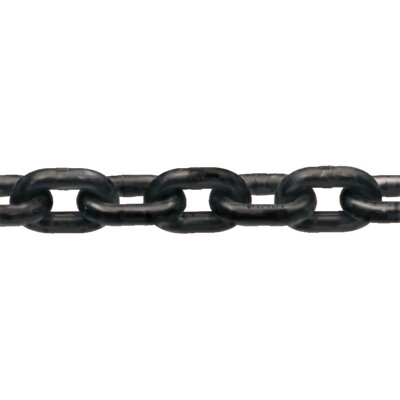

Chain - Short Link Grade 8

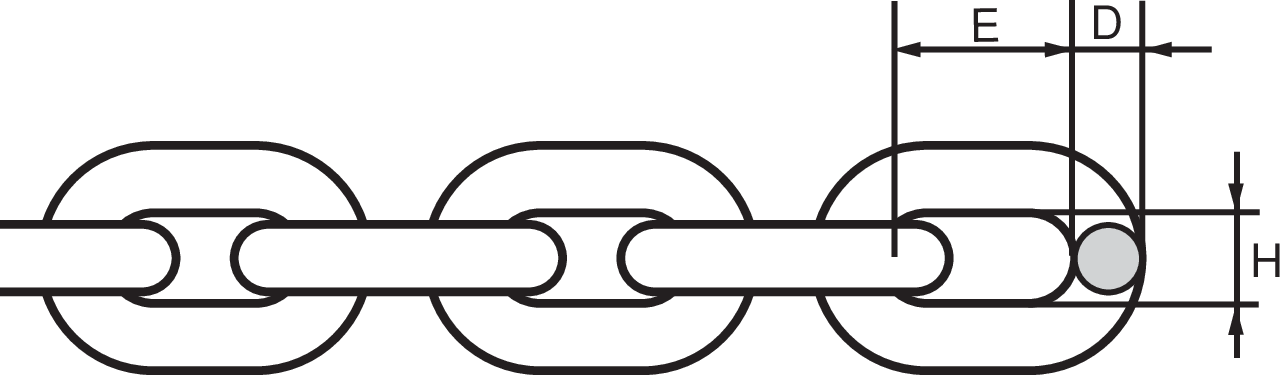

KLM_e_225mm
Select a row from the table below, then click the add to quote button
Part Code Diameter
mm
WLL
ton
LC
kN
Min. breaking force
kN
E
mm
H
mm
Weight
kg/m
11.648182060P 6 1,12 22 45,2 18 8,5 0,8
11.648182070P 7 1,5 30 61,6 21 10,5 1,1
11.648182080P 8 2 40 80,4 24 8 1,4
11.648182100P 10 3,15 63 126 30 14 2,2
11.648182130P 13 5,3 100 212 39 19 3,8
11.648182160P 16 8 160 322 48 23 5,7
11.648182200P 20 12,5 250 503 60 26 9
11.648182220P 22 15 300 608 66 28,6 11
11.648182260P 26 21,2 849 78 33,8 15
11.648182320P 32 31,5 1 290 96 41,6 23
WLL ton = Lifting applications for safety factor 4:1
LC kN = Load lashing capacity (LC).
