General: For lifting, handling and moving of banded/secured stacks and single steel plates. The HSKW horizontal lifting clamps must always be used in pairs. The use of two pairs by meaning of a load spreader bar is also possible.
Capacity 1,5tons per pair up to 9 tons per pair. Opening 3 - 180mm, 3 - 300mm and 3 - 420mm.

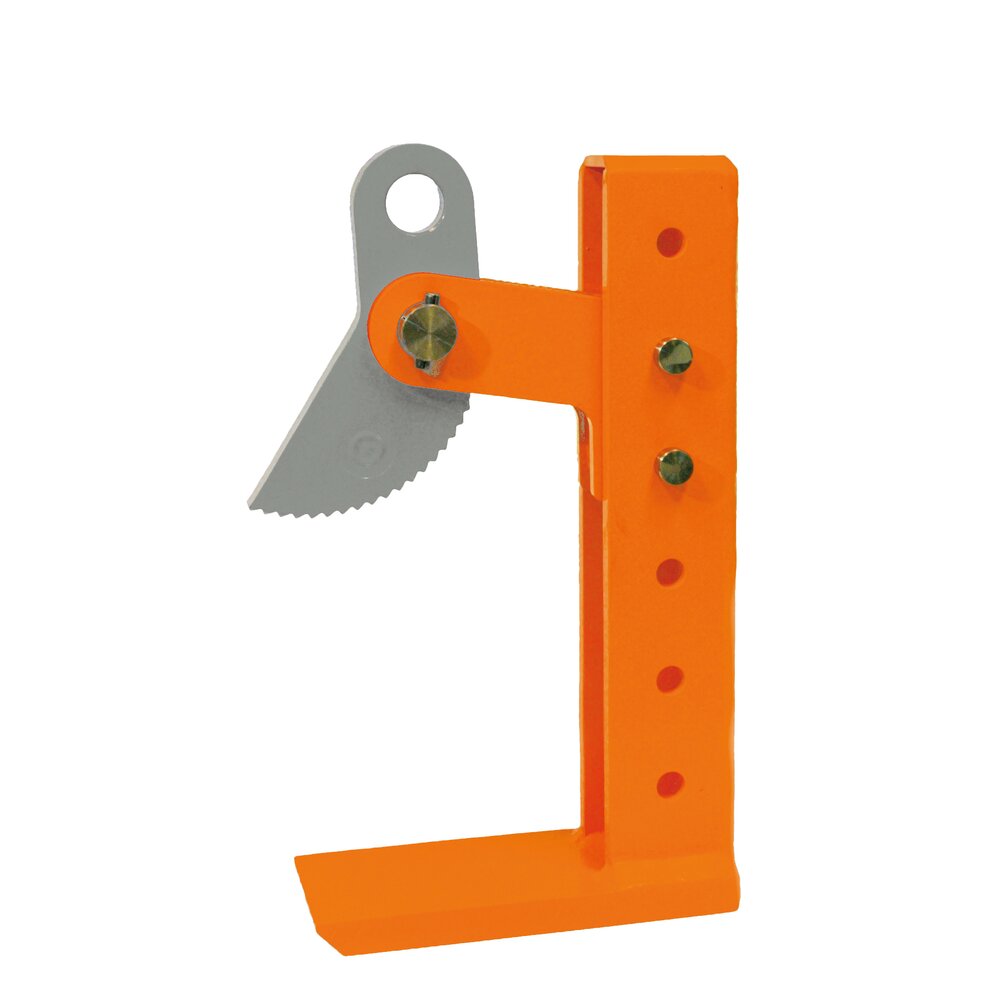

Product Image 1

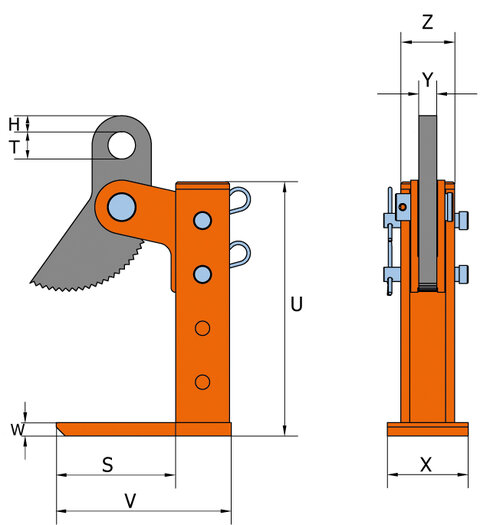

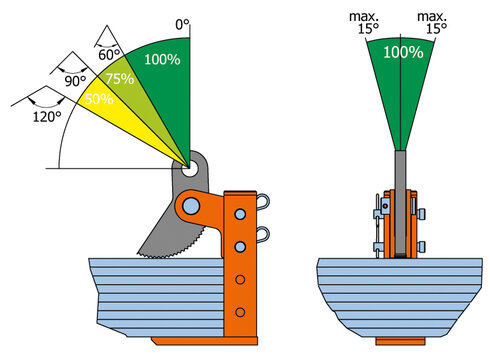

Pewag HSKW drawing Pewag HSKW load diagram
Select a row from the table below, then click the add to quote button
Part Code Code X
mm
Y
mm
Z
mm
load capacity
kg/pair
Jaw opening R
mm
V
mm
S
mm
W
mm
T
mm
H
mm
U
mm
Weight
og
CAD
16.01HSKW/1801.5t HSKW/180 1.5 t 90 20 60 1,500 3-180 201 135 15 30,5 18 289 9,5
16.01HSKW/1803t HSKW/180 3 t 105 20 69 3,000 3-180 241 165 20 30,5 18 296 13
16.01HSKW/1804.5t HSKW/180 4.5 t 105 20 69 4,500 3-180 241 165 20 30,5 18 296 13
16.01HSKW/1806t HSKW/180 6 t 120 20 75 6,000 3-180 256 160 25 30,5 18 304 18
16.01HSKW/1809t HSKW/180 9 t 120 20 75 9,000 3-180 256 160 25 30,5 18 304 18
16.01HSKW/3001.5t HSKW/300 1.5 t 90 20 60 1,500 3-300 201 135 15 30,5 18 409 11
16.01HSKW/3003t HSKW/300 3 t 105 20 69 3,000 3-300 241 165 20 30,5 18 416 15
16.01HSKW/4204.5t HSKW/420 4.5 t 105 20 69 4,500 3-420 241 165 20 30,5 18 536 17
16.01HSKW/4206t HSKW/420 6 t 120 20 75 6,000 3-420 256 160 25 30,5 18 544 24
16.01HSKW/4209t HSKW/420 9 t 120 20 75 9,000 3-420 256 160 25 30,5 18 544 24
