General:

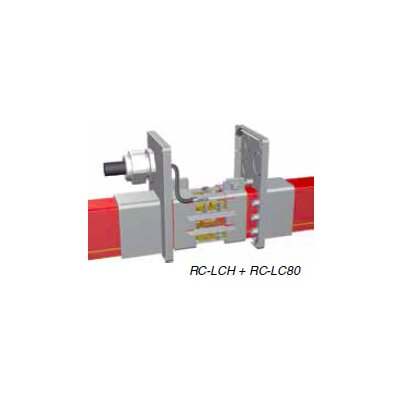

All line feed systems require clamp holders and feed clamps to connect the copper conductors within the rail housing to the cores of the supply cable.
There are 3 types of feed clamps: RC-LC80, RC-LC110 and RC-LC200. To connect the copper conductors to a cable terminal in a transition box, the transition cables OK25, OK35 or OK50 can be used. In some cases, it can replace a feeder cable with a too large outer diameter.
Feed clamps:

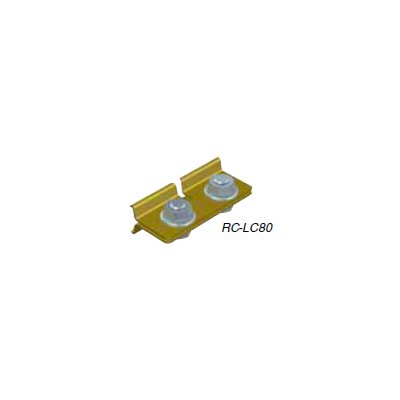

Type RC-LC80
To be applied for mounting copper conductors Cu50 - Cu80. Click connection.
Type RC-LC110
To be applied for mounting copper conductors Cu110. Click connection

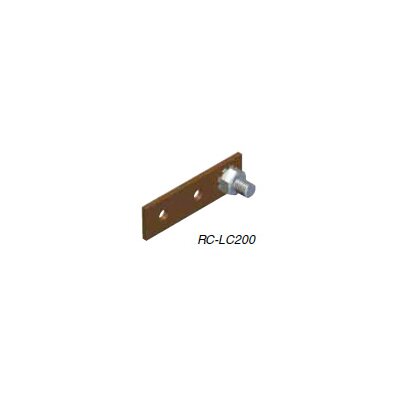

Type RC-LC200
To be applied for mounting copper conductors Cu125, Cu160 and Cu200. Screwed connection.
Transition cables
Type OK25
Cable 1x 25 mm2, length 1,5 m, with cable lugs. Max. current capacity 125A or 250A (2 cables inparallel connection) and Cu125 conductor. To be
used with transition box OGV320 (see below).
Type OK35
Similar to OK25, however for max. current capacity 320A (with 2 cables in parallel connection and Cu160 conductor).
Type OK50
Similar to OK25, however for max. current capacity 400A (with 2 cables in parallel connection and Cu200 conductor).
Transition box for feed connection Click-Ductor
Type OGV320
Complete with 2x5 bolts M10 for cable lug connections, 7 glands PG21 and a special grommet for cables of Ø20 - Ø75 mm.
|
Line feed clamps Akapp No
|
Description
|
Number
|
max. current (a) 100% I.D.
|
with type line feed holder
|
|
2109010
|
Feed clamp small RC-LC-80
|
1 per conductor
|
80
|
RC-LCH
|
|
2109020
|
Feed clamp large RC-LC110
|
1 per conductor
|
110
|
RC-LCH
|
|
2109030
|
Feed clamp RC-LC200
|
1 per conductor
|
160
|
RC-LCH
|
|
Transition Cables Akapp No.
|
description
|
number
|
max. current (A)
(100% I.D.) |
with type transition box
|
|
|
|
|
(100X 1.D.)
|
|
|
1499560
|
Cable, 1x25 mm2, L=1,5m OK25
|
1 per conductor
|
135
|
OGV320
|
|
1499640
|
Cable, 1x35 mm2, L=1,5m OK35
|
1 per conductor
|
169
|
OGV320
|
|
1499720
|
Cable, 1x50 mm2, L=1,5m OK50 1
|
1 per conductor
|
207
|
OGV320
|
|
Transition box Akapp No
|
description
|
number
|
max. current (A)
(100% I.D.) |
protection degree
|
|
|
|
|
(100% I.D.)
|
|
|
1010510
|
transition box OGV320
|
1 per system
|
286,3
|
IP44
|
