Double swivel shackle SS DSS, stainless steel

Home / Products / Chains & components / Double swivel shackle Codipro SS DSS

The SS.DSS stainless steel lifting ring is a double swivel ring. It is specially designed for simultaneously lifting and rotating loads. Its double swivel action ensures perfect alignment with the sling.

Features:

Stainless steel ring that provides maximum corrosion resistance.
Rotatable under load.
M45 to M56 or UNC thread available on request.

Material: AISI 316 L
Marking: According to standard, CE-marked
Standard: EN 1677-1
except grade/WLL

Safety factor: 5:1

Select a row from the table below, then click the add to quote button

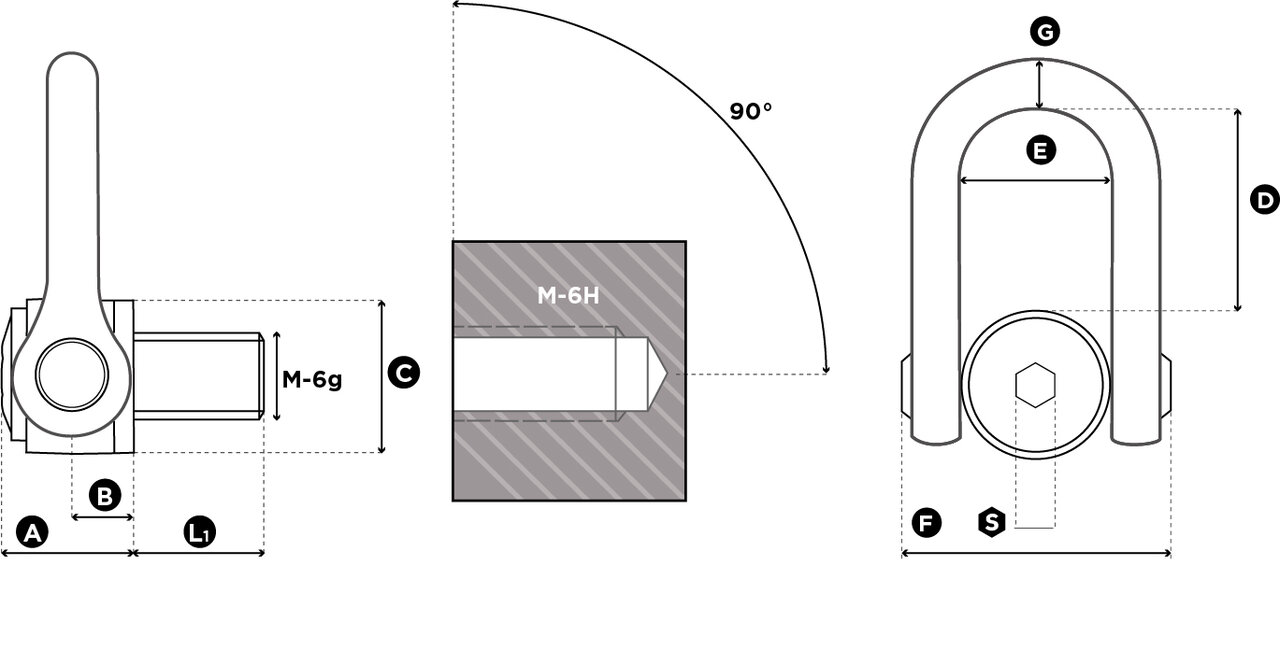

Part Code	Thread	WLL t	Torque Nm	Standard mm	S mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Weight kg	CAD
11.49SS.DSS M 24	M 24 (x3)	2,70	160	36	19	61	31	70	104	73	149	30	5,2	-
11.49SS.DSS M 30	M 30 (x3.5)	3,50	250	45	19	61	31	70	104	73	149	30	5,2	-
11.49SS.DSS M 33	M 33 (x3.5)	3,50	250	50	19	61	31	70	104	73	149	30	5,2	-
11.49SS.DSS M 36	M 36 (x4)	5,00	320	54	19	61	31	70	104	73	149	30	5,2	-
11.49SS.DSS M 36x3	M 36 (x3)	5,00	320	54	19	61	31	70	104	73	149	30	5,2	-
11.49SS.DSS M 39	M 39 (x4)	5,00	320	54	19	61	31	70	104	73	149	30	5,4	-
11.49SS.DSS M 42	M 42 (x4,5)	6,00	400	63	19	61	31	70	104	73	149	30	5,4	-
11.49SS.DSS M 42x3	M 42 (x3)	6,00	400	63	19	61	31	70	104	73	149	30	5,4	-
