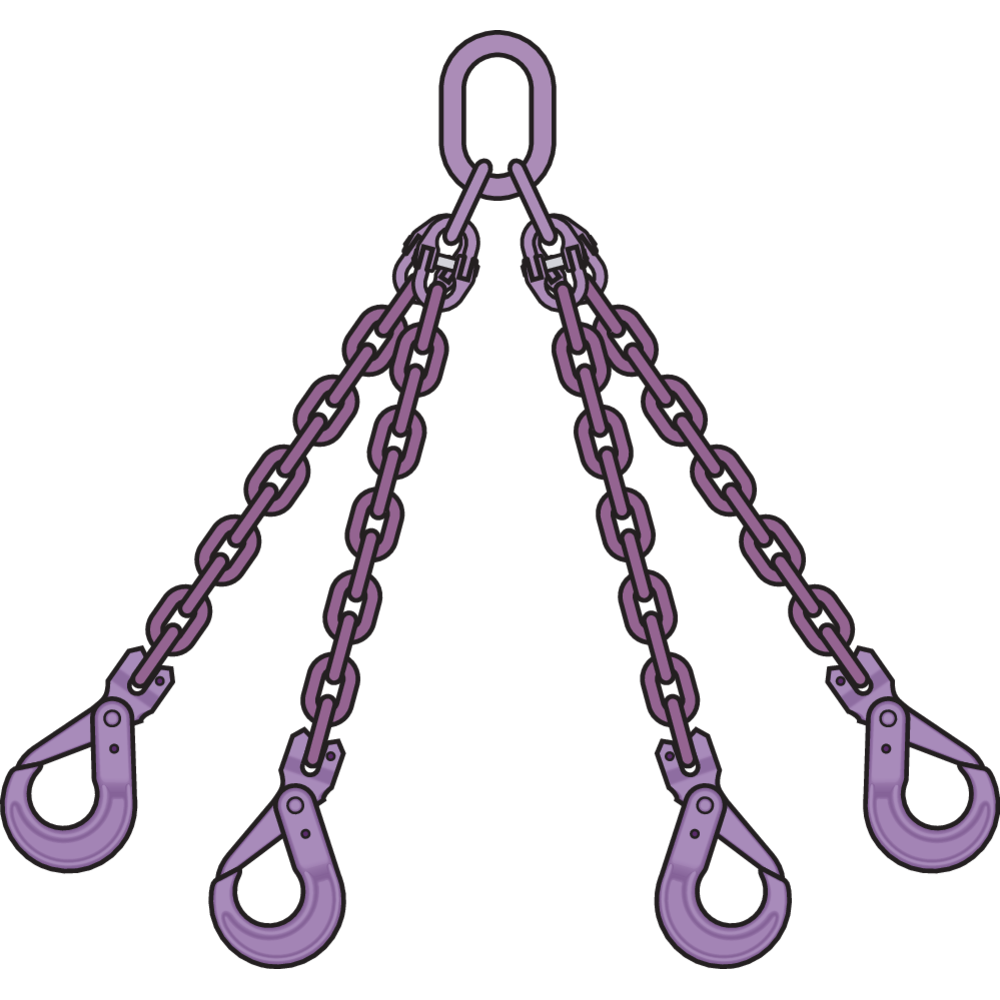

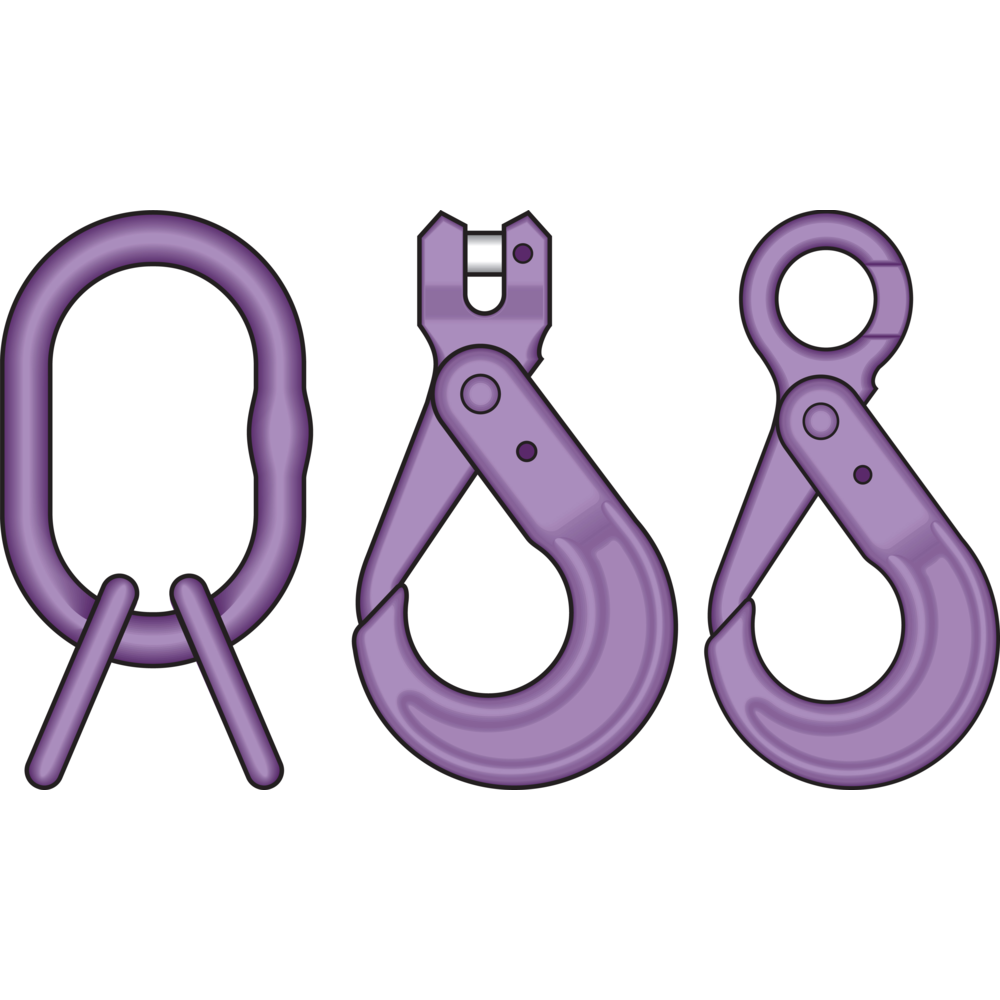

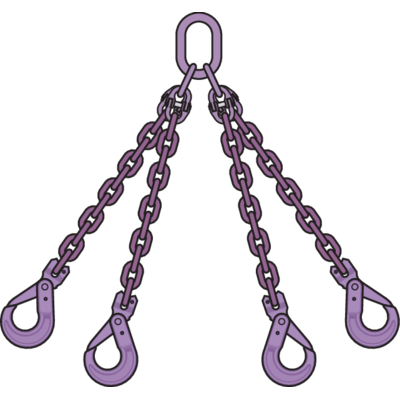

Design: Chain sling with master link on one end and clevis safety hook on the other end of each leg.
ø 19 and 22 mm chain are fitted with eye safety hooks. Other combinations possible on demand.

Dimensions: Ø 6–22 mm (other dimensions on demand).

  • Material: Alloy steel.
  • Marking: According to standard, CE-marked
  • Temperature range: -40°C up to 200°C (up to 380° possible on demand)
  • Standard: EN 818-4
  • Warning: Not to be heat-treated.
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL
11.91CSX47606XXX 3
11.91CSX47608XXX 5,3
11.91CSX47610XXX 8
11.91CSX47613XXX 14
11.91CSX47616XXX 21,2
11.91CSX47619XXX 30
11.91CSX47622XXX 40

XXX= the length in three digits (1 m = 010, 1,5 m = 015)

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
