Safety Hook HSB/S Grade 100 - Eye

Home / Products / Chains & components / Chain hooks / Safety Hook HSB/S

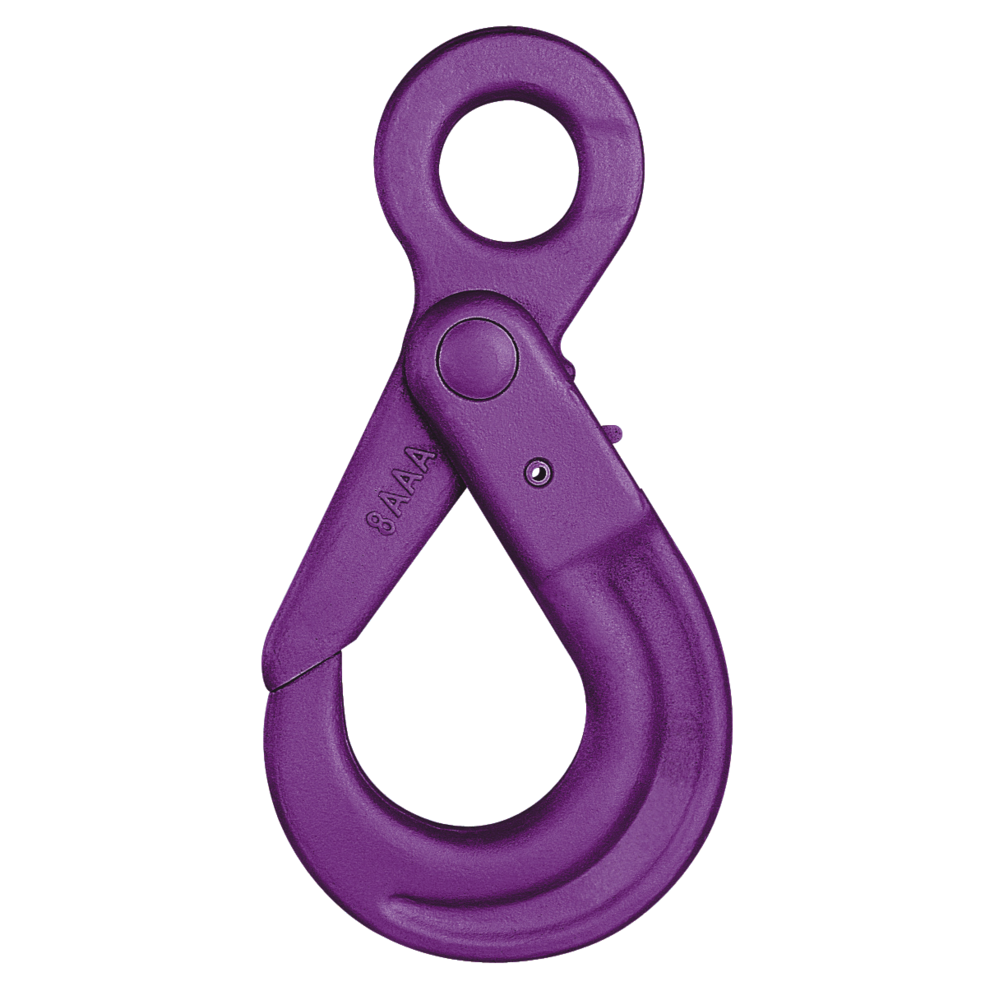

Grade 100 safety hook with Eye

WARNING! Not to be heat-treated.

Material: Alloy steel grade 100.
Marking: According to standard, Code and grade.
Finish: Painted.
Standard: EN 1677-3

Safety factor: 4:1.
Grade: 10

Select a row from the table below, then click the add to quote button

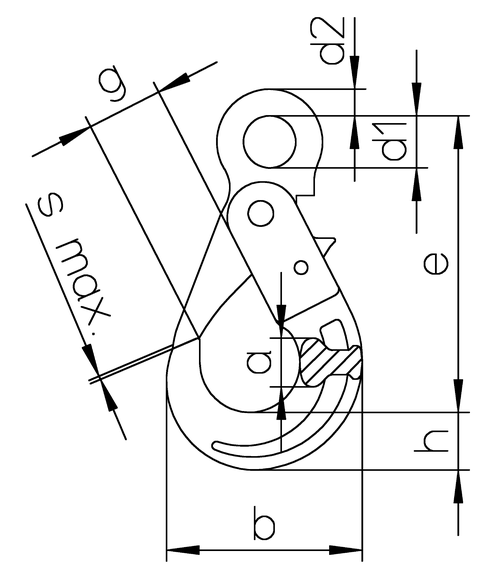

Part Code	Code	WLL ton	A mm	B mm	D1 mm	D2 mm	e mm	g mm	h mm	Weight kg
11.1666588	HSB/S-6-10	1,4	17	71	21	11	110	28	20	0,5
11.1666589	HSB/S-7/8-10	2,5	20	88	27	12	136	34	26	0,9
11.166659	HSB/S-10-10	4	29	107	34,5	15	169	45	30	1,5
11.1666591	HSB/S-13-10	6,7	35	138	40	20	205	52	40	2,7
11.1666592	HSB/S-16-10	10	41	168	50	27	251	60	50	5,7
11.1669964	HSB/S-19/20-10	16	50	194	60	30	290	70	62	7,9
11.1669965	HSB/S-22-10	19	52	211	70	32	322	81	65	11
