General:
- Standard Reeve Crane Blocks may be used on a wide variety of land based cranes such as mobile and crawler cranes. They are an excellent choice where frequent block change is required.
- Double sealed maintenance free roller bearings.
- Design Factor of Safety of 4:1.
- Forged high tensile steel DIN hooks.
- Ductile iron sheaves, featuring graphite lubricated groove.
- High impact resistant side plates.
- Operational temperature range -40 up to +80°C.
- Lubrication on hook suspension.
- 4 or 8 point hook locking device.
- Fast reeve guide for fast reeving.
- Safety latch with locking pin.
- C3M finish in signal yellow with black striping.

Options:
- Double hook.
- Double hook with shackle hole.
- Quad hook.
- Shackle stud eye.

Important:
Inquiries for custom versions are welcome!

Product Picture 1
Product Picture 2

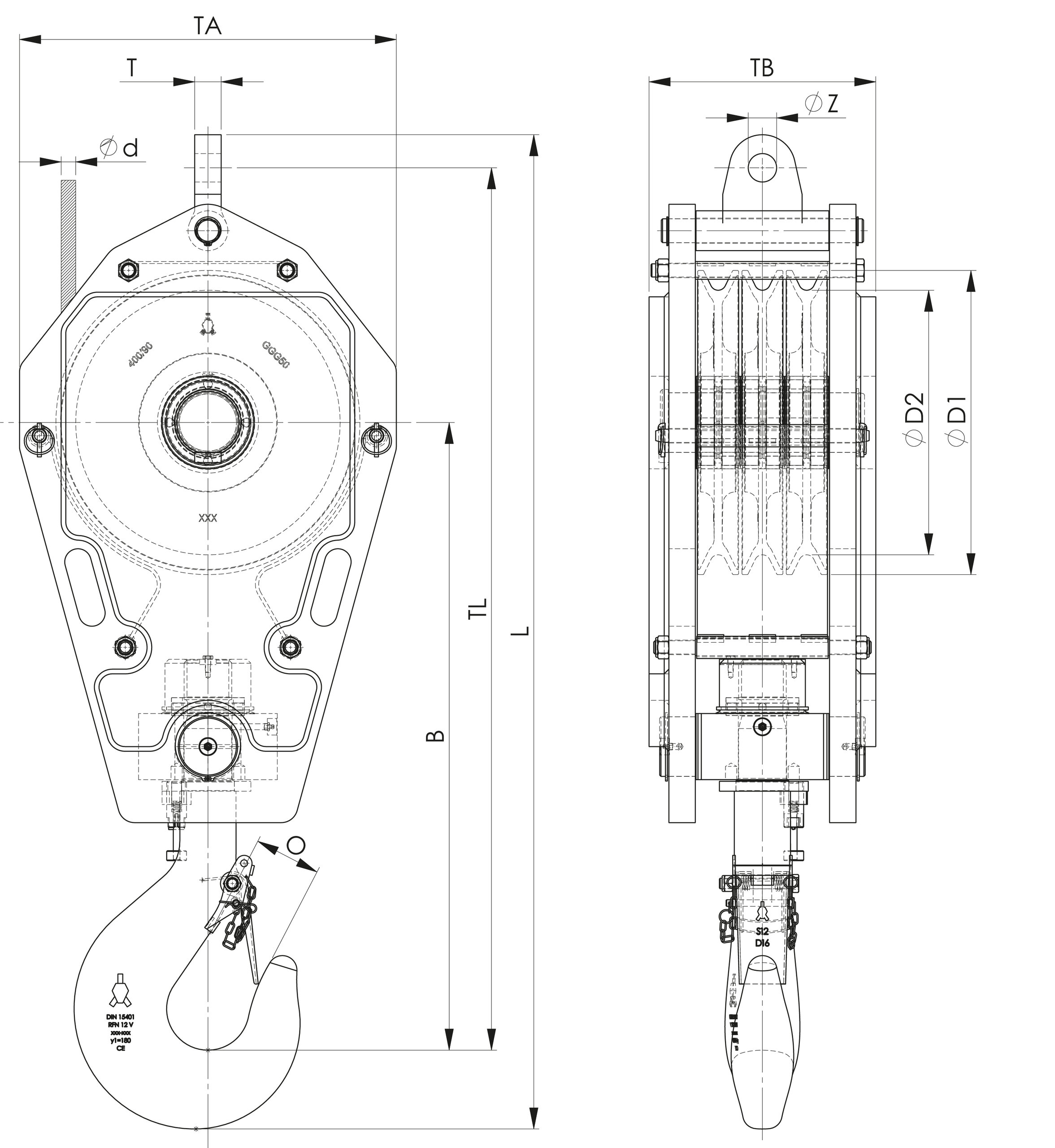

Select a row from the table below, then click the add to quote button
WLL
ton
Model no. For wire Ø
mm
Hooksize Ø D1
mm
Ø D2
mm
B
mm
O
mm
TA
mm
TB
mm
TL
mm
L
mm
T
mm
Ø Z
mm
Weight
kg
CAD
20 FRB 225 .14 .3 .20 .E 14 8 260 225 718 69 345 180 993 1 128 28 32 130
20 FRB 320 .16 .3 .20 .E 16 8 365 320 763 69 450 180 1 096 1 231 28 32 160
20 FRB 260 .14 .3 .20 .E 14 8 300 260 723 69 400 220 1 018 1 153 28 32 185
25 FRB 320 .16 .3 .25 .E 16 8 365 320 763 69 450 220 1 096 1 231 28 32 205
25 FRB 260 .14 .3 .25 .E 14 8 300 260 698 69 400 260 993 1 128 28 32 210
29 FRB 285 .16 .3 .29 .E 16 8 320 280 703 69 420 180 1 013 1 148 28 32 210
29 FRB 320 .16 .3 .29 .E .A 16 8 365 320 763 69 450 220 1 096 1 231 28 32 210
29 FRB 320 .16 .3 .29 .E .B 16 8 365 320 763 69 450 230 1 096 1 231 28 32 225
32 FRB 355 .19 .3 .32 .E 19 10 410 355 863 76 500 280 1 208 1 359 35 37 370
40 FRB 360 .19 .3 .40 .E 19 12 420 360 899 84 510 342 1 254 1 417 35 37 455
40 FRB 400 .19 .3 .40 .E 19 12 460 400 928 84 570 343 1 323 1 486 35 37 500
50 FRB 400 .19 .3 .50 .E 19 16 460 400 949 97 570 343 1 324 1 501 35 37 540
50 FRB 400 .22 .3 .50 .E 22 16 460 400 949 97 570 343 1 324 1 506 40 43 540
50 FRB 360 .19 .3 .50 .E 19 16 420 360 899 97 510 402 1 254 1 431 35 37 555
63 FRB 450 .22 .3 .63 .E 22 16 515 450 1 038 97 600 303 1 448 1 630 40 43 600
63 FRB 450 .24 .3 .63 .E .A 24 16 515 450 1 038 97 600 313 1 454 1 646 45 52 650
63 FRB 450 .26 .3 .63 .E .A 26 16 515 450 1 038 97 600 313 1 461 1 653 45 52 650
63 FRB 450 .24 .3 .63 .E .B 24 16 515 450 1 038 97 600 363 1 454 1 646 45 52 770
63 FRB 450 .26 .3 .63 .E .B 26 16 515 450 1 038 97 600 363 1 461 1 653 45 52 770
80 FRB 450 .26 .3 .80 .E 26 20 515 450 1 182 110 600 362 1 605 1 815 45 52 810
80 FRB 528 .24 .3 .80 .E 24 20 595 528 1 272 110 710 412 1 736 1 946 45 52 1 130
80 FRB 528 .26 .3 .80 .E 26 20 595 528 1 272 110 710 412 1 736 1 946 45 52 1 130
80 FRB 528 .28 .3 .80 .E 28 20 595 528 1 272 110 710 412 1 751 1 971 50 59 1 130
100 FRB 528 .26 .3 .100 .E 26 25 595 528 1 363 132 710 462 1 826 2 056 45 52 1 360
100 FRB 528 .28 .3 .100 .E 28 25 595 528 1 363 132 710 462 1 841 2 081 50 59 1 360
100 FRB 575 .28 .3 .100 .E 28 25 650 575 1 303 132 770 432 1 808 2 048 50 59 1 360
125 FRB 670 .28 .3 .125 .E 28 25 760 670 1 428 132 870 622 1 993 2 233 50 59 2 900
125 FRB 670 .32 .3 .125 .E 32 25 760 670 1 428 132 870 622 1 993 2 238 60 66 2 900

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
