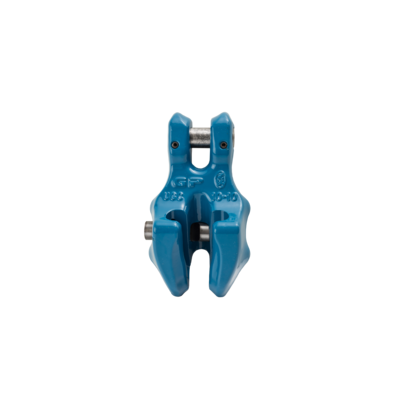

Green Pin

Certification: at no extra charge this product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity

  • Material: alloy steel, quenched and tempered
  • Temperature range: -40°C up to +200°C
  • Finish: painted blue
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

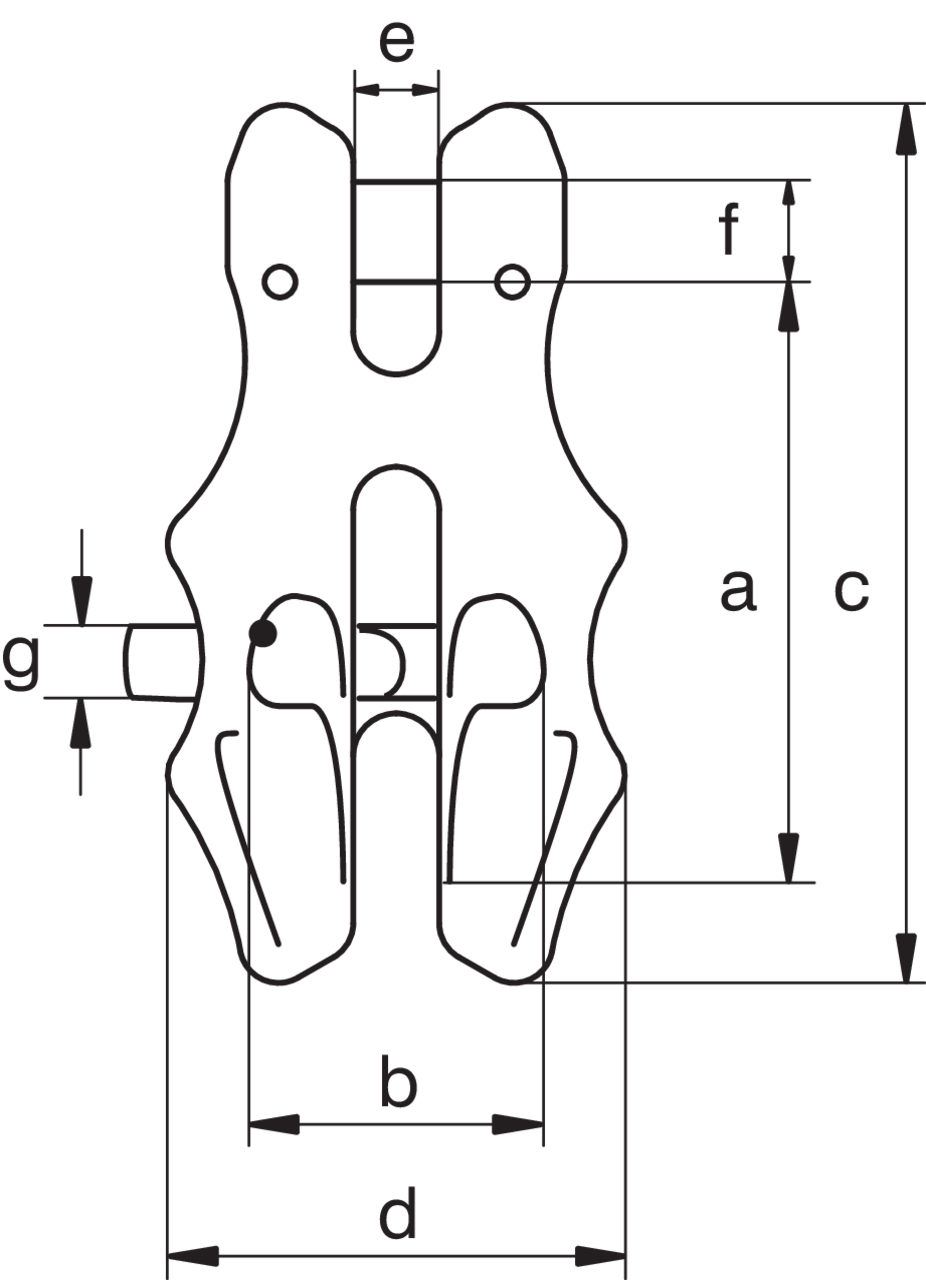

Part Code WLL
ton
For chain diameter inch for chain ø
mm
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
Weight
kg
CAD
11.21UGCV6 1,4 7/32 6 51 23 75 42 7 8 7 0,23
11.21UGCV8 2,6 5/16 8 67 30 94 50 9 10 8 0,44
11.21UGCV10 4 3/8 10 79 38 116 63 12 13 12 0,76
11.21UGCV13 6,8 1/2 13 103 49 149 79 15 16 16 1,67
11.21UGCV16 10,3 5/8 16 128 60 184 99 19 20 20 3,1

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
