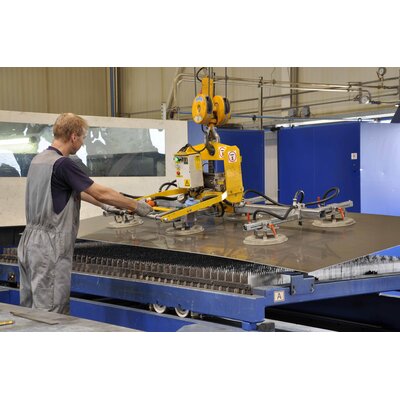

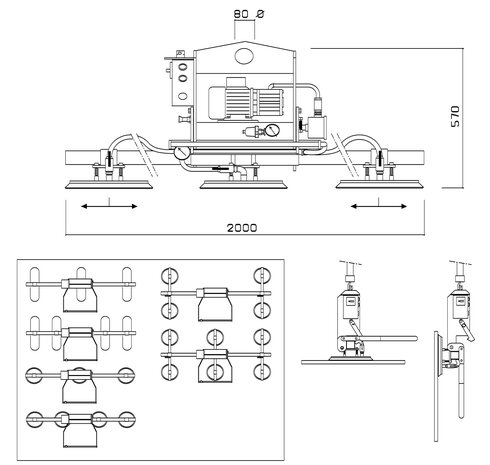

Vauum lifting device for lifting sheet material, aluminium, stainless steel, plastics etc. in various dimensions up to 1000kg weight, with a smooth or structured surface. Can be supplied in various configurations with 1 main beam only, or with 1 main beam and 2 or more cross beams. Standard type for horizontal use or special version with tilting possibility for vertical and horizontal use. Including built in vacuum pump. Complete with optical and accoustic warning system.
Contact us for all possibilities!
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
