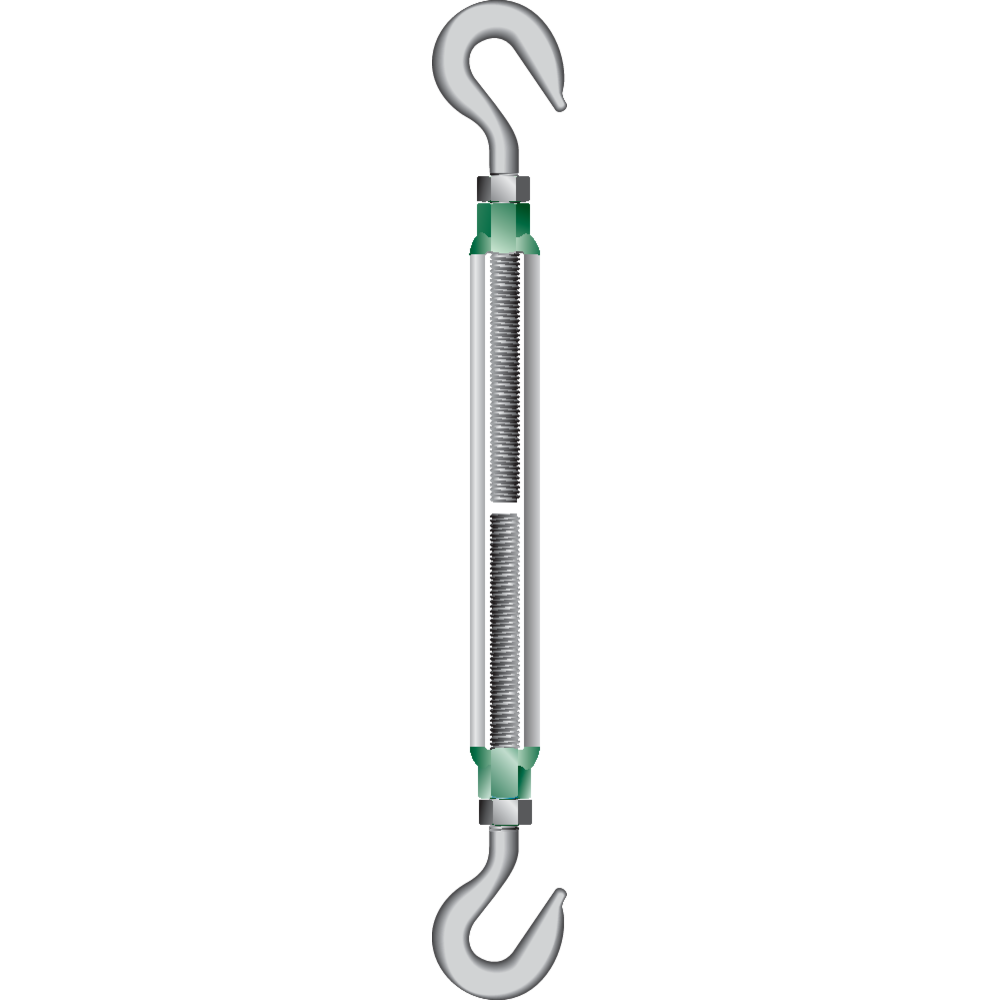

The Green Pin® HH Turnbuckle is a turnbuckle with hook-hook end-fittings, generally to ASTM F1145-92. One of the unique features of Green Pin® Turnbuckles such as this one is that they can be used for both lifting and lashing. Galvanization of the Green Pin® HH Turnbuckle ensures its long-term durability. The turnbuckle is available in a range with a diameter thread of 3/8" (take up of 6") up to 1" (take up of 24").
Certification on request: 2.1, 2.2, 3.1, MTCa
Standard: Generally to ASTM F1145-92 formerly U.S. Federal Specification FF-T-791b.
- Material: Drop forged high tensile steel SAE 1035 or 1045.
- Marking: CE-marked
- Temperature range: -20°C up to +200°C
- Finish: Hot dip galvanized.
- Safety factor: 5:1
