General:
Closed body Turnbuckles stud eye/stud eye with trapezoid thread. Standard supplied with lock nuts.

Features:
- Standard painted blue, but can be supplied in any colour or galvanised.
- Available in all combinations of eyes, stud eyes and welding ends.
- Lock plates or special locking devices possible.
- Can be supplied with turning wheel or rachet.
- Other sizes possible.



  • Temperature range: -40°C t/m +110° C at 100% capacity rating. Higher temperature possible with reduction of WLL.
  • Warning: Straight or in-line pull only.
  • Safety factor: 5:1
Select a row from the table below, then click the add to quote button

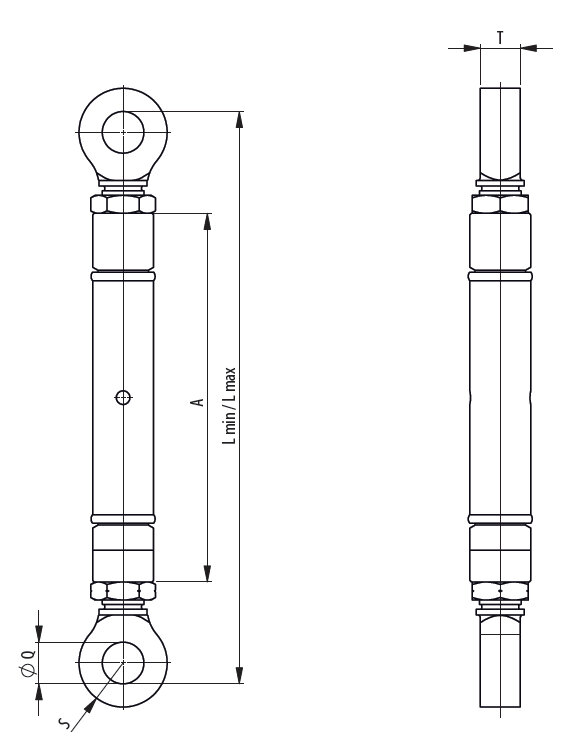

Part Code WLL
ton
Take up
mm
Thread trap. L min.
mm
L max.
mm
A
mm
Q
mm
S
mm
T
mm
Weight
kg
CAD
11.55410016033 1,6 167 22 x 5 349 516 240 23 22,5 20 2
11.55410020033 2 181 24 x 5 377 558 260 25 25 22 3
11.55410025033 2,5 215 28 x 5 411 626 280 27 27,5 25 5
11.55410031033 3,1 225 30 x 6 455 680 300 30 30 28 5
11.55410040033 4 232 32 x 6 474 706 320 33 32,5 30 6
11.55410050033 5 242 36 x 6 536 778 340 39 37,5 35 11
11.55410063033 6,3 270 44 x 7 579 849 380 42 42,5 40 12
11.55410080033 8 296 48 x 8 657 953 420 48 47,5 45 16
11.55410100033 10 306 52 x 8 714 1 020 460 52 55 50 23
11.55410126033 12,6 352 55 x 9 762 1 114 500 56 60 55 40
11.55410160033 16 366 65 x 10 860 1 226 540 65 65 60 55
11.55410200033 20 380 70 x 10 904 1 284 580 74 70 65 69
11.55410250033 25 402 75 x 10 972 1 374 620 78 75 70 72
11.55410315033 31,5 438 80 x 10 1 038 1 476 660 86 85 80 78
11.55410400033 40 464 90 x 10 1 186 1 650 695 96 95 90 136
11.55410500033 50 520 100 x 10 1 286 1 806 770 106 105 100 160
11.55410630033 63 564 110 x 10 1 406 1 970 845 116 115 110 220
11.55410800033 80 630 120 x 10 1 541 2 171 920 131 135 125 280
11.55411000033 100 720 130 x 10 1 662 2 382 995 146 148 140 370
11.55411250033 125 752 140 x 10 1 804 2 556 1 070 168 168 160 500
11.55411600033 160 880 160 x 10 2 028 2 908 1 220 188 190 180 725
