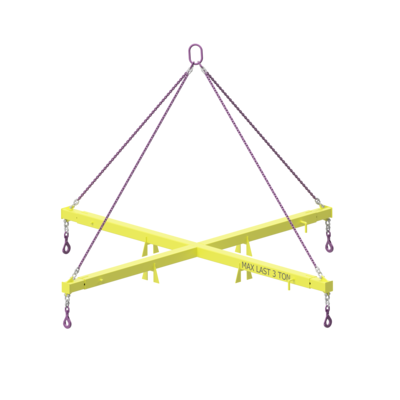

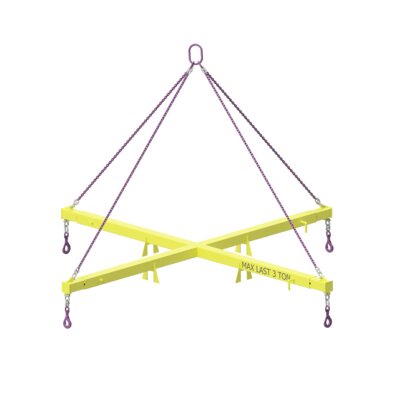

General: The X-frames have a high point of oscillation which results in good balance. The table only shows a few examples of available sizes. Other lengths and working loads can be manufactured to suit a customers requirements. The frames can be provided with accessories such as hooks, wire rope slings, chain slings or textile slings. Please also refer to our description in the introduction to this section on lifting beams.

  • Marking: Working load limit and CE marking.
  • Finish: Yellow painted (other colours on request)
Select a row from the table below, then click the add to quote button
Part Code WLL
13.356640KRTL050xxxzzz 0,5 1-6 1-6
13.356640KRTL010xxxzzz 1 1-6 1-6
13.356640KRTL020xxxzzz 2 1-6 1-6
13.356640KRTL030xxxzzz 3 1-6 1-6
13.356640KRTL040xxxzzz 4 1-6 1-6
13.356640KRTL050xxxzzz 5 1-6 1-6
13.356640KRTL060xxxzzz 6 1-6 1-6
13.356640KRTL080xxxzzz 8 1-6 1-6
13.356640KRTL100xxxzzz 10 1-6 1-6
13.356640KRTL120xxxzzz 12 1-6 1-6
13.356640KRTL150xxxzzz 15 1-6 1-6
13.356640KRTL200xxxzzz 20 1-6 1-6
13.356640KRTLyyyyxxxzzz 1-6 1-6 >20 Ton
* Specified lifting beam lengths are standard lengths, other lengths and loads upon request.
xxx: length in 3 digits eg. 5,5m = 055 / zzz: width in 3 digits eg. 5,5m = 055 / yyyy: WLL in 4 digits eg. 55ton = 0550
