Double Swivel Shackle Codipro DSS UP

Home / Products / LIFTING EQUIPMENT / Chain & components / Double Swivel Shackle Codipro DSS UP

The universal swivel shackle DSS is a double swivel ring. It is specially designed for simultaneously lifting and rotating heavy loads. Its double swivel action ensures perfect alignment with the sling.

Features:

Swiveling under load
Usable for any kind of lifting operation
The tightening torque is stamped on all lifting rings in the GRADUP range.

Grade: GRADEUP (8+)

Material: High tensile steel
Marking: According to standard, CE-marked
Standard: EN 1677-1
except grade/WLL
Note: On request the product can be certified for lashing.

Safety factor: 5:1
Grade: 8

Select a row from the table below, then click the add to quote button

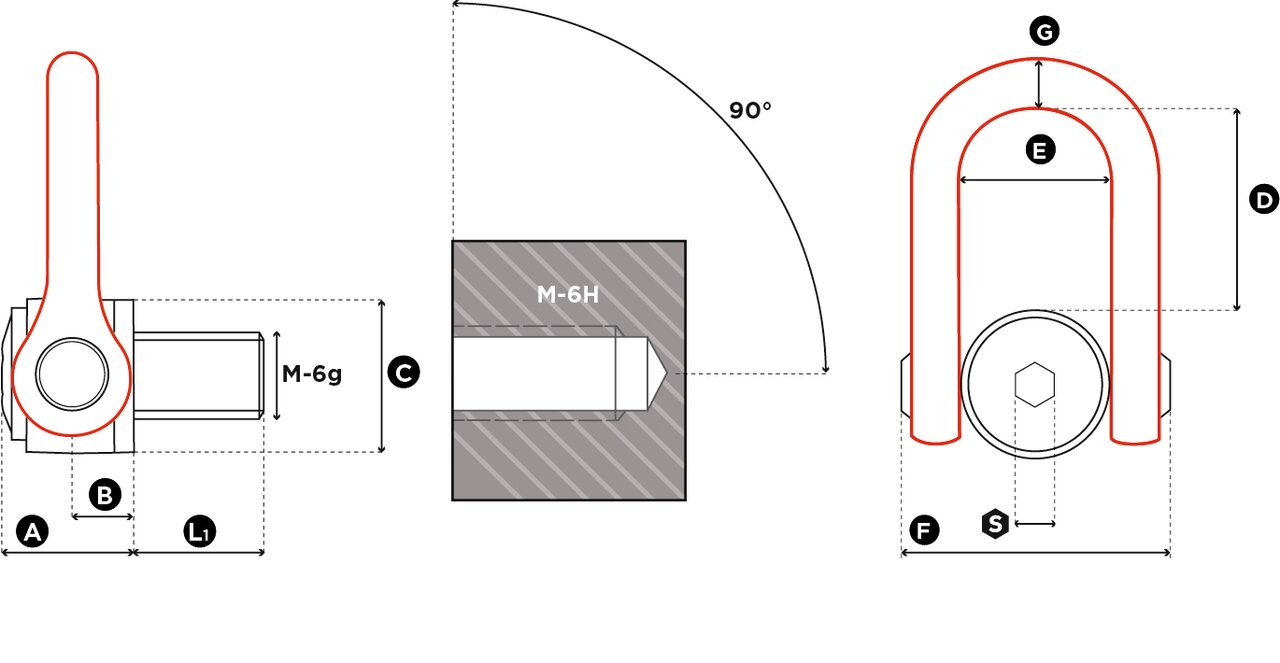

Part Code	WLL ton	Thread	Torque Nm	StandardL1 mm	S mm	A mm	B mm	C mm	D mm	E mm	F mm	G mm	Weight kg
11.42DSS M 24 UP	4,5	M 24 (x3)	160	36	19	61	31	70	104	73	149	33	5,4
11.42DSS M 30 UP	7,7	M 30 (x3.5)	250	45	19	61	31	70	104	73	149	33	5,5
11.42DSS M 33 UP	8,5	M 33 (x3.5)	250	50	19	61	31	70	104	73	149	33	5,5
11.42DSS M 36 UP	11	M 36 (x4)	320	54	19	61	31	70	104	73	149	33	5,5
11.42DSS M 36X3 UP	11	M 36 (x3)	320	54	19	61	31	70	104	73	149	33	5,5
11.42DSS M 39 UP	12	M 39 (x4)	320	58	19	61	31	70	104	73	149	33	5,7
11.42DSS M 42 UP	13	M 42 (x4,5)	400	63	19	61	31	70	104	73	149	33	5,8
11.42DSS M 42X3 UP	13	M 42 (x3)	400	63	19	61	31	70	104	73	149	33	5,8
11.42DSS M 45 UP	14,5	M 45 (x4,5)	400	63	19	61	31	70	104	73	149	33	5,9
11.42DSS M 48X3 UP	17	M 48 (x3)	600	68	19	79	38	90	125	91	182	45	11
11.42DSS M 48X4 UP	17	M 48 (x4)	600	68	19	79	38	90	125	91	182	45	11
11.42DSS M 48 UP	17	M 48 (x5)	600	68	19	79	38	90	125	91	182	45	11
11.42DSS M 52 UP	19	M 52 (x5)	600	68	19	79	38	90	125	91	182	45	12,2
11.42DSS M 56 UP	22	M 56 (x5,5)	600	78	19	79	38	90	125	91	182	45	11,3
11.42DSS M 56X4 UP	22	M 56 (x4)	600	78	19	79	38	90	125	91	182	45	11,4
11.42DSS M 72 UP	22	M 72 (x6)	600	90	19	79	38	95	125	91	182	45	14
11.42DSS M 72X4 UP	22	M 72 (x4)	600	90	19	79	38	95	125	91	182	45	14
11.42DSS M 64 UP	25	M 64 (x6)	600	90	19	79	38	95	125	91	182	45	12,2
11.42DSS M 64X4 UP	25	M 64 (x4)	600	90	19	79	38	95	125	91	182	45	12,2
11.42DSS M 80 UP	25	M 80 (x6)	600	90	19	79	38	100	125	91	182	45	15
11.42DSS M 90 UP	25	M 90 (x6)	600	90	19	79	38	100	125	91	182	45	15,5
11.42DSS M 100 UP	25	M 100 (x6)	600	90	19	79	38	110	125	91	182	45	16,5

UNC thread also available: from UNC 1" to UNC 2"1/2

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
