General:
Manual Lever Hoist for loads from 250 up to 3,000 kg.
Standard lifting height 1.5 mtr (other lengths possible)
The PLV manual lever hoist is a compact unit for lifting, pulling and sliding. Especially suitable for industrial use. Easy to handle, this convenient unit is ready for all sorts of jobs anywhere at the production or building. Great for tight spots where headroom is limited.

Technical characteristics:
- Four good-looking, robust, compact lightweight, easy handling models.
- PLV can be used in any position ; simply switch the lever to make the PLV easier to handle.
- Made with special steels, PLV lever hoists are very compact.
- The lever hoist – a new concept combining good looks with reliability.
- Chrome-plated steel hoist and lever.
- Reinforced casing effectively protects mechanisms.
- Lever rotates 360°.
- Rubber grip.
- Weston-type load brake with four braking surfaces.
- Braking mechanism fully protected against dust and splashing.
- Extra-safe, lightweight and low-maintenance.
- Chain can be declutched when winch is not loaded.
- High-strength grade 80 steel alloy load chain. Galvanized for corrosion resistance.
- Load chain complies with EN 818, safety factor 4.
- Made in Europe.
- Delivered with CE certificate, and hook and chain certificate.
- Treated steel alloy upper and lower ISO turning hooks with safety latches and inspection points.




  • Marking: CE-marked
Product Image 1
Product Image 2
Select a row from the table below, then click the add to quote button

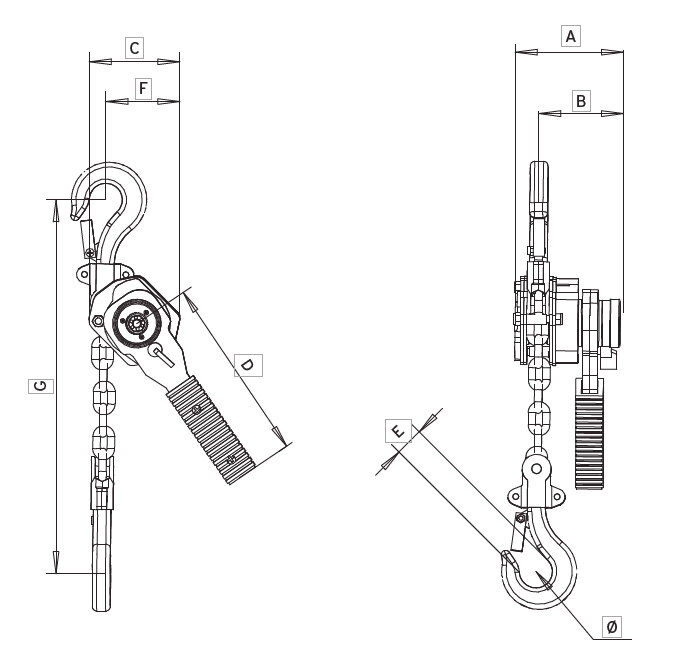

Part Code Code WLL
ton
Lifting height
m
Number of falls Chain diam.
mm
A
mm
B
mm
C
mm
D
mm
E
mm
F
mm
G
mm
Ø
mm
Weight
kg
CAD
16.20PLV0250015 PLV1 0,25 1,5 1 4 92 71 70 168 20 50 245 31 2,1
16.20PLV0750015 PLV2 0,75 1,5 1 6 149 89 128 308 26 85 310 37 6,2
16.20PLV1500015 PLV3 1,5 1,5 1 7 171 102 145 408 36 130 385 45 9,5
16.20PLV3000015 PLV4 3 1,5 1 10 204 114 203 418 44 150 460 55 20,2

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
