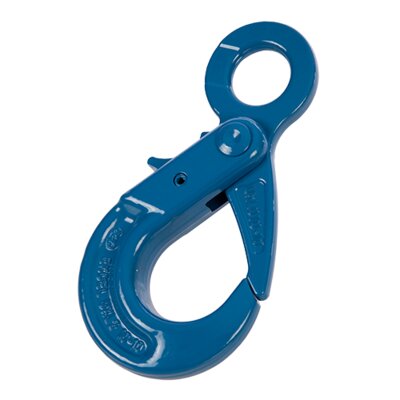

Green Pin

Certification: at no extra charge this product can be supplied with a works certificate, a 3.1 material certificate and/or Declaration of Conformity

  • Material: alloy steel, quenched and tempered
  • Temperature range: -40°C up to +200°C
  • Finish: painted blue
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code WLL
ton

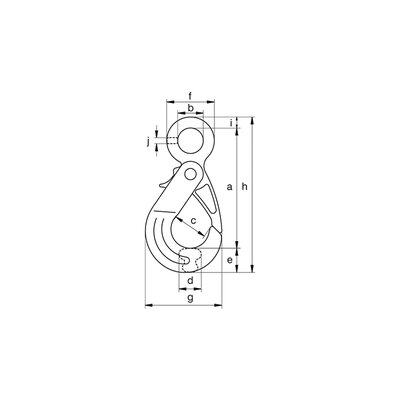

For chain diameter inch for chain ø
mm
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
h
mm
i
mm
j
mm
Weight
kg
CAD
11.15UXLO0 1,4 7/32 6 111 24 32 16 26 47 77 147 11 7 0,51
11.15UXLO1 2,6 5/16 8 134 29 43 23 29 57 92 176 14 7 0,91
11.15UXLO2 4 3/8 10 168 35 47 32 35 69 111 219 17 10 1,79
11.15UXLO3 6,8 1/2 13 199 46 61 37 45 87 142 264 20 13 3,36
11.15UXLO4 10,3 5/8 16 247 59 74 43 56 111 185 328 26 16 7
