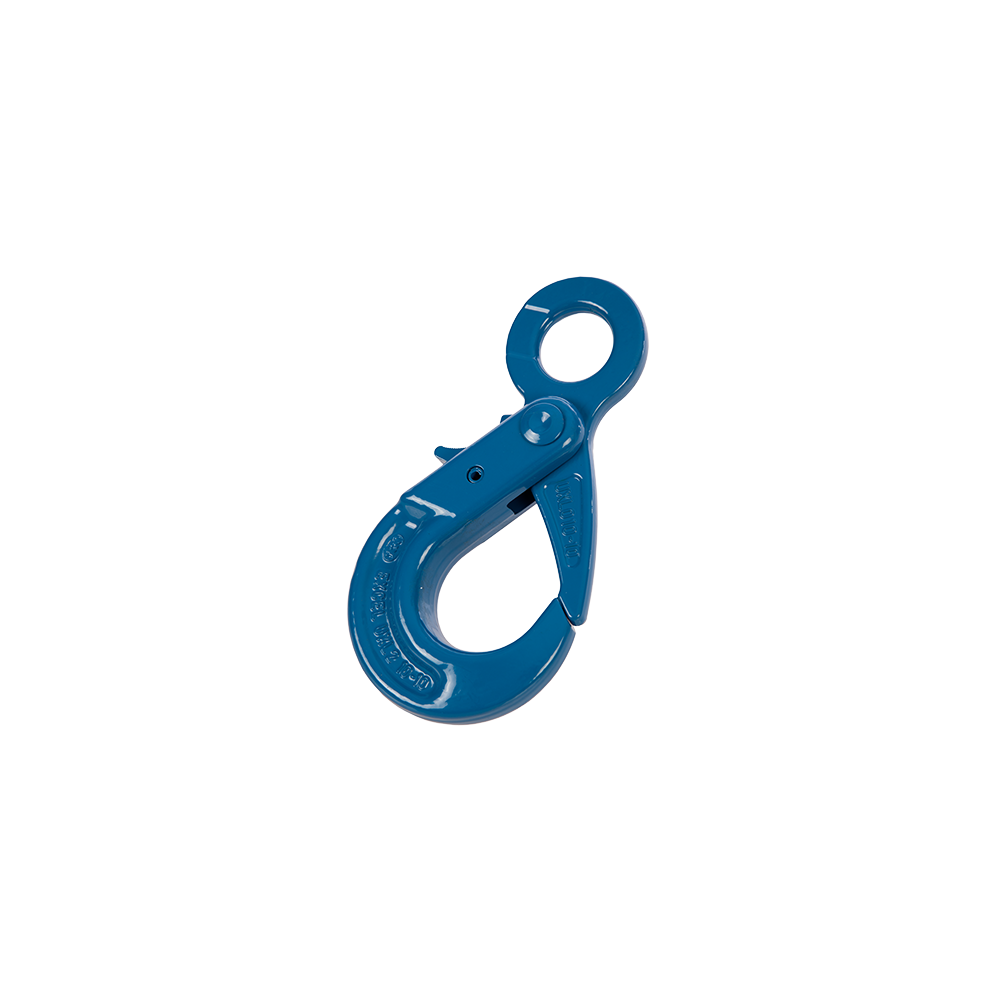

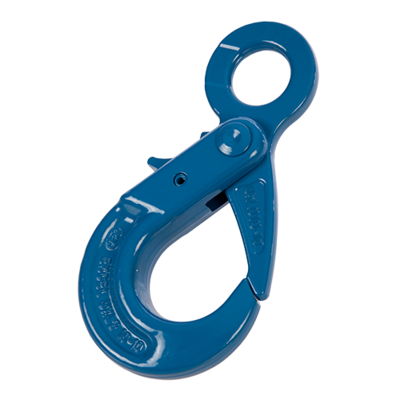

The Green Pin® Self-Locking Hook E is a grade 10 eye self-locking hook. The self-locking hook locks automatically as soon as it is brought under tension. To release the load the user must manually unlock the hook, which prevents unintended release. This hook brings a full safety for lifting as the latch cannot be removed. The eye of the hook can be connected to grade 10 chain with a connecting link, to a webbing with a web sling connector or to a wire rope with a thimble. The flat on the eye enables the assembly with an omega link or on a thimble. The Green Pin® Self-Locking Hook E is available in a range to suit 6 mm up to 20 mm grade 10 chain.
Certification on request: 2.1, 2.2, 3.1, MTCa, MPIb, DGUV
- Material: Alloy steel, quenched and tempered
- Temperature range: -40°C up to +200°C
- Finish: Painted blue
- Safety factor: 4:1
- Grade: 10
