• Safety factor : MBL equals 6 x WLL
• Standard : generally to DIN 580

• Certification : at no extra charges this product can be supplied with a works certificate and/or EC Declaration of Conformity. Test certificates can be supplied upon request
  • Material: carbon steel, C15
  • Finish: self coloured or electro-galvanized
  • Safety factor: 6:1
Select a row from the table below, then click the add to quote button
WLL
ton

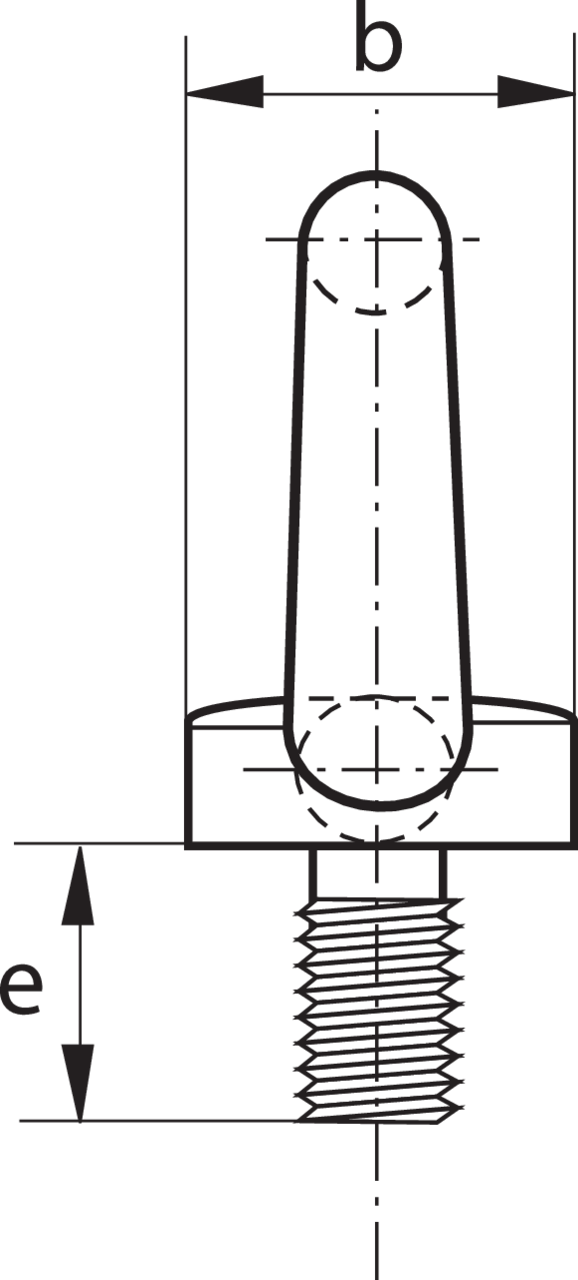

diameter base b
mm
diameter eye outside c
mm

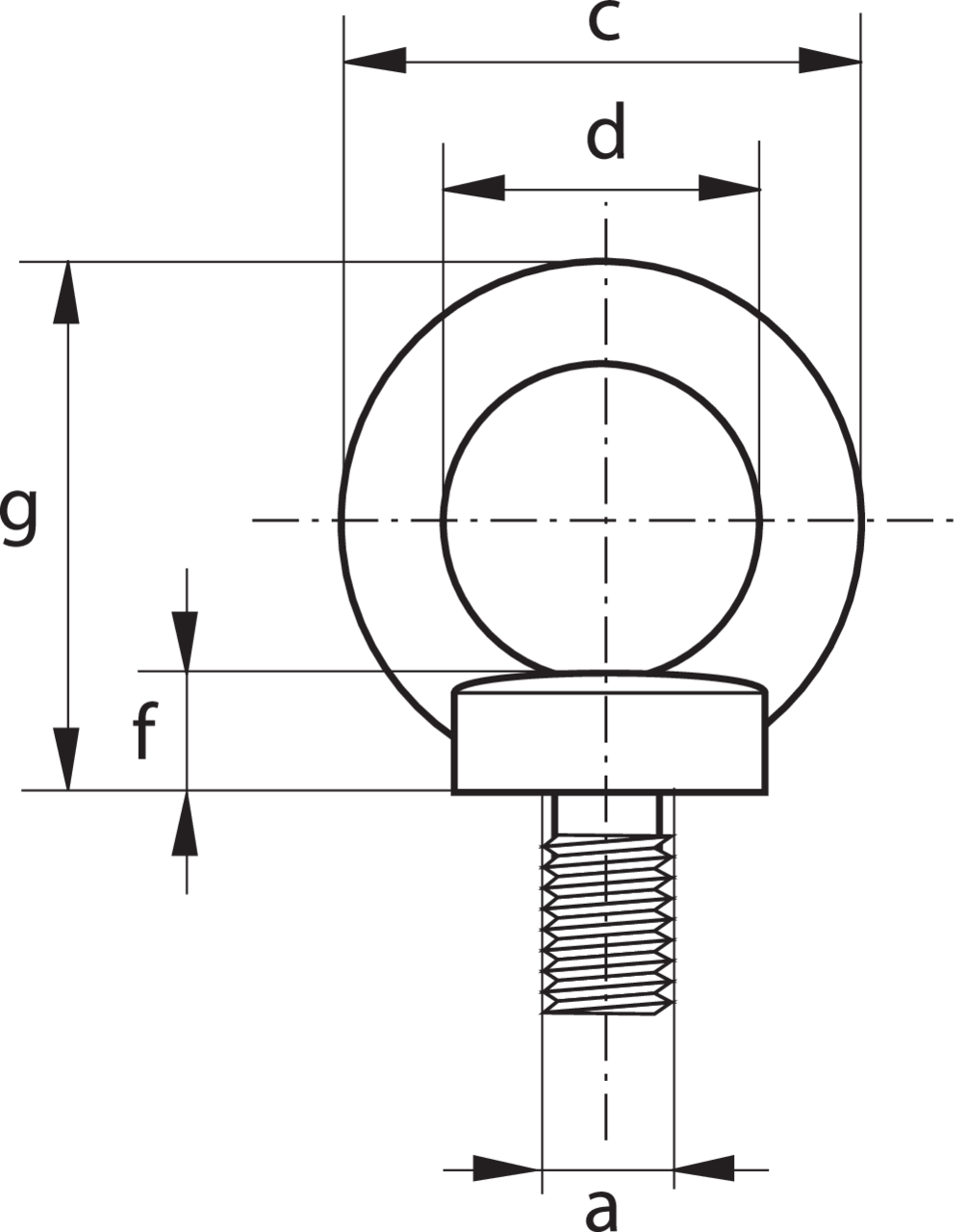

height g
mm
thickness base f
mm
Thread a diameter eye inside d length e Weight
kg/100pc
CAD
0,07 20 36 36 6 M6x1.00 20 13 5,1
0,14 20 36 36 6 M8x1.25 20 13 5,5
0,23 25 45 45 8 M10x1.5 25 17 10,3
0,34 30 54 53 10 M12x1.75 30 20,5 16,9
0,49 35 63 60 12 M14x2.00 35 27 29,9
0,7 35 63 62 12 M16x2.00 35 27 30,7
0,9 40 72 71 14 M18x2.50 40 30 42,8
1,2 40 72 71 14 M20x2.5 40 30 42,4
1,5 45 81 80 14 M22x2.5 45 35 62,8
1,8 50 90 90 18 M24x3.00 50 36 90,8
2,5 50 90 90 18 M27x3.00 50 36 88,3
3,2 65 108 109 22 M30x3.50 60 45 159
4,3 65 108 110 22 M33x3.50 60 45 167
4,6 75 126 128 26 M36x4.00 70 54 235
6,1 75 126 130 26 M39x4.00 70 54 266
6,3 85 144 147 30 M42x4.50 80 63 403
8 85 144 150 35 M45x4.50 80 63 521
8,6 100 166 168 35 M48x5.00 90 68 632
11,5 110 184 187 38 M56x5.50 100 78 879
16 120 206 208 42 M64x6.00 110 90 1 240
21 150 260 260 50 M72x6.00 140 100 2 293
28 170 296 298 55 M80x6.00 160 112 3 200
40 190 330 330 60 M100x6.00 180 130 4 800
