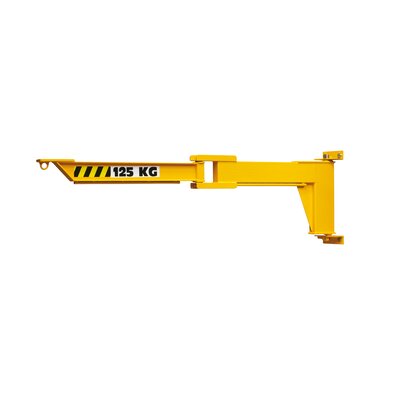

This articulated jib crane has a very reduced headroom. His first arm can rotate 180 degrees and the second 300 °. The articulated structure facilitates the movement of loads in a cluttered environment. This model is restricted to only manual rotations.
The PMA are delivered with standard mounting brackets and our mounting kits KITFIX (optional) ensure safe anchorages for specific supports.
A full range of accessories is available.

Options
•Hoist power supply cable + lockable main switch.
•Standpipe.
•Rotation slowing device (adaptable without welding or mechanical intervention).
•Option of a slowing device on each arm.
•Hot dip galvanizing (contact us).
•Rotation stops to weld onto the assembly.
•Single- or multipositions rotation lock (arm 1 only).
•Electric or manual hoist.
•Outdoor use.

Select a row from the table below, then click the add to quote button
Cap.
kg
Span
m 2,0
Span
m 2,5
Span
m 3,0
Span
m 3,5
Span
m 4,0
Span
m 4,5
Span
m 5,0
CAD
125
250
