KWB

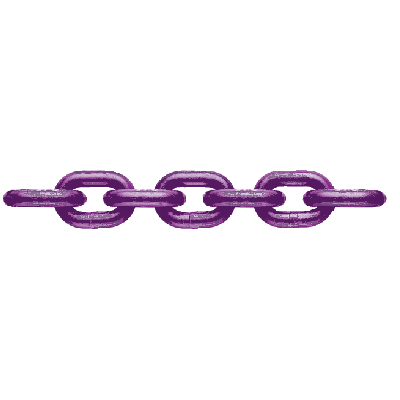

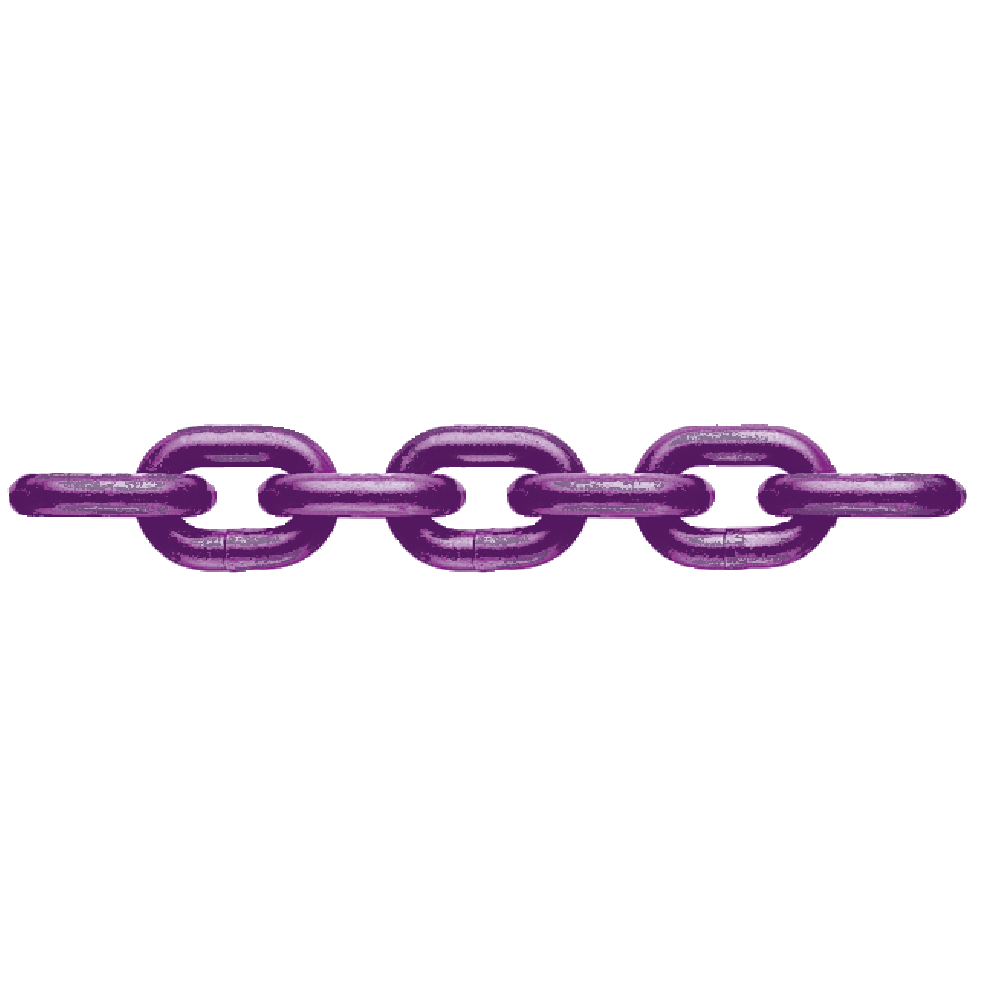

General: Chain for lifting or lashing (other safety factor).  Available in 2 different qualities
Star Alloy (SA/S):

  • Working temperature: max. 200ºC
  • Grade Marking: "10" on link every 300mm (up to 16mm) others every 900 mm.
  • Surface: Purple varnished

Star Alloy Plus+ (SAP/S): for working temperatures up to 380°C (Available on request)

  • Material: Alloy steel.
  • Marking: According to standard, grade marking "10"
  • Temperature range: Star Alloy SA/S: -40°C up to 200°C - Star Alloy Plus+ SAP/S: -40°C up to 380°C
  • Standard: EN 818-2
    higher capacity
  • Warning: Not to be heat treated.
  • Safety factor: 4:1 for lifting.
  • Grade: 10
Select a row from the table below, then click the add to quote button
Part Code Chain diameter
mm
WLL
ton
Min. breaking force
kN
L min.
mm
L max
mm
Pitch P
mm
Weight
kg/m
11.6570261 6 1,4 56,5 9 22 18 0,96
11.6570264 7 1,9 77 10 25 21 1,2
11.6570267 8 2,5 100 11 29 24 1,57
11.6570270 10 4 157 14 36 30 2,46
11.6570273 13 6,7 266 18 47 39 4,18
11.6570275 16 10 402 22 58 48 6,28
11.6570278 19 14 567 27 69 57 8,9
11.6570281 22 19 760 30 79 66 11,88
11.6514160 26 26,5 1 060 35 94 78 16,18
