Green Pin

The sling hook can be used for general lifting applications. It can be quickly connected to the load lifting points thanks to its easy operating latch, which guarantees full safety. To connect simply push the latch, connect the hook to the lifting point, and release the latch. The forged latch guarantees a longer lifespan. It strongly limits the risk that the operator uses the hook without latch. The latch is fitted with a stainless steel spring and a sturdy pin. The clevis design enables a direct connection to grade 10 chain. The Green Pin® Sling Hook CL is available in a range to suit 6 mm up to 20 mm grade 10 chain.

Certification: at no extra charge this product can be supplied with a works certificate, a 3.1 material certificate and/or EC Declaration of Conformity

  • Material: alloy steel, grade 10, quenched and tempered
  • Finish: painted blue
  • Safety factor: 4:1
  • Grade: 10
Select a row from the table below, then click the add to quote button

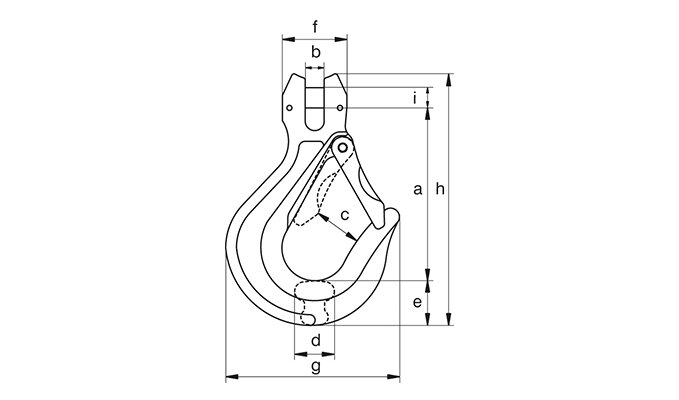

Part Code WLL
ton
For chain diameter inch for chain ø
mm
a
mm
b
mm
c
mm
d
mm
e
mm
f
mm
g
mm
h
mm
i
mm
Weight
kg
CAD
11.10GPUCSC6 1,4 7/32 6 75 7 26 15 20 28 72 108 8 0,29
11.10GPUCSC68 2,6 5/16 8 95 9 30 20 24 32 87 136 10 0,58
11.10GPUCSC10 4 3/8 10 113 12 33 24 29 42 106 164 13 1,11
11.10GPUCSC13 6,8 1/2 13 138 15 37 32 39 54 133 208 16 2,12
11.10GPUCSC16 10,3 5/8 16 161 19 44 40 44 68 165 240 20 3,78
