General:
Capacity 750 - 6000 kg
Further technical development turns the ratchet lever hoist into the successor of our proven UNO model. The versatile tool for lifting, pulling and securing of loads is characterised by its compact design and robust stamped steel construction.

Features:
· Due to optimized gearing and improved bearings in the housing cover a minimum effort is required to operate the short hand lever.
· Steel hand wheel as standard.
· Automatic screw-and-disc type load brake with corrosion protected components.
· Standard free chaining device to quickly attach the load or to pull the chain through the hoist in both directions.
· Robust chain guide rollers eliminate fouling and jamming of chain on the load sheave.
· Sturdy bottom block with encapsulated bolt connections
· Alloyed steel link chain with zinc-plated resp. yellow chromated finish, in accordance with national and international standards and regulations.
· Drop forged suspension and load hooks are made from non-aging, high tensile steel and fitted with robust safety latches.

Option:
· Explosion proof version


Yale hoists and trolleys are not designed for passenger elevation applications and must not be used for this purpose.
  • Note: All ratchet lever hoists with a capacity exceeding 750 kg can be used for load attachment according to EN 12195.

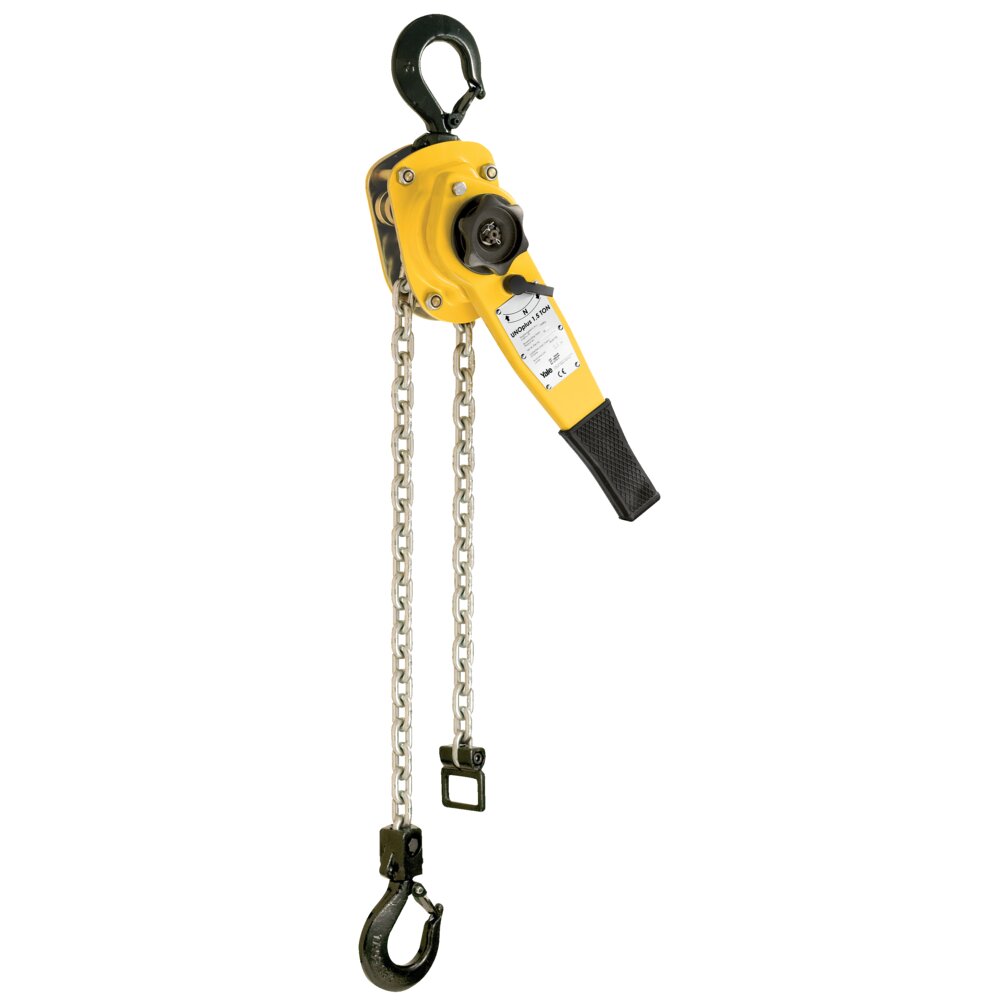

Yale UNOplus

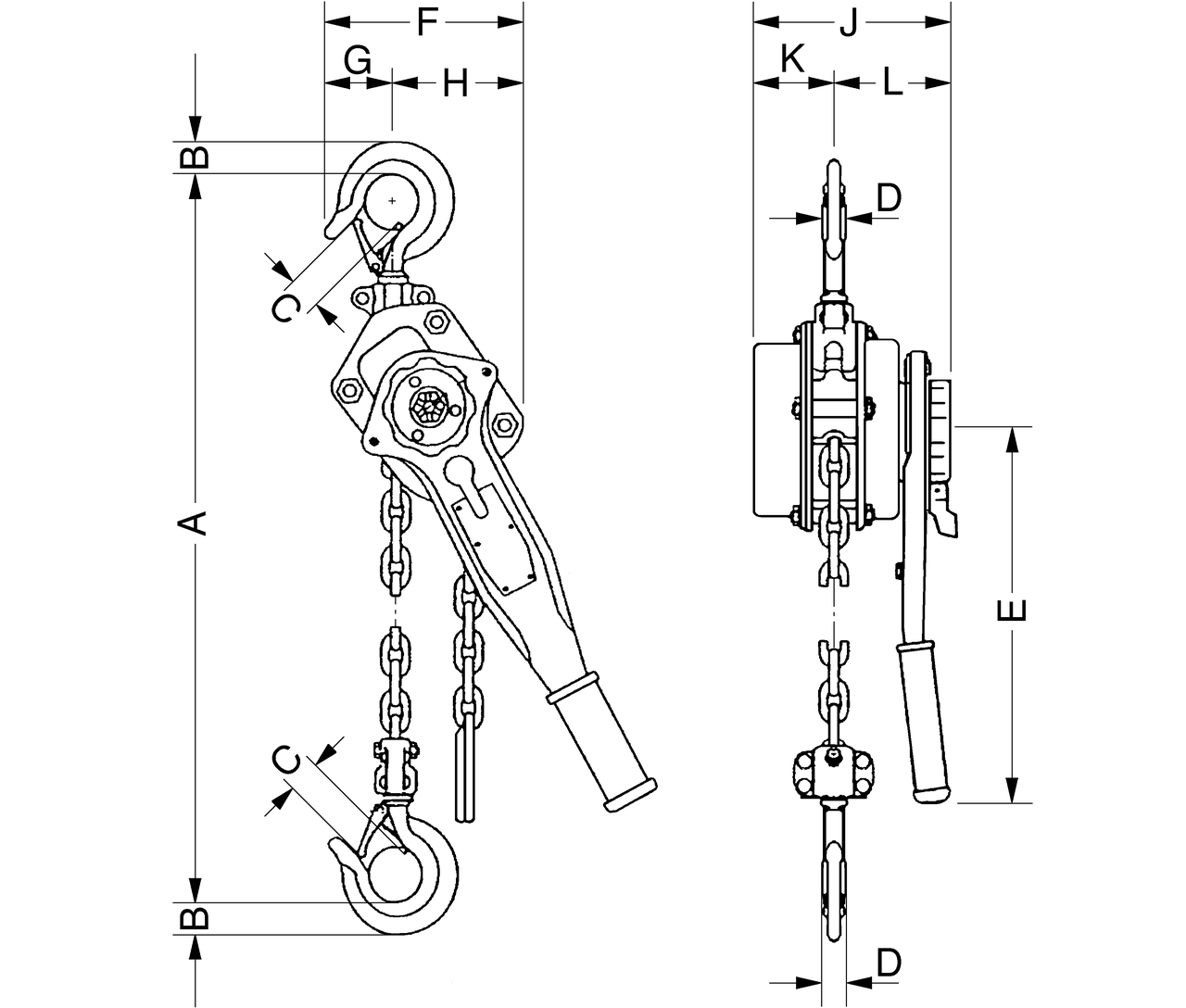

Yale UNOplus drawing
Select a row from the table below, then click the add to quote button
Model Capacity
kg
Number of falls EAN-No. 4025092* Lift with one full lever turn
mm
Handle pull at WLL
daN
Chain dimensions d x p
mm
Weight at standard lift (1.5 m)
kg
CAD
UNOplus 750 750 1 *168342 20 20 6 x 18 7,2
UNOplus 1500 1 500 1 *168359 22 35 8 x 24 12,5
UNOplus 3000 3 000 1 *168366 17 40 10 x 30 21,5
UNOplus 6000 6 000 2 *168380 9 40 10 x 30 32,0
