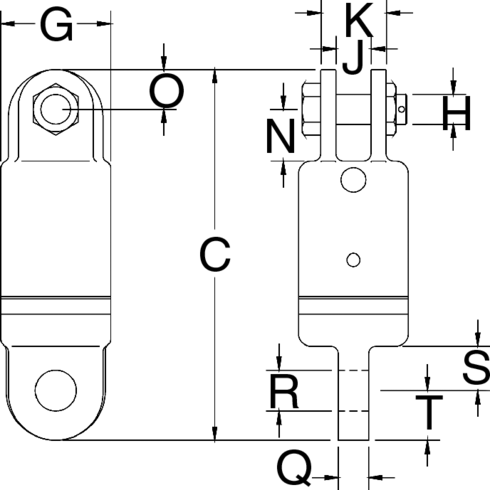

Design: Swivel with jaw and eye equipped with tapered roller thrust bearing.
- Suitable for frequent rotation under load.
- All swivels individually Proof Tested to 2 times the Working Load Limit.
- Pressure lube fitting provided
- All jaws complete with bolts, nuts and cotter pins.
- Other types and capacities up to 1250t available on demand.
- Marking: CE-marked
- Note: Always check before use if your steel wire rope is suitable for use with a swivel.
- Warning: Not to be used on demolition- (wrecking-) balls!
- Safety factor: 5:1
Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.
To download CAD files, you must provide a valid e-mail address
