General:
- Ball swivel with roller thrust bearing, grease lubricated.
- Ball swivel for higher WLL and of higher weights available on request.
- Hole can be made larger on request.
- On request, swivels can be made suitable for subsea use.
- SF: 4:1

    • Safety factor: 4:1

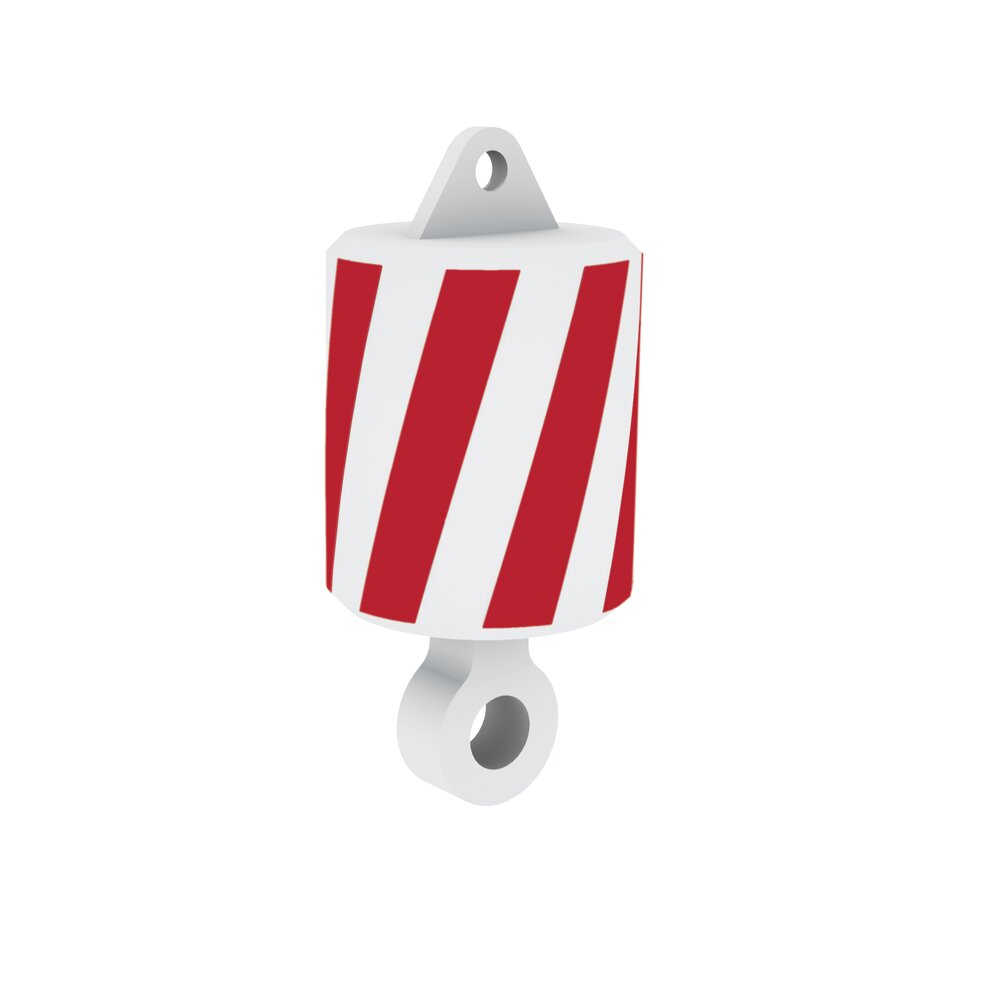

    Product Picture 1
    Product Picture 2
    Select a row from the table below, then click the add to quote button

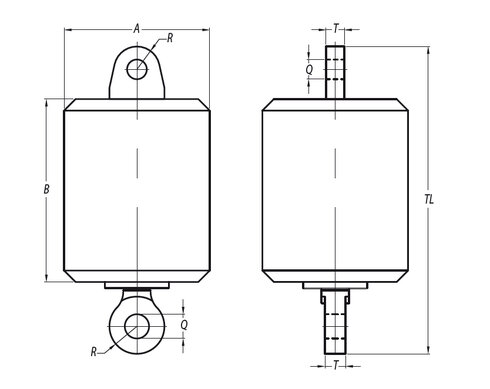

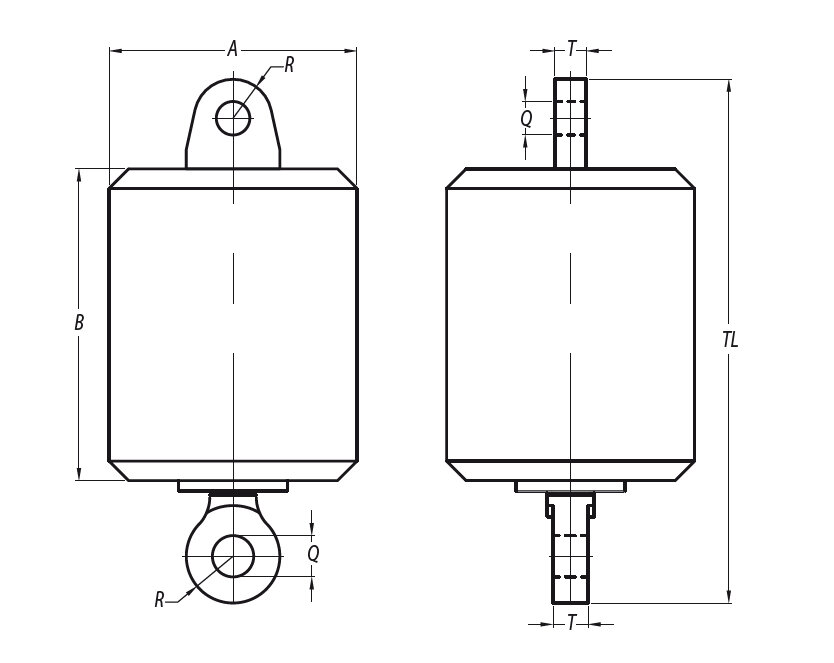

    Part Code WLL
    ton
    Type A
    mm
    B
    mm
    Q
    mm
    R
    mm
    T
    mm
    TL
    mm
    Weight
    kg
    10.9956002000333 145 eye - eye 145 145 Ton 27 30 22 300 20
    10.9956002000533 145 eye - eye 145 145 Ton 32 35 28 320 20
    10.9956004000533 190 eye - eye 170 190 Ton 32 35 28 365 40
    10.9956004000833 190 eye - eye 170 190 Ton 37 45 35 405 40
    10.9956004501033 190 eye - eye 170 190 Ton 43 50 40 435 45
    10.9956004501333 190 eye - eye 170 190 Ton 52 60 45 475 45
    10.9956005001633 190 eye - eye 170 190 Ton 59 70 50 525 50
    10.9956010502033 265 eye - eye 250 265 Ton 65 75 60 630 105
    10.9956011002533 265 eye - eye 250 265 Ton 72 80 70 660 110
    10.9956012503533 265 eye - eye 250 265 Ton 79 90 70 685 125
    10.9956014005533 265 eye - eye 250 265 Ton 92 105 80 760 140
    10.9956020007033 330 eye - eye 300 330 Ton 98 120 90 885 200
    10.9956022508533 330 eye - eye 300 330 Ton 111 135 100 965 225
    10.9956050012033 430 eye - eye 380 430 Ton 100 125 130 1 020 500
    10.9956060015033 450 eye - eye 400 450 Ton 115 140 150 1 110 600
    10.9956080020033 480 eye - eye 460 480 Ton 140 170 160 1 265 800
    10.9956100025033 600 eye - eye 500 600 Ton 150 185 180 1 455 1 000
    10.9956150030033 670 eye - eye 580 670 Ton 160 200 190 1 590 1 500
