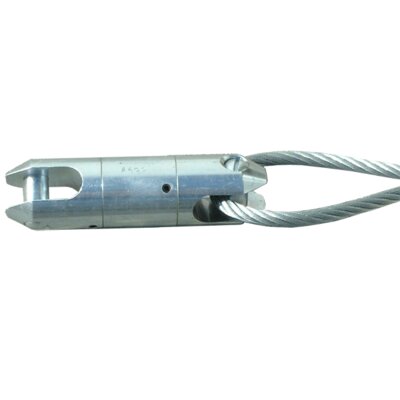

General: Swivel used to connect cablegrips.
Select a row from the table below, then click the add to quote button
Part Code Code Diameter
mm
Length
mm
MBL daN Fork dimension
mm
Weight
10.42EMRC14 EMRC14 14 61 1 650 6 0,075
10.42EMRC16 EMRC16 16 70 1 700 8 0,1
10.42EMRC22 EMRC22 22 88 4 600 10 0,23
10.42EMRC34 EMRC34 34 122 6 000 16 0,52
10.42EMRC38 EMRC38 38 122 9 000 16 0,69
10.42EMRC40 EMRC40 40 120 12 000 15 0,9
10.42EMRC45 EMRC45 45 165 19 000 20 1,5
10.42EMRC50 EMRC50 50 180 24 500 22 2,3
10.42EMRC60 EMRC60 60 230 39 500 26 3,1
