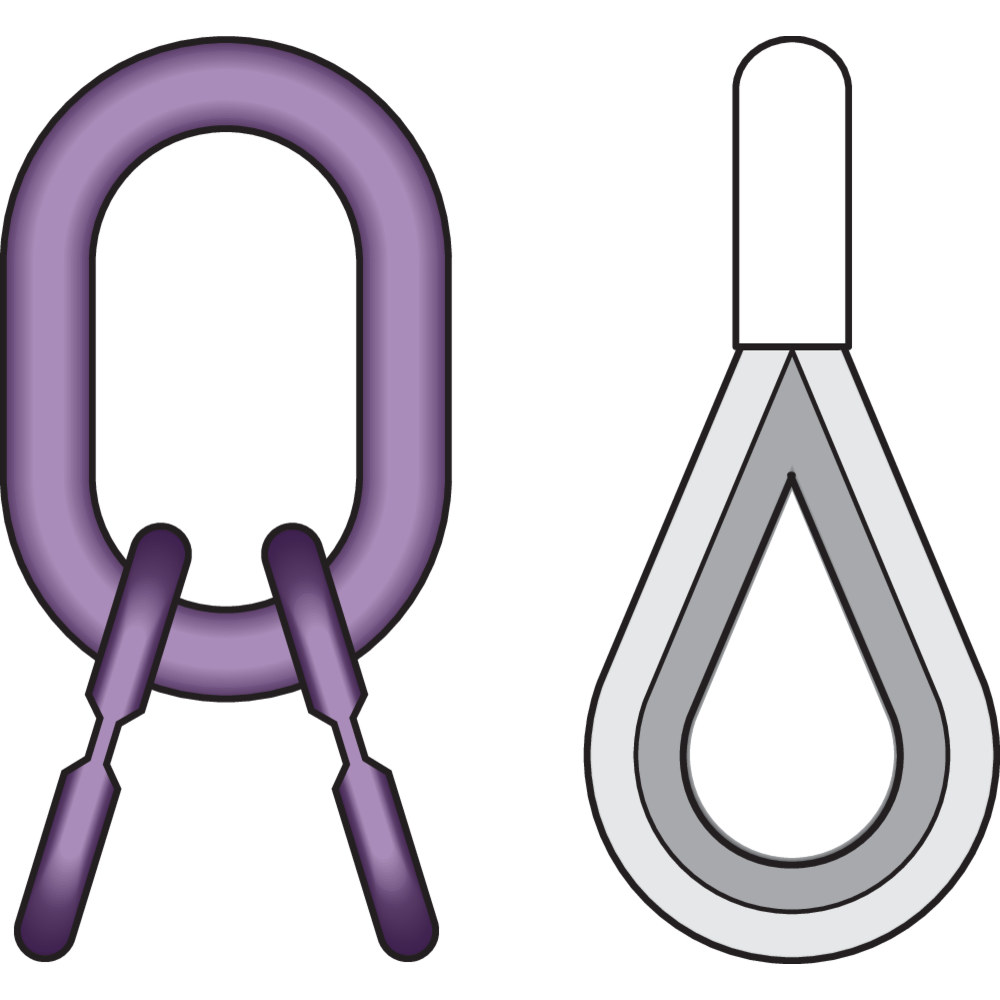

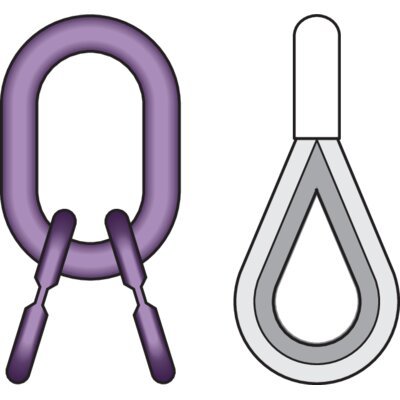

Design: Master link in one end and thimble in each leg.


Select a row from the table below, then click the add to quote button
|
|

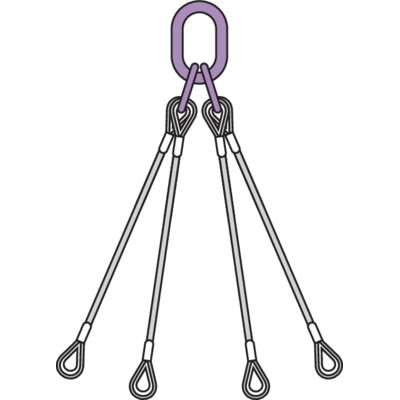

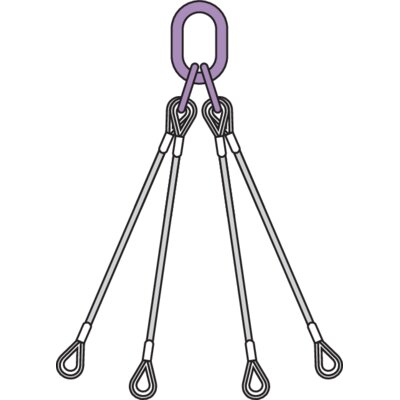

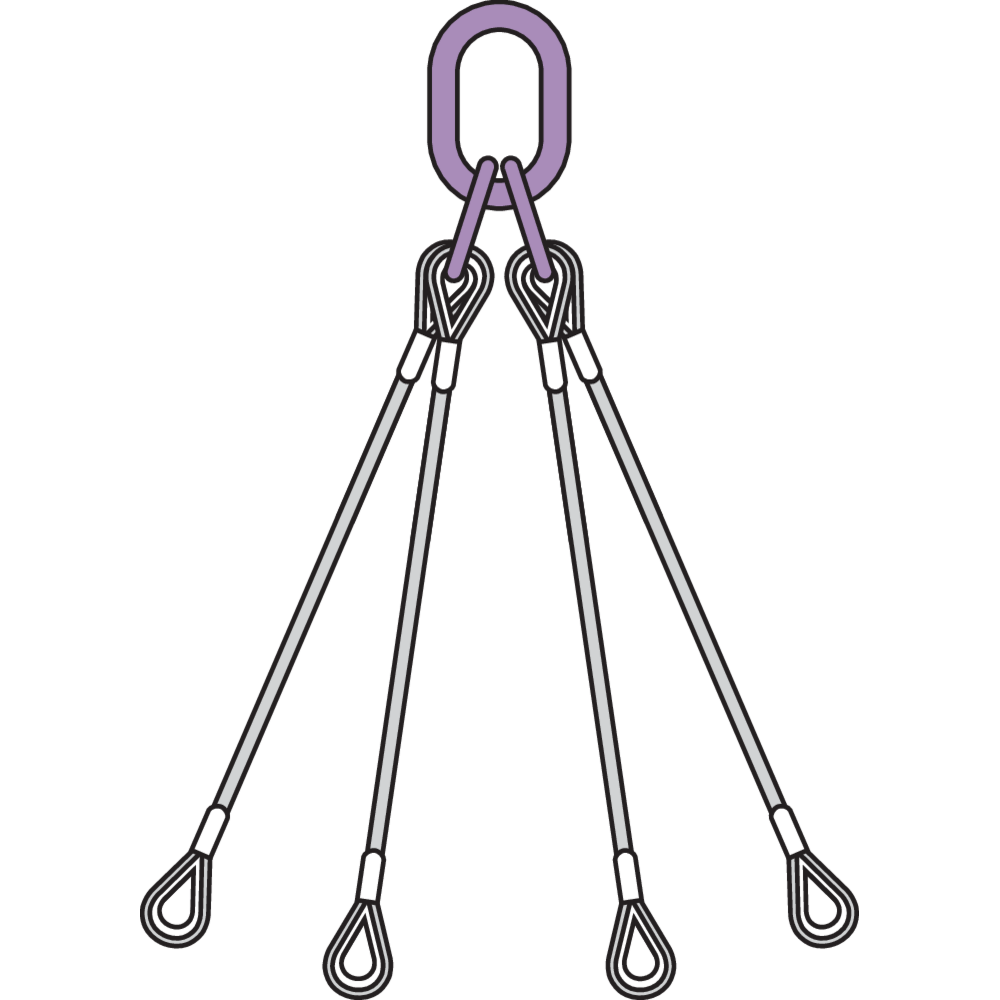

3- 4-part fibre core - 1960 N/mm²
Rope
|
Working load limit (WLL) in tons*
|
|
||
Ø
|
|
|
||
mm |
0°-45°
|
45°-60°
|
||
3
|
0,21
|
0,15
|
||
4
|
0,38
|
0,27
|
||
5
|
0,57
|
0,4
|
||
6
|
0,84
|
0,6
|
||
7
|
1,130
|
0,825
|
||
8
|
1,6
|
1,1
|
||
9
|
2
|
1,4
|
||
10
|
2,5
|
1,8
|
||
11
|
3
|
2,2
|
||
12
|
3,6
|
2,6
|
||
13
|
4,2
|
3
|
||
14
|
4,8
|
3,5
|
||
16
|
6,3
|
4,5
|
||
18
|
8
|
5,7
|
||
20
|
10
|
7,1
|
||
22
|
12
|
8,5
|
||
24
|
14,3
|
10,2
|
||
26
|
16,8
|
12
|
||
28
|
19,5
|
14
|
||
32
|
25,5
|
18
|
||
36
|
32
|
23
|
||
40
|
40
|
28,5
|
||
44
|
48
|
34
|
||
48
|
57
|
41
|
||
52
|
67
|
48
|
||
56
|
78
|
56
|
||
60
|
90
|
64
|
||
68
|
115
|
82
|
||
71
|
126
|
90
|
||
Factor (KL)
|
2,1
|
1,5
|
||
* When using a multi-leg sling in a choker hitch - reduce the value with 20%.
Other dimensions on request. |
|
|
3- 4 part steel core - 1770 N/mm²
Rope
|
Working load limit (WLL) in tons*
|
|
||
Ø
|
|
|
||
mm |
0°-45°
|
45°-60°
|
||
3
|
0,21
|
0,15
|
||
4
|
0,36
|
0,25
|
||
5
|
0,56
|
0,41
|
||
6
|
0,8
|
0,57
|
||
7
|
1,1
|
0,8
|
||
8
|
1,55
|
1,1
|
||
9
|
2
|
1,4
|
||
10
|
2,4
|
1,7
|
||
11
|
3
|
2,12
|
||
12
|
3,55
|
2,5
|
||
13
|
4,15
|
3
|
||
14
|
4,8
|
3,4
|
||
16
|
6,3
|
4,5
|
||
18
|
7,8
|
5,65
|
||
20
|
9,8
|
6,9
|
||
22
|
11,8
|
8,4
|
||
24
|
14
|
10
|
||
26
|
16,5
|
11,5
|
||
28
|
19
|
13,5
|
||
32
|
25
|
17,5
|
||
36
|
31,5
|
22,5
|
||
40
|
39
|
28
|
||
44
|
47
|
33,5
|
||
48
|
55
|
40
|
||
52
|
66
|
47
|
||
56
|
76
|
54
|
||
60
|
88
|
63
|
||
Factor (KL)
|
2,1
|
1,5
|
||
* When using a multi-leg sling in a choker hitch - reduce the value with 20%.
Other dimensions on request. |
|
|
3- 4-part steel core - 1960 N/mm²
Rope
|
Working load limit (WLL) in tons*
|
|
||
Ø
|
|
|
||
mm |
0°-45°
|
45°-60°
|
||
3
|
0,23
|
0,16
|
||
4
|
0,4
|
0,28
|
||
5
|
0,63
|
0,45
|
||
6
|
0,9
|
0,65
|
||
7
|
1,2
|
0,88
|
||
8
|
1,7
|
1,2
|
||
9
|
2,2
|
1,8
|
||
10
|
2,7
|
1,9
|
||
11
|
3,3
|
2,3
|
||
12
|
3,9
|
2,8
|
||
13
|
4,5
|
3,2
|
||
14
|
5,3
|
3,8
|
||
16
|
6,9
|
4,9
|
||
18
|
8,7
|
6,2
|
||
20
|
10,7
|
7,7
|
||
22
|
13
|
9,3
|
||
24
|
15,5
|
11,1
|
||
26
|
18,2
|
13
|
||
28
|
21
|
15
|
||
32
|
27,5
|
19,7
|
||
36
|
35
|
25
|
||
40
|
43
|
31
|
||
44
|
52
|
37
|
||
48
|
62
|
44
|
||
52
|
73
|
52
|
||
56
|
84
|
60
|
||
60
|
97
|
69
|
||
Factor (KL)
|
2,1
|
1,5
|
||
* When using a multi-leg sling in a choker hitch - reduce the value with 20%.
Other dimensions on request. |
|
|
