Steel Wire Rope 6x12-7FC

  • Not for lifting
  • Ordinary right hand lay
  • Galvanized

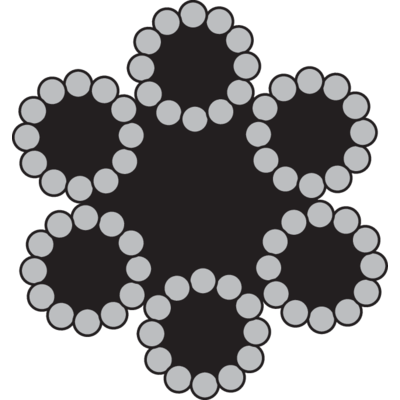

  • Rope construction: 6x12-7FC
  • Fill factor: 0.30
Steel Wire Rope 6x12-7FC Steel wire rope 6x12+7FC
Select a row from the table below, then click the add to quote button
Part Code Rope diameter
mm		 Steel Area
mm²		 Min. breaking force
kN
1770 N/mm²		 Weight
kg/100m
01.G10072030E 3 2,09 3,33 2,1
01.G10072040E 4 3,71 5,92 3,7
01.G10072050E 5 5,8 9,25 5,8
01.G10072060E 6 8,35 13,3 8,3
01.G10072070E 7 11,4 18,1 11
01.G10072080E 8 14,8 23,7 15
01.G10072100E 10 23,2 37 23
01.G10072120E 12 33,4 53,3 33
