Samson wire rope blocks 3 sheave - Mennens Netherlands

Home / Products / STEEL WIRE & FIBRE-ROPES / Wire rope accessories / Sheaves & blocks / Samson wire rope blocks 3 sheave

General:
- Up to 30 ton blocks standard supplied with swivel oval eye.
- Over 30 ton blocks standard supplied with swivel stud eye.
- Blocks can be supplied with swivel hook, swivel stud eye or swivel jaw on request.
- Standard supplied with bronze bearings. Other bearings available on request.
- Groove in sheave may be adjusted to other wire rope diameters on request.
- Blocks can be supplied with becket on request.

Temperature range: -40°C / +80°C
Note: WLL= Working Load Limit on head fitting

Safety factor: 4:1

Select a row from the table below, then click the add to quote button

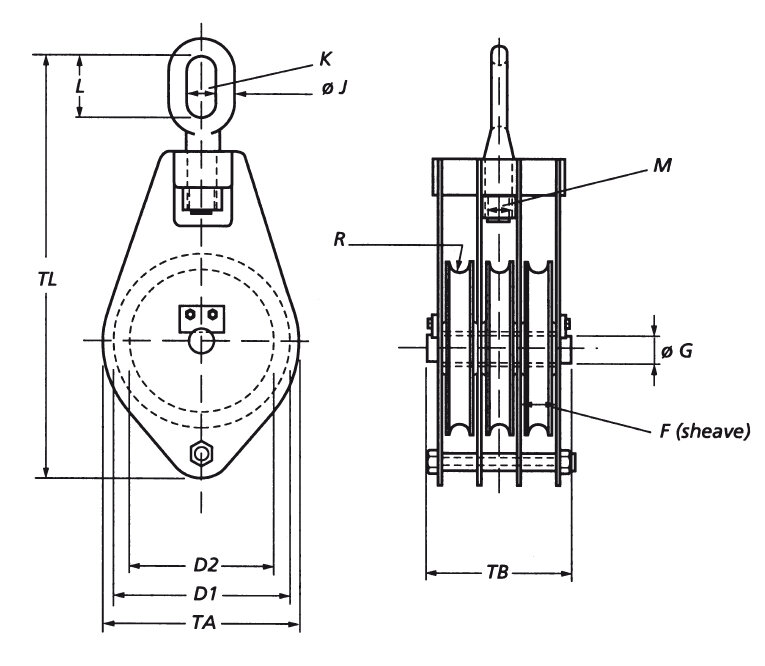

Part Code	WLL ton	For wire Ø mm	No of Sheav.	D1 mm	D2 mm	F mm	Ø G mm	Ø J mm	K mm	L mm	M mm	R mm	TA mm	TB mm	TL mm	Weight kg
16.13111250230	2	10	3	125	105	27	22	16	26	58	24	5,5	135	120	336	9
16.13111500430	4	12	3	150	120	40	30	26	40	94	33	6,5	170	166	468	17
16.13112000630	6	14	3	200	165	40	30	29	45	108	42	7,5	220	166	556	28
16.13112500830	8	18	3	250	210	45	35	32	49	114	45	9,5	270	185	633	46
16.13113001030	10	20	3	300	255	50	40	36	54	125	52	11	320	204	733	69
16.13113501230	12	22	3	350	305	50	45	41	60	144	56	12	380	212	823	99
16.13113501630	16	24	3	350	305	60	50	46	66	163	64	13	380	258	880	120
16.13114001630	16	24	3	400	345	60	50	46	66	163	64	13	430	250	927	157
16.13113502030	20	24	3	350	305	60	50	51	72	173	72	13	380	258	896	143
16.13114002030	20	24	3	400	345	60	60	51	72	173	72	13	430	266	1 006	184
16.13113502530	25	24	3	350	305	60	50	60	80	195	76	13	380	266	955	170
16.13114002530	25	24	3	400	345	60	60	60	80	195	76	13	430	266	1 065	198
16.13114502530	25	28	3	450	390	70	70	60	80	195	76	15	480	296	1 120	220
16.13114003030	30	28	3	400	345	60	60	60	90	220	80	15	430	266	1 095	215
16.13114503030	30	28	3	450	390	70	70	60	90	220	80	15	480	296	1 140	255
16.13114004030	40	28	3	400	345	60	60	-	96	96	90	15	430	278	945	250
16.13114504030	40	28	3	450	390	70	70	-	96	96	90	15	480	308	1 030	295
16.13114505030	50	28	3	450	390	70	75	-	106	106	100	15	480	338	1 055	335

WLL= Working Load Limit on head fitting

Download CAD

Download CAD by choosing the desired product from the table above and the format from the menu below. Click "Get CAD" and after the load reaches 100% you can click on the download icon to download it. Please note that CAD drawings are only available if the icon at the right side of the table above is colored and not grayed out.

Get CAD

Download
