General:
- Up to 30 ton blocks standard supplied with swivel oval eye.
- Over 30 ton blocks standard supplied with swivel stud eye.
- Blocks can be supplied with swivel hook, swivel stud eye or swivel jaw on request.
- Standard supplied with bronze bearings. Other bearings available on request.
- Groove in sheave may be adjusted to other wire rope diameters on request.
- Blocks can be supplied with becket on request.

  • Temperature range: -40°C / +80°C
  • Note: WLL= Working Load Limit on head fitting.
  • Safety factor: 4:1
Product Picture 1
Product Picture 2
Select a row from the table below, then click the add to quote button
Part Code WLL
ton
For wire Ø
mm
No of Sheav. D1
mm
D2
mm
F
mm
Ø G
mm
Ø J
mm
K
mm
L
mm
M
mm
R
mm
TYA
mm
TB
mm
TL
mm
Weight
kg

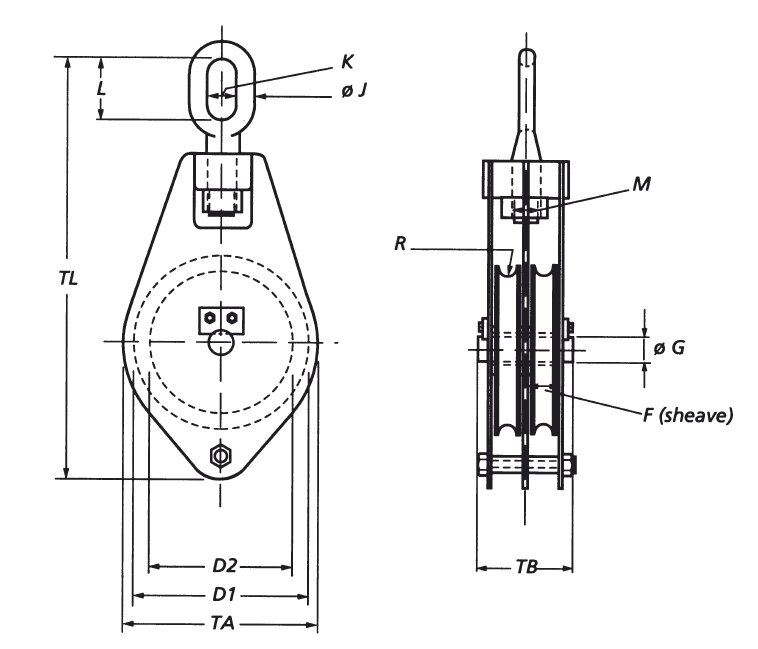

CAD
16.13111000120 1 8 2 100 80 20 15 16 26 58 18 4,5 110 70 295 4
16.13111250220 1,5 10 2 125 105 27 22 16 26 58 24 5,5 135 85 336 6
16.13111500320 3 12 2 150 120 40 30 21 32 72 30 6,5 170 120 430 11
16.13112000420 4 14 2 200 165 40 30 26 40 94 33 7,5 220 120 538 18
16.13112500620 6 18 2 250 210 45 35 29 45 108 42 9,5 270 133 624 32
16.13113000820 8 20 2 300 255 50 40 32 49 114 45 11 320 146 713 43
16.1311.501020 10 22 2 350 305 50 45 36 54 125 52 12 380 152 569 74
16.13113501220 12 22 2 350 305 60 50 41 60 144 56 12 380 186 821 81
16.13114001220 12 24 2 400 345 60 50 41 60 144 56 13 430 180 893 102
16.13113501620 16 22 2 350 305 60 50 46 66 163 64 12 380 186 879 98
16.13114001620 16 24 2 400 345 60 60 46 66 163 64 13 430 192 959 126
16.13113502020 20 22 2 350 305 60 50 51 72 173 72 12 380 186 896 116
16.13114002020 20 24 2 400 345 60 60 51 72 173 72 13 430 192 976 146
16.13114002520 25 24 2 400 345 60 60 60 80 195 76 13 430 192 1 065 169
16.13114502520 25 28 2 450 390 70 70 60 80 195 76 15 480 221 1 120 190
16.13114003020 30 24 2 400 345 60 60 60 90 220 80 13 430 192 1 095 184
16.13114503020 30 28 2 450 390 70 70 60 90 220 80 15 480 236 1 150 204
16.13114504020 40 28 2 450 390 70 70 - 96 96 90 15 480 236 1 030 225
