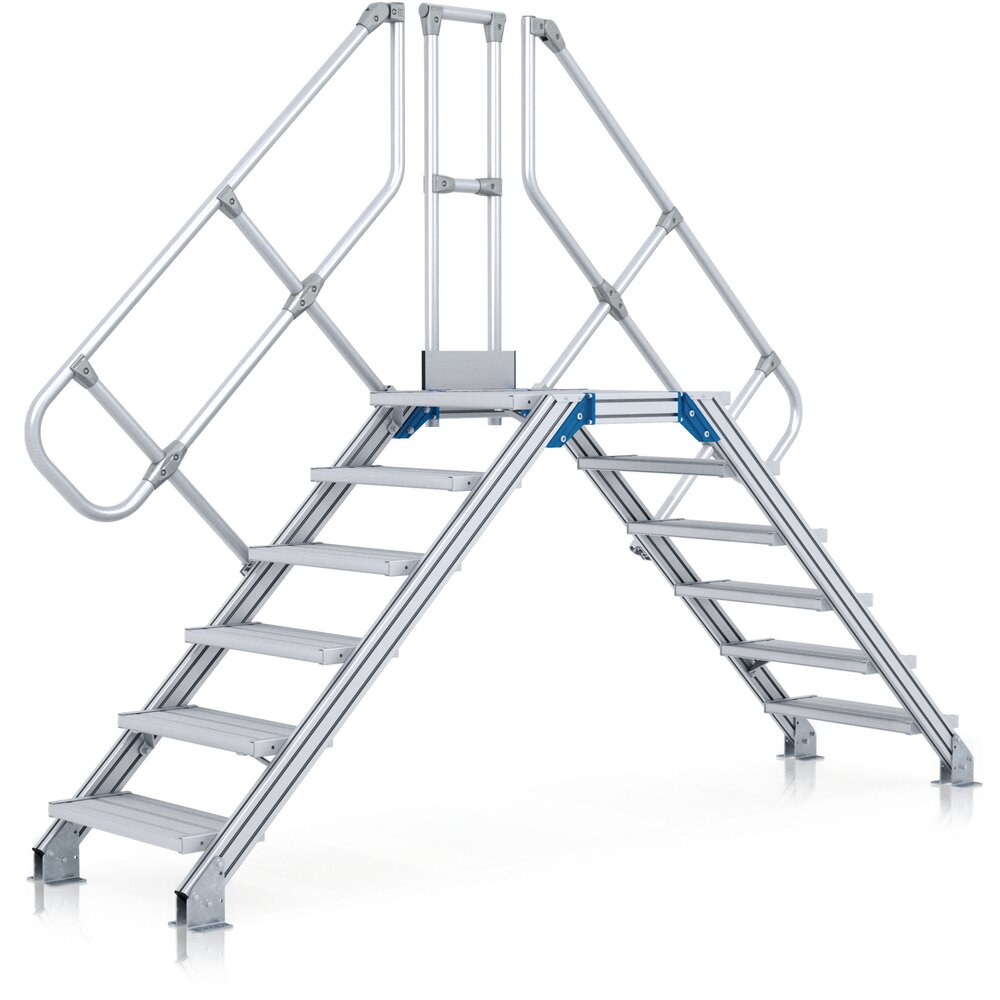

CREAXESS Stationary bridging steps

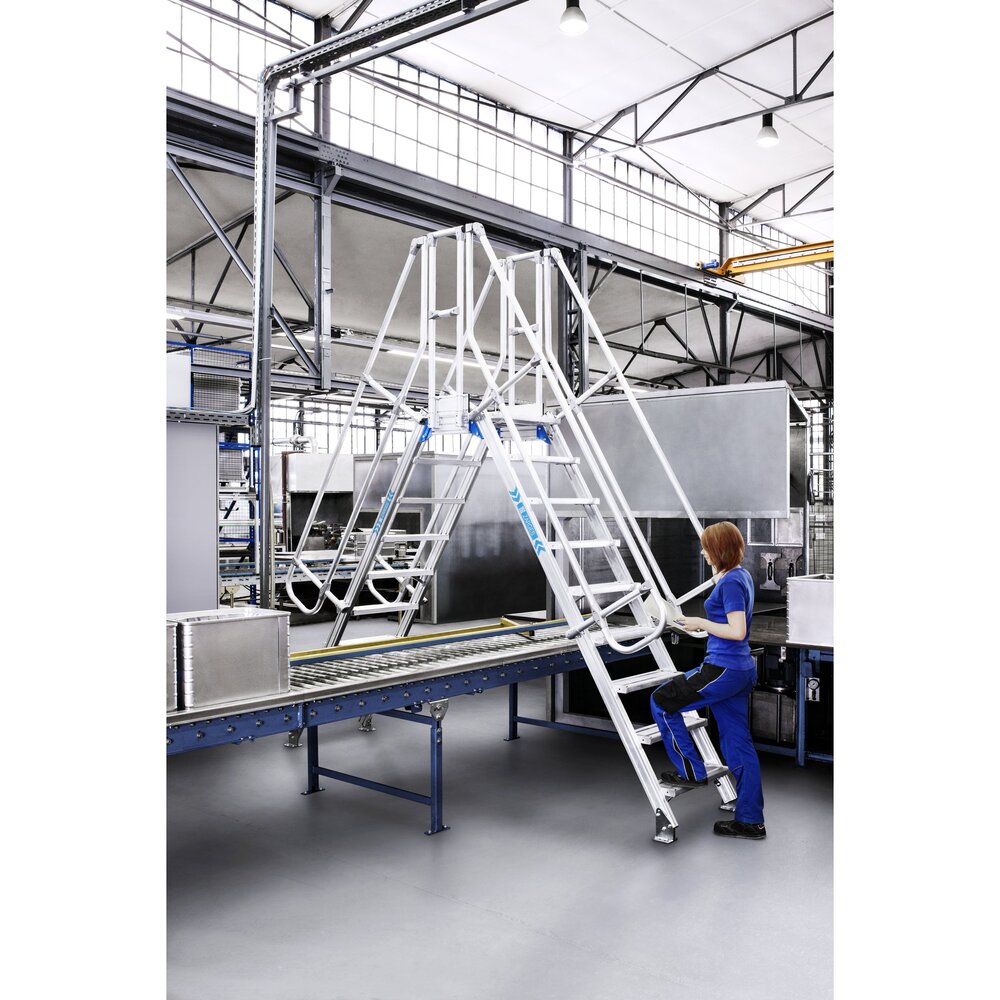

Stationary or mobile platform for bridging obstacles or as a work platform with access from both sides. Large-area platform with guardrail for safe and ergonomic working at heights.

Features and benefits:

  • Selection of tread widths 600 mm, 800 mm or 1000 mm.

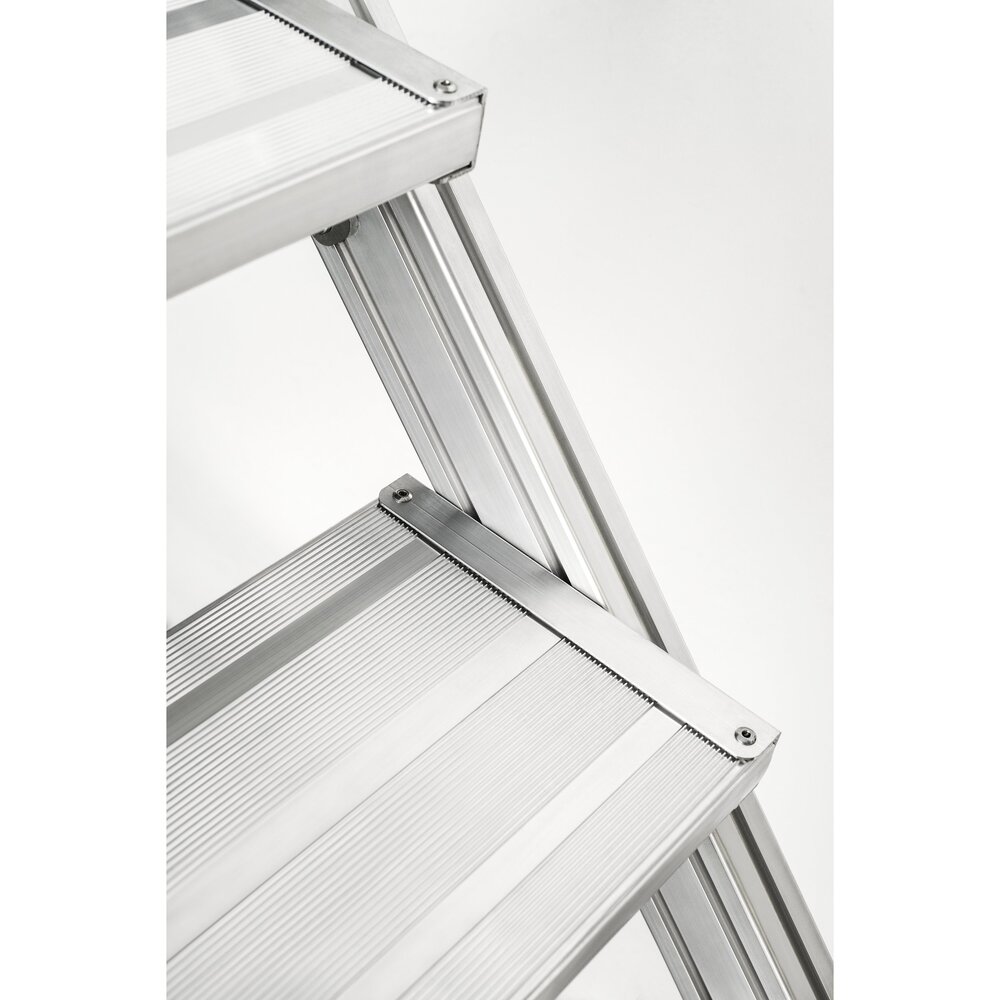

  • Serrated aluminium (R10) step and platform surfaces as standard. Steel gratings (R12) and perforated steel plates (R13) are also available for higher non-slip performance.
  • Individually adjustable platform lengths.
  • Optionally with chassis for mobile applications.
  • Customised guardrail configuration on the platform, with optional swing door or pole barrier.
  • Maximum flexibility with optional handrails and guardrails which can be removed without tools.
  • Quick and simple assembly with the ZARGES connection system with a high level of pre-assembly.
  • Different angles of inclination: 45° for comfortable access, 60° for confined spaces.


Note:

  • We recommend equipping the product in accordance with the German Equipment and Product Safety Act (ProdSG) with two-sided handrails and, for steps with platforms or maintenance platforms, all-round fall protection (e.g. guardrails). If handrails or guardrails are not desired, the operator must ensure sufficient regulatory protection.
  • Standard applied: DIN EN ISO 14 122
